Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
3437798
Bob Shop ID
611617820

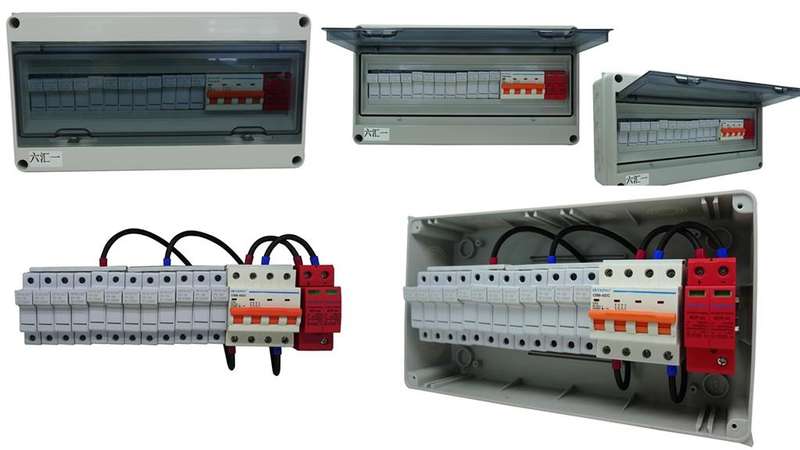

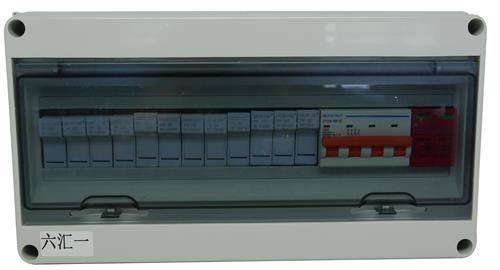

Solarix Solar PV String Combiner Box - 6 String Input 1 String Output, 12 x PV DC Fuse Holder with Fuse 30A 1000VDC, 4 Pole DC Breaker 63A 1000V, 2 Pole DC Surge Protector 1000VDC, Retail Box, No warranty

Product Overview
The Solarix PV combiner boxes should be installed in any solar installation for off-grid, grid-tie, and hybrid photovoltaic installations. The users/installers have a safe access point to measure and monitor the performance of their solar panels.

Features
Lightning protection on the DC side
Overvoltage and Over Current protection
DC breaker isolator.
Fuse installation on the positive and negative terminal of the solar panel.
The enclosure is IP65 protected and can be installed indoor or outdoor.
Notice: Please check the nominal operating voltage of your solar panels in series. There are 4 classifications for MPPT voltage in the solar industry: 100V, 150V, 500V, 1000V. A solar installation will not be protected if the PV string voltage is 145V for example but the selected surge protection device is 500V.

Specifications
Stock Code: SOLCOM6IN1OUT
Description: Solarix Solar Panel PV Combiner Box 6in 1out
Input 6 strings
Output 1 strings
PV DC Fuse Holder with Fuse x 12
DC Breaker 63A 1000V 4 Pole x 1
DC Surge Protector 1000V 2 Pole x 1
Maximum Voltage 1000V
Max DC short circuit current 30A
Maximum Current Output 63A DC breaker
