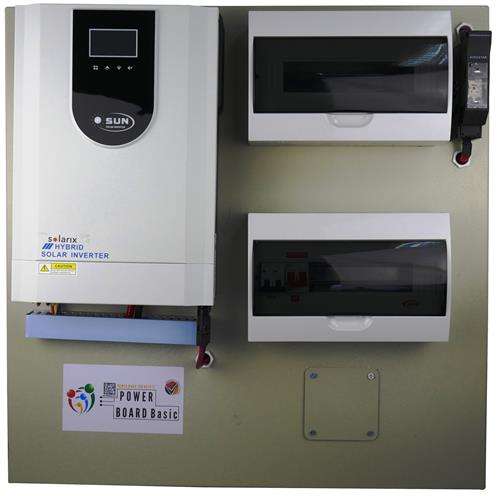

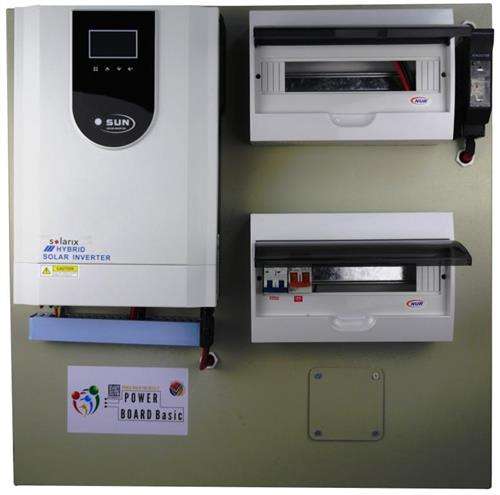

Solarix Sun 6.5KVA 48VDC 120A High Voltage Inverter And Semi Plug And Play Power Board Solution

Solarix Sun 6.5KVA 48VDC 120A High Voltage Inverter And Semi Plug And Play Power Board Solution High Voltage 120A MPPT Solar Charge Controller, 6200w Rated Output Power, Nominal PV DC Voltage 360VDC, Maximum PV DC Voltage 500VDC, Input Voltage 230VAC, Maximum Input Current 40A, Maximum Charge Current 100A, Maximum Battery Current 125A, AC/DC Ready DB Board with 40A AC UPS Changeover and is DC Solar Ready, A/C Input Circuit Breaker for AC Protection, DB Board is Pre Wired to Inverter (AC and DC Sides), Wall Bracket Included, Retail Box, 12 Months Warranty

Product Overview
The Solarix Sun 6.5KVA 48VDC 120A High Voltage Inverter And Semi Plug And Play Power Board Solution combination has been ben developed with a Team Of System Engineers , and Electricians as a Semi Plug And Play Power Solution for Homes Or Businesses Like No Other In The Market Today. This Inverter System And Semi Plug And Play Power Board Solution is pre-wired to the DB Board and tested at the factory, thus taking the complexity of installing an inverter system the normal way. Only 4 wires have to be connected to the on-premises DB Board that saves the Installer about 8 hours of installation / configuration time and provides a better than PERFECT finish. Any type of Battery System can be utilised i.e. 4 x Gel AGM / Acid or 48V Lithium battery pack. Unit is 100% Solar Ready (Pre-Wired)

Please Note: Batteries, Solar PV Panels And Accessories Are Not included and need to be purchased separately.

Highlights
6.5KVA / 48V Solarix Sun Pure Sine Wave Inverter
Wall Mount Semi Plug And Play Power Board Solution
Save About 8 Hours Of Installation / Configuration Time
High Voltage 120A MPPT Solar Charge Controller
6200w Rated Output Power
Maximum Charge Current 100A

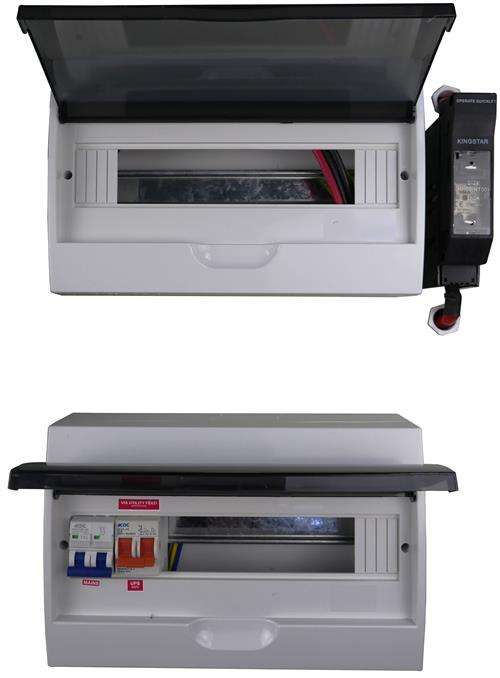

AC/DC Ready DB Board with 40A AC UPS Changeover
A/C Input Circuit Breaker for AC Protection
DB Board is Pre Wired to Inverter (AC and DC Sides)
DC Disconnect Fuse for DC Protection
Unit is 100% Solar Ready (Pre-Wired)
Supports Any Type of Battery i.e. 4 x Gel AGM / Acid or 48v Lithium battery pack
Wall Bracket Included

Specifications
Stock Code SOLPBMES55KVA
Description Solarix Sun 6.5KVA 48VDC 100A Inverter And Power Board Solution
Wall Mounted Semi Plug And Play Power Board Solution
A/C Input Circuit Breaker for AC Protection
40A AC Change Over Switch
DB Board is Pre Wired to Inverter (AC and DC Sides)
DC Disconnect Fuse for DC Protection

What's in the box
1 x Solarix Sun 6.5kVA 48VDC Inverter and Semi Plug And Play Power Board Solution
