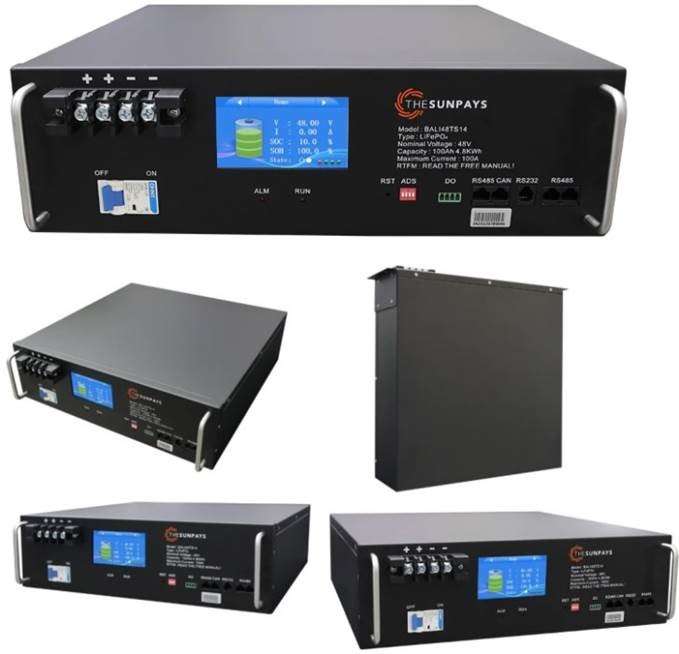

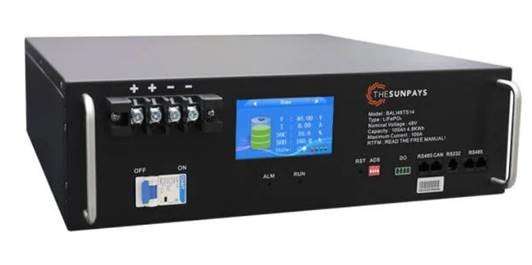

Solarix SunPays 48V 100Ah LiFePo4 Single Battery Module- Touch Screen Control Panel, Intelligent Battery Management System, Normal Voltage 48V, Rated Capacity Typical 105Ah, Total Usable 4.8 kWh, Mean Operation 48.0 to 49.5 V, Charging voltage 51.6 V, Standard Continuous Charge Current 20A to 40A, Maximum Continuous Discharge Current 100A, 19 inch Rack Mount Chassis, Design To Work Perfectly Hybrid Invertors Up To 7KVA 48V, Retail Box , 1 year Limited Warranty
Product Overview
The Solarix SunPays 48V 100Ah LiFePo4 Single Battery Module- is perfect for medium to large residential installation with a Lithium-ion battery solution with a proven Lithium Iron Phosphate (LifePO4) chemical composition and great performance. Design To Work Perfectly with Hybrid Invertors Up To 7KVA 48V. Standard 19-Inch Rack Mount Embedded designed module for installation and maintenance. Built-in Intelligent Battery Management System (BMS) with RS485 and CAN Bus BMS communication.
Please Note This is unit is designed for single use but can also be connected in Parallel with up to 15 battery packs to a total of 72kWh. Batteries must be connected in parallel if more than one LiFePO4 battery is to be used. Care should be given for cable sizes and copper busbars should be used if large currents is drawn
Highlights
Solarix SunPays 48V 100Ah Lithium Iron Phosphate (Lifepo4) Single Battery Module
Intelligent Battery Management System with RS485 and CAN Bus BMS communication
Design To Work Perfectly Hybrid Invertors Up To 7KVA 48V
Battery Cycle Life 3500 @ 80% DOD, 25C 1C (100A)
Normal Voltage 48V
Typical Rated Capacity: 105Ah
Total Usable Energy 4.8KWh
Maximum Continuous Charge Current 100A (controlled by BMS if comm. used)
Maximum Continuous Discharge Current 100A
Easy To Install 19 Inch Rack Mount Chassis
Can also be connected in Parallel with up to 15 battery packs to a total of 72kWh
BMS communication compatible with Following Inverters
Sacolar Inverters , Growatt Inverters, SunPays 5.5kW Inverters, SunPays 4kW / 5kW Inverters (Via TSP Solar Bot)
Sunsynk Inverters, Deye Inverters, Victron Inverters, SMA Inverters, Solis Inverters, Goodwe Inverters, Luxpower Inverters
