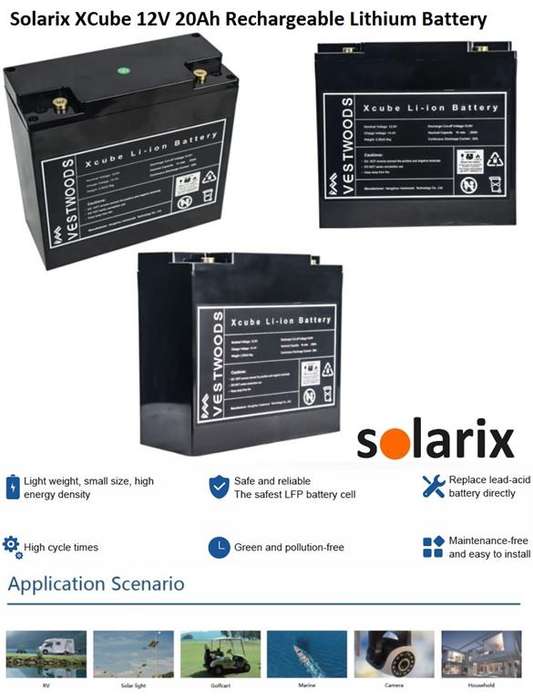

Solarix XCube 12V 20Ah Rechargeable Lithium Battery - Nominal Voltage 12.8V, Nominal Capacity 20Ah, Rated Energy 256.4Wh, Rechargeable LiFePO4 Li-ion Battery, BMS Function Overcharge and Discharge, Overcurrent and Temperature Protection, Recommended Charge Voltage 14.4V - 14.6V, Discharge Cut-off Voltage 10.8V, Max. Continuous Charge/Discharge Current 20A, Long Service Life Of Around 3000 Cycles, Retail Box, 2 Year Warranty
Product Overview
The Solarix XCube 12.8V 20Ah Rechargeable Lithium Battery is designed to be Lead Acid Battery Replacement for Alarms, CCTV, Electrical Gate and Garage Motors with a long service life of around 3000 cycles which is more than 8 times comparing with Lead-acid batteries which are usually only 300-400 cycles) providing 100% of rated capacity each time when you use. The built-in Battery Management System protects the cell from getting damaged like: over or under-voltage, over-current, high temperature or short-circuiting .Additional uses for this battery is in Caravans , Marine boats , Golf carts , solar panels or used as a backup power supply.
Please note that these batteries cannot be connected in series and cannot be used in an Uninterrupted Power Supply (UPS)
Specifications
Stock Code SOLXCLB12V20AH
Description Solarix XCube 12V 20Ah Rechargeable Lithium Battery
Brand Vestwood XCube
Nominal Voltage: 12.8V
Nominal Capacity: 20Ah
Rated Power: 256.4Wh
Long Service Life Of Around 3000 Cycles
BMS Function: Overcharge, over-discharge, overcurrent, and temperature protection
Recommended Charge Voltage: 14.4-14.6V
Discharge Cut-off Voltage: 10.8V
Standard Charge Current: 10A
Max. Charge Current: 20A
Continuous Discharge Current: 20A
Peak Discharge Current: 40A @5S
Voltage Configurations: 12V
Maximum Configuration: Inverse capacity in parallel
Maximum Time Between Charges: 3 months
Dimension (L*W*H): 181*170*77(W*H*D)/ mm
Weight: Approx. 2.3kg
Terminal: M5
Casing Material: ABS
IP Protection Level: IP65
2 Year Warranty
