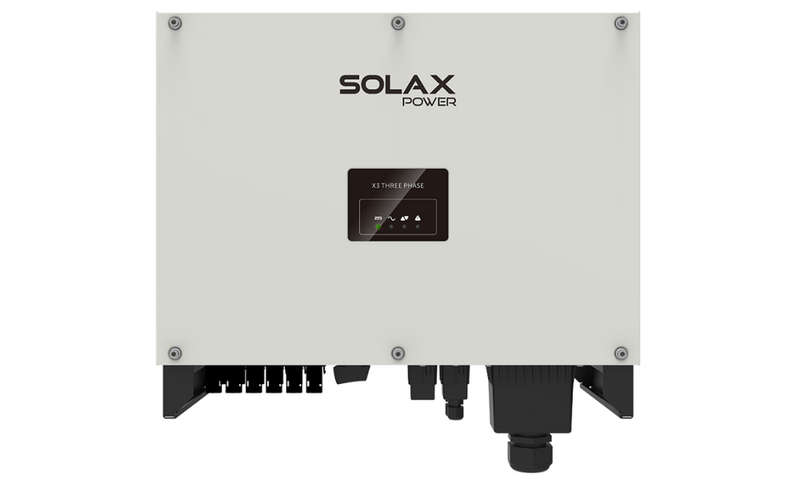

Three Phase Grid-Tie
Transformerless
Dual MPPT
Maximum Efficiency: 98.2%
Input (DC)
Maximum Input Voltage: 1000V
Rated Input Voltage: 620V
Maximum Input Current: 2 x 37.5A
Startup Input Voltage: 250V
Minimum Operating Voltage: 180V
MPPT Operating Voltage Range: 180V-960V
MPPT Operating Voltage Range (Full Load): 480V-800V
Maximum Number PV Strings: 6(3/3)
Number of MPP Trackers: 2
Output (AC)
Rated AC Active Power: 30000W
Maximum AC Active Power (PF=1): 33000W
Maximum AC Output Current: 3 x 48A
Rated AC Voltage: 380VAC/400VAC, 3W+N+PE
AC Voltage Range: 277VAC-520VAC (Adjustable)
Rated Grid Frequency: 50Hz/60Hz (45Hz-55Hz / 55Hz-65Hz)
THDi, rated power: <3%
DC Current Injection: <0.5 In
Power Factor: 0.8 leading ~ 0.8 lagging
Environment Limit
Ingress Protection: IP65
Operating Temperature Range: -25C to +60C
Maximum Operation Altitude: 4000m (>2000m Derating)
Humidity: 0% to 100%
Communication: WIFI/RS485/GPRS
Certification: IEC62109-1 / IEC62109-2 / IEC61727 / IEC62116
