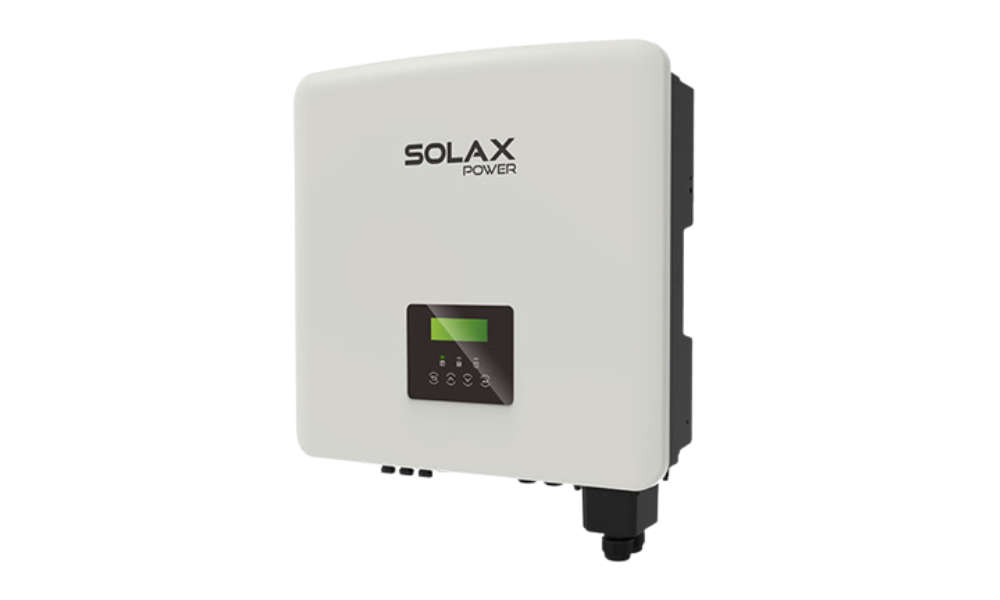

Three Phase Hybrid High Voltage
D Version (Used without Matebox)
Dual MPPT
Maximum Efficiency: 97.8%
Input (DC)
Maximum PV Array Input Power: 9000Wp
Maximum DC Voltage: 1000V
Nominal DC Operating Voltage: 720V
Maximum Input Current: 12A / 12A
Maximum Short Circuit Current: 14A / 14A
MPPT Voltage Range: 180V 950V
Start Operating Voltage: 180V
Number of MPP Trackers: 2
Strings per MPP Tracker: 1/1
AC Input & Output
Nominal AC Power: 6000VA
Maximum Apparent AC Power: 6600VA
Nominal Grid Voltage: 400VAC/230VAC ; 380VAC/220VAC
Nominal Grid Frequency Range: 50Hz/60Hz
Nominal AC Current: 8.7A
Maximum AC Current: 9.6A
Displacement Power Factor: 0.8 leading ~ 0.8 lagging
THDi, rated power: <3%
Environment Limit
Ingress Protection: IP65
Operating Temperature Range: -20C to +60C (derating at 45C)
Maximum Operation Altitude: <2000m
Humidity: 0% to 100% (Condensing)
Storage Temperature: -20C to +60C
Communication: Ethernet/Meter/Pocket Interface/DRM/USB/CAN/BMS/NTC
Certification: IEC62109-1 / IEC62109-2 / AS4777
