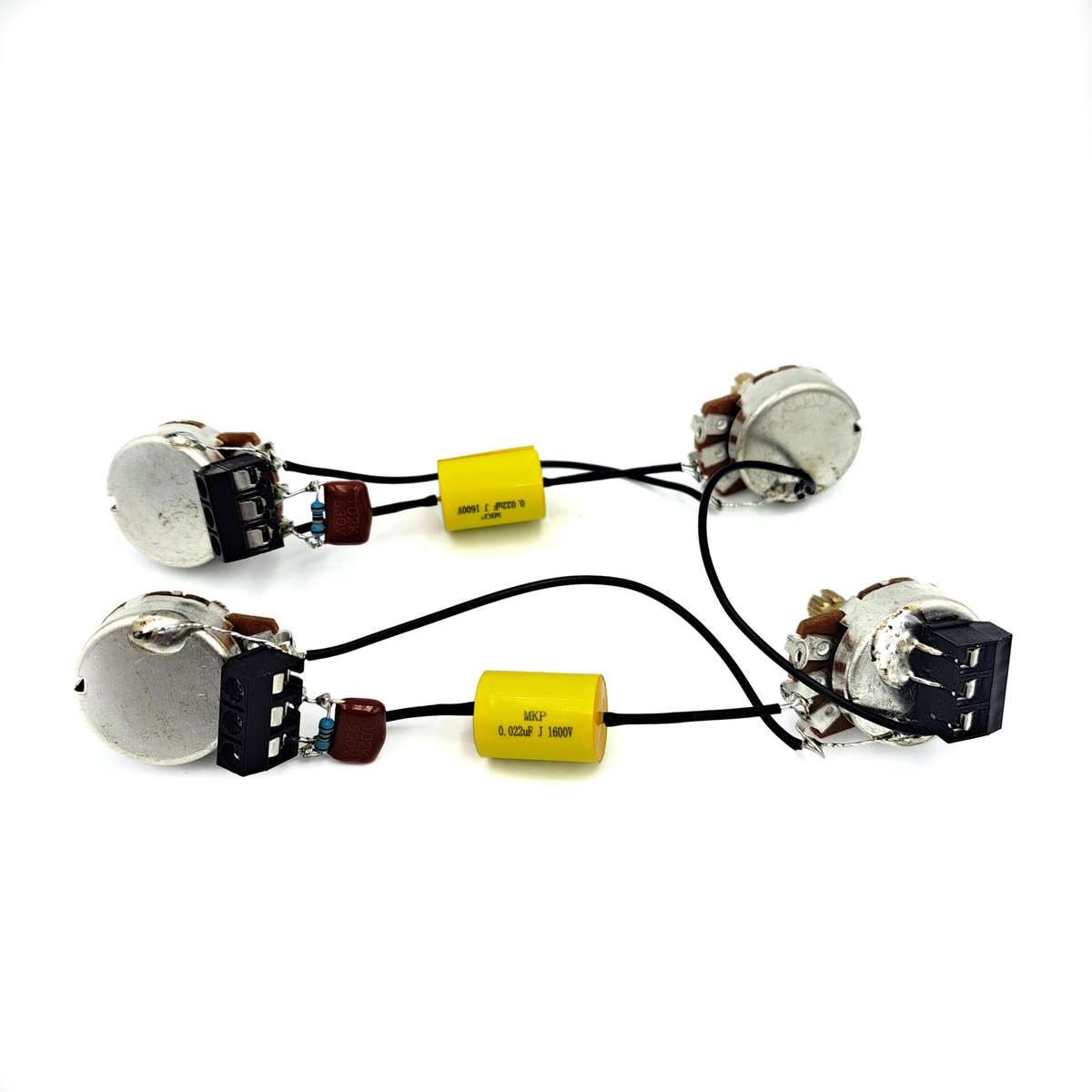

Solderless Pre-wired Electronics for Les Paul, SG or similar with 2V2T without Jack and Switch

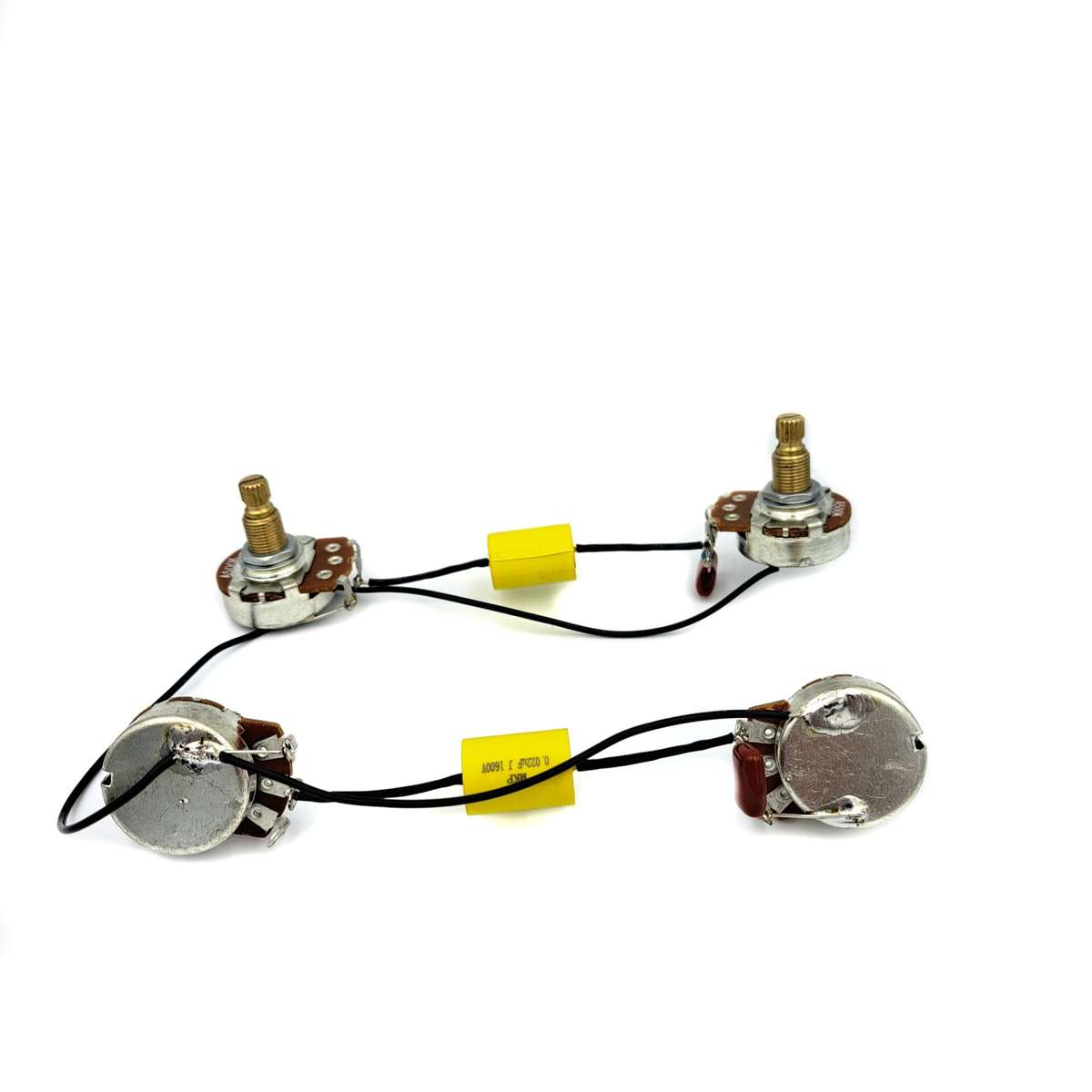

Includes Full-Size Brass Shaft A500K potentiometers for Volume and Tone with 0.022uf Capacitors, modern Gibson wiring layout, Duncan treble bleed mod on Volumes.

Includes all the necessary nuts and washers. Controll knobs not included, please purchase them separately if you need

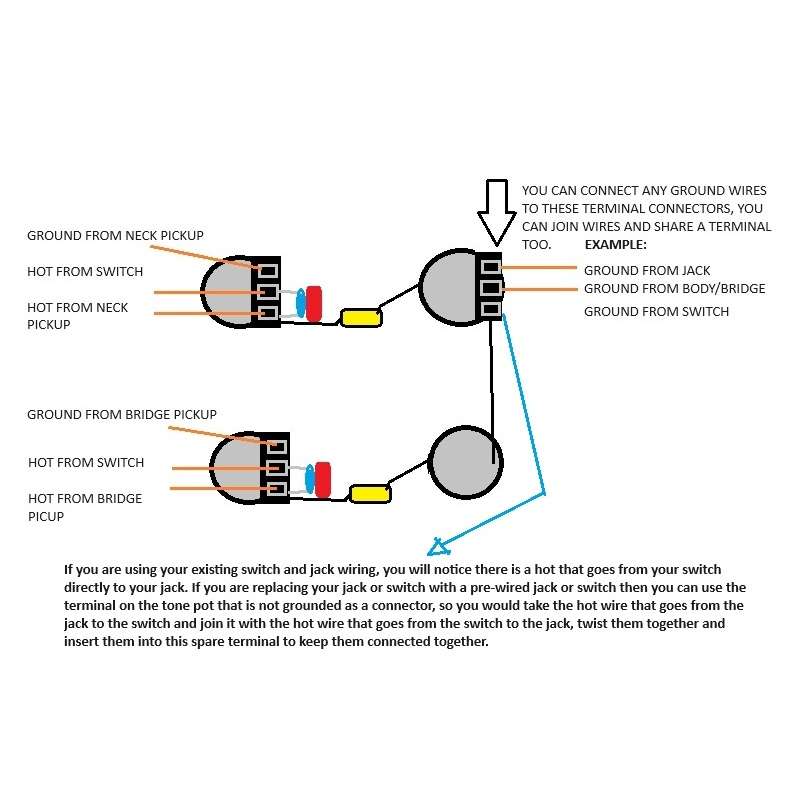

This is for those wanting to change their potentiometers and related components only and use their existing switch and jack. You need to feed the wires from the switch through your cavity to the potentiometer cavity, then connect the switch wires and pickup wires to the solderless connector on top of each volume pot, the output jack wires and bridge ground get connected to the top of the tone pot. We also offer this wiring assembly without solderless connectors, please see our listing for that one should you require solder-in harness. We also sell prewired harnesses with the jack and switch soldered in already but these will only work for guitars like SG, where the wiring does not need to go through different cavities, such as a Les Paul Standard which has the switch at the top of the guitar and pots at the bottom.

This wiring assembly will also work if you are ordering a prewired switch and prewired jack, then you feed all the wires through to the cavity and you use the spare terminal on the tone pot to connect the 2 hots together, the grounds can be connected to any ground terminal. Grounds can be combined with eachother and share a terminal too. Instructions and diagram will be sent with your order.

Please note when ordering custom pickguard wiring or electronic assemblies, add an extra 24 - 48 hours to the lead time.
