Product information
Solid V-Wheel Kit - Pack of 10
Product Description

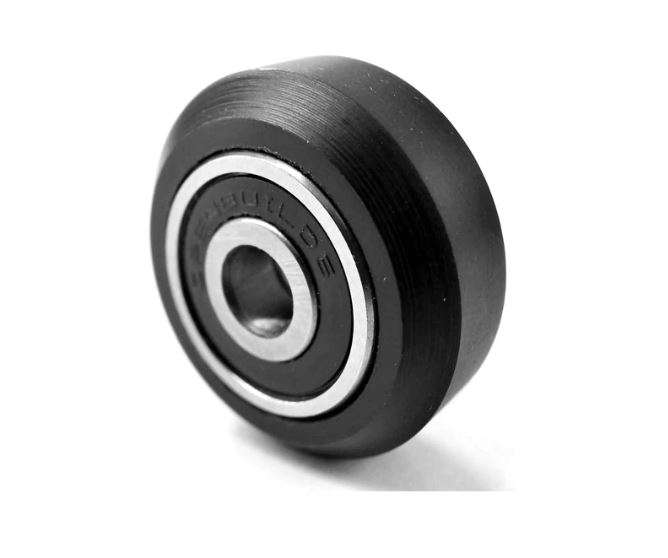

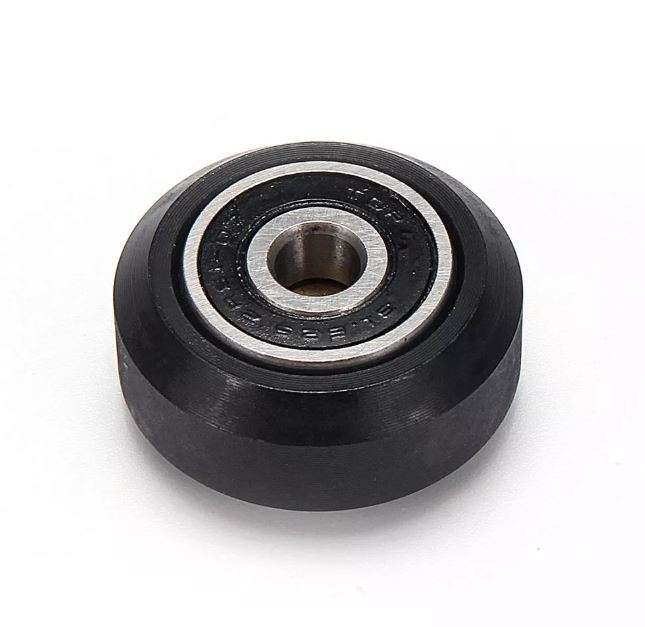

The Solid V Wheel is a strong wheel that resists deflection due to its solid nature.
This wheel style was produced for two reasons.
First is for builds where heavier loads are required and less compression in the Delrin is desired. Many of these wheels could be added to a gantry to allow an even distribution of the load across them.
Second is for improved performance of the belt and pinion system to give the belt a flat surface to ride on.
These wheels are individually milled for consistent high precision and tolerance. The Solid V Wheel is great for use with the V-Slot Linear Guide System.
Please note: The precision shims are placed in-between the two bearings. To assemble, first push one bearing into the wheel. Then using the screw as a guide push the precision shim and 2nd bearing into the other side of the wheel.
- — Model: VK0009
- — Material: POM
- — Size: 10.2 x 23.9 mm
Product Package: ( Pack of 10, quantity will differ depending on option chosen )
- 10 X Solid V Wheel
- 20 x Ball Bearings — 625 2RS
- 10 x precision shims
Please note: Locally Stocked. Available for Immediate Shipping!
