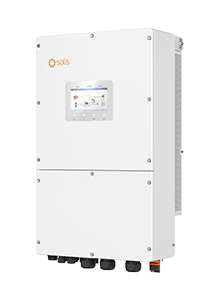

Solis Three Phase 50kW High Voltage Hybrid Inverter

The Solis S6 Hybrid inverter range offers advanced features suitable to meet and excel in todays solar market. Smart LCD display, generator integration and so much more.

Features:

• Allowable PV of up to 100kW, on the 180-1000V MPPT.
• 4-MPPTs, rated at 40A each, with 2-string inputs each allowing for 8 strings of high power/current PV modules.
• Supports Grid and Generator AC inputs.
• Parallel up to 3 x inverters for up to 150kW of back-up load.
• Battery Charge and Discharge current of up to 140A.
• UPS transfer time of less than 10ms.
• 160% surge power for 2s to accommodate inductive loads.
• Integrated AFCI (DC arc-fault circuit protection) mitigating fire risks.
• LCD display and remote firmware upgrades with included S4 Wi-Fi/LAN Stick and Solis Cloud support/monitoring.
• Solis reliability with 5-year warranty. (extendable to 10/15/20-years)

SA:

• NRS-097 certified and CoCT approval coming soon.
• Parallel up to 6 units - awaiting firmware upgrade ETA July.

Documents:

• Data Sheet Solis S6-EH3P(30-50)K-H V1.3 2024-03
• Installation Manual Solis_Manual_S6-EH3P(30-50)K-H_EUR_V1.0
• NRS-2017 Solis S6 EH3P 29.9-50K NRS 097-2-1
• Product Compatibility
