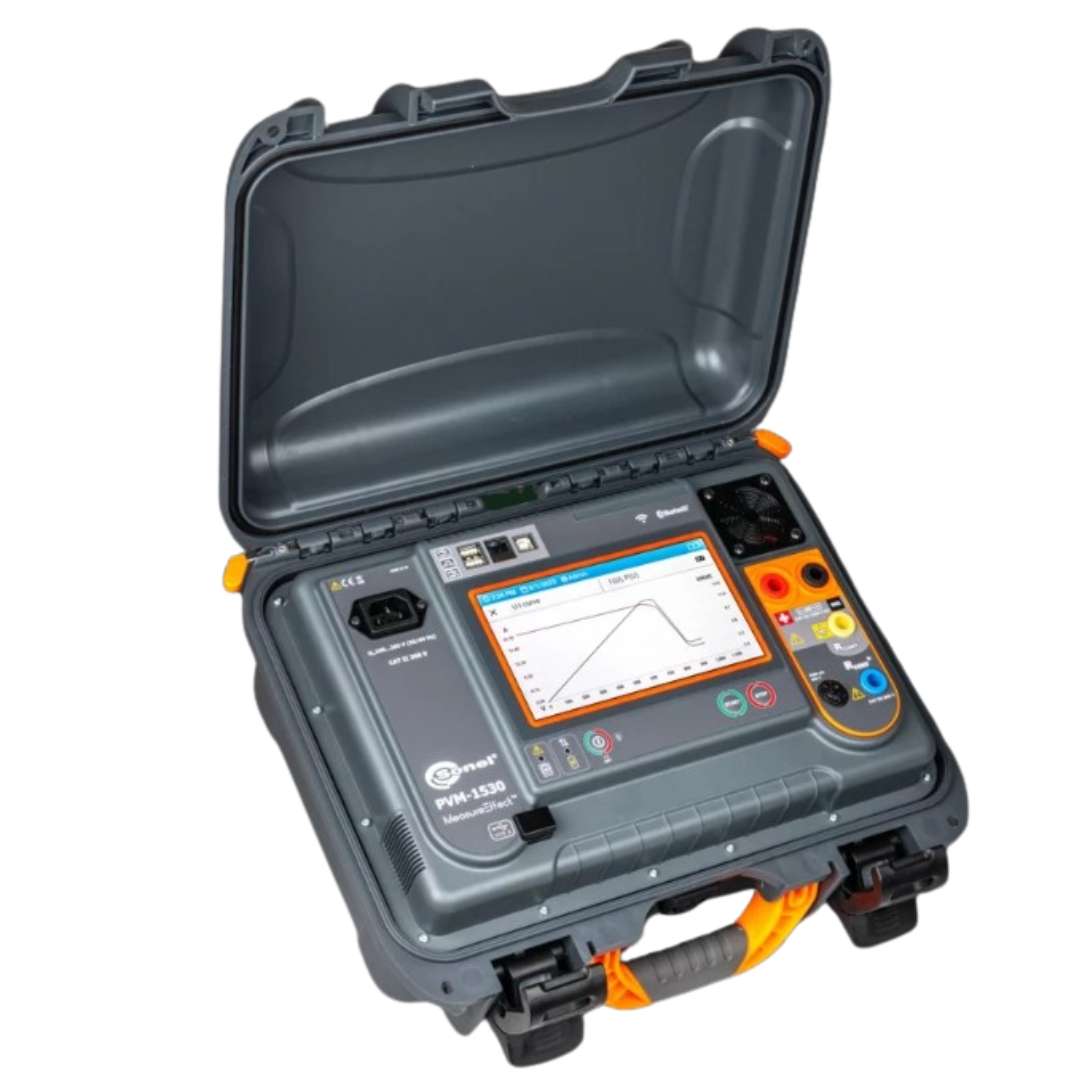

PVM-1530
It can be used for category 1 measurements according to IEC 62446-1.
It allows the measurement of the I-U curve for category 2 according to IEC 62446-1.
It allows the measurement of photovoltaic panels, including bifacial and high-efficiency panels.
Ability to define measurement procedures.
It converts measured parameters into STC conditions according to IEC 60891 by cooperation with the IRM-1 solar radiation
and temperature meter.
reSYNC function automatic completion of results with environmental parameters and their conversion to STC conditions after
restoring connection with IRM-1.
The attachable radio interface ensures cooperation with the IRM-1 meter over long distances.
Built-in Bluetooth and Wi-Fi for communication with external devices.
Large structured memory of measurements.
Large touchscreen for good visibility in bright sunlight.
datasheet_PVM-1530_EN_v1.02
PVM-1530
It can be used for category 1 measurements according to IEC 62446-1.
It allows the measurement of the I-U curve for category 2 according to IEC 62446-1.
It allows the measurement of photovoltaic panels, including bifacial and high-efficiency panels.
Ability to define measurement procedures.
It converts measured parameters into STC conditions according to IEC 60891 by cooperation with the IRM-1 solar radiation
and temperature meter.
reSYNC function automatic completion of results with environmental parameters and their conversion to STC conditions after
restoring connection with IRM-1.
The attachable radio interface ensures cooperation with the IRM-1 meter over long distances.
Built-in Bluetooth and Wi-Fi for communication with external devices.
Large structured memory of measurements.
Large touchscreen for good visibility in bright sunlight.
Sonel MeasureEffect
The meter is a part of the Sonel MeasureEffect platform. It is a comprehensive system
that enables you to take measurements, store and manage data, and provides multi-level
control of your instruments.
Measured parameters
PVM-1530
Measurement of I-U and P-U characteristics. Conversion to STC conditions.
The open circuit voltage of the PV panel or a chain of panels, up to 1500 V DC.
RMS voltage of the AC network up to 1000 V with frequency measurement.
Short circuit current of a PV panel or chain of panels - up to 40 A DC.
Insulation resistance of PV panels - measuring voltage of 250, 500, 1000,
1500 V DC, simultaneous measurement of two values: RISO+ and RISO-.
Insulation resistance of AC circuits - measuring voltage 250, 500, 1000 V DC.
Resistance of protective conductors and equipotential bonding with ± 200 mA current.
Measurement of PV panels operating current and AC current - all with
CMP-1015-PV meter.
AC/DC power measurement.
Test of bypass diodes, automatic polarity detection.
Test of blocking diodes with 1000, 1500 V DC voltage.
PVM-1530: cat. 1 measurements and I-U characteristics
The PVM-1530 is a pioneering meter for photovoltaic installations up to 1500 V with
such a substantial number of measurement functions. Their selection is done via a
touch screen. The screen is large, colorful and with strong backlight so that operation
in full sunlight is not a problem. Extensive structural memory significantly reduces the
time for preparing post-measurement documentation.
Tightness and durability
The meters perform well in harsh environmental conditions. The PVM-1530's housing
is rugged and tight when closed to easily ensure that the meter is protected during
measurement.
Communication and software
Measurement data from the IRM-1 can be transferred to a computer via the USB port.
In addition, the device has a built-in wireless LoRa interface (Long Range) for automatic
data exchange with the master meter even over long distances.
Measurement data from the PVM-1530 can be transferred to a computer via cable or
wireless communication. Saving the downloaded data to popular formats and printing
is ensured by Sonel Reader. In order to generate a report on electric shock protection
use the optional software: Sonel Reports Plus.
Trouble? reSYNC!
It may happen that in the course of measurements the PVM-1530 moves away from
the IRM-1 so far, that communication between them is lost. If the measurements are
continued, then after the connection is restored, the results will be automatically supplemented
with environmental parameters, which in the meantime were recorded by
the IRM-1 in its temporary memory, and converted into STC conditions.
Specifications
Parameter Measurement
range
Display
range Resolution Accuracy
±(% m.v. + digits)
Voltage
AC voltage 0.0 V1000.0 V 0.0 V1000.0 V 0.1 V ±(2% m.v. + 6 digits)
DC voltage 0.0 V1500.0 V 0.0 V1500.0 V 0.1 V ±(0.5% m.v. + 2 digits)
Frequency 10.0 Hz100.0 Hz 0 Hz100.0 Hz 0.1 Hz ±(0.5% m.v. + 2 digits)
Short circuit current ISC
Voltage 1500 V DC 0.0030.00 A 0.0030.00 A 0.01 A ±(1% m.v. + 2 digits)
Voltage 1000 V DC 0.0040.00 A 0.0040.00 A 0.01 A ±(1% m.v. + 2 digits)
Insulation resistance
Insulation resistance at AC side
Measuring voltage 250 V 250 k200 M
acc. to IEC 61557-2 0.0 k200.0 M from 0.1 k ±(3% m.v. + 8 digits)
Measuring voltage 500 V 500 k500 M
acc. to IEC 61557-2 0.0 k500.0 M from 0.1 k ±(3% m.v. + 8 digits)
Measuring voltage 1000 V 1000 k1.000 G
acc. to IEC 61557-2 0.0 k1.000 G from 0.1 k ±(3% m.v. + 8 digits)
Insulation resistance at DC side
Measuring voltage 250 V / 500 V / 1000 V
/ 1500 V
250 k500 M
acc. to IEC 61557-2 0.0 k500.0 M from 0.1 k ±(8% m.v. + 8 digits)
Resistance of protective conductors and equipotential bondings
Measurement of resistance of protective
conductors and equipotential bondings with
±200 mA current
0.10 1999
acc. to IEC 61557-4 0.00 1999 from 0.01 from ±(2% m.v. + 3 digits)
Operating current as for CMP-1015-PV as for CMP-1015-PV as for CMP-1015-PV as for CMP-1015-PV
Active power 0.0 kW999.0 kW 0.0 kW999.0 kW 0.1 kW ±(6% m.v. + 5 digits)
Safety and work conditions
Measuring category according to 61010
Terminal group: ", +", CAT III 1500 V DC
Terminal group: RCONT, RCONT+ CAT III 600 V
Ingress protection
Closed cover IP65
Open cover IP40
Type of insulation according to EN 61010-1 and IEC 61557 double
Power supply mains, Li-Ion 7.2 V, 9.8 Ah rechargeable battery
Dimensions 390 x 308 x 172 mm
Weight ca. 8.8 kg
Operating temperature -10+45°C
Storage temperature -20+60°C
Humidity 2090%
Nominal temperature 23 ± 2°C
Refe...
