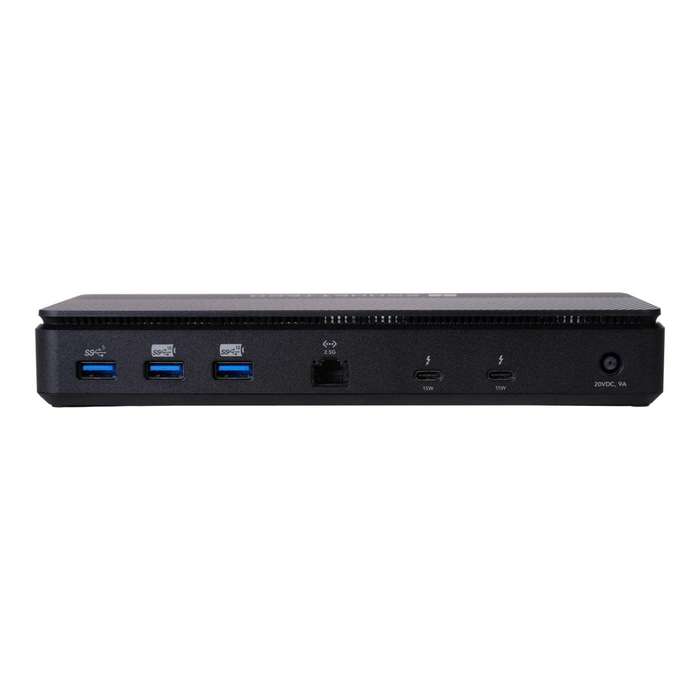

Sonnet Echo 13 Thunderbolt 5 Docking Station with 1TB - Black SSD ECHO-DK13-1TB5

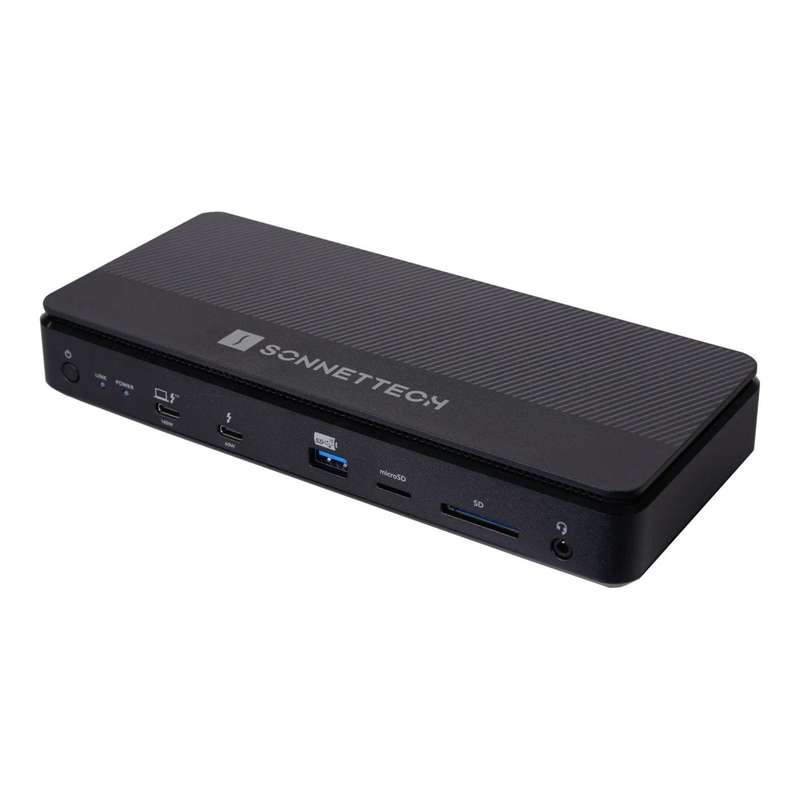

Sonnet Echo™ 13 Thunderbolt 5 SSD Dock delivers next level storage performance — 6000 MB/s with Thunderbolt™ 5 computers, 3400 MB/s when used with a Thunderbolt 4 or 3 computer with your choice of pre-installed Kingston M.2 NVMeSSD storage. Connections? Echo 13 has you covered with four Thunderbolt 5 ports, four USB-A ports, one 2.5Gb Ethernet port, one headphone jack, SD and microSD card slots, plus 8K display support.

One Cable Peripheral Connection
Instant access — plug peripherals into the Echo dock and connect your computer to the dock with the included Thunderbolt 5 cable.

Twelve External Interfaces
Includes four Thunderbolt 5 ports, three USB 3.2 Gen 2 Type A charging ports, one USB 3.2 Gen 1 Type A port, one RJ45 2.5 Gigabit Ethernet port, and one 3.5 mm combo audio jack; one SD card slot and one microSD card slot.

Built-in SSD Included
1TB Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD included.

Three Thunderbolt 5 Ports for Peripherals
Connects three Thunderbolt 5, 4, or 3 peripherals. Also supports USB4 V2, USB4, and USB3 devices.

Powerful 10Gbps USB Type A Ports
Three USB 3.2 Gen 2 ports provide up to 7.5W of power each, supporting super-fast USB NVMe SSDs at up to full speed.

Connect Up to Three 4K -144Hz Displays via Thunderbolt
Connect Thunderbolt or USB-C displays directly. Supports HDMI or DisplayPort displays with Thunderbolt-compatible adapters (sold separately).

Support for 1080p, 1440p, 4K, 5K, 6K, and 8K Displays - up to 240Hz
Depending on your computer, supports up to three 4K, two 6K or 8K, or a single 4K, 5K, 6K, or 8K display.

Charge Your Laptop
Provides up to 140W through the included Thunderbolt 5 cable to power and charge your laptop.

Read SD and microSD Cards
Compatible with all SD and microSD card types; supports 320 MB/s read speeds with UHS-II SDXC cards.

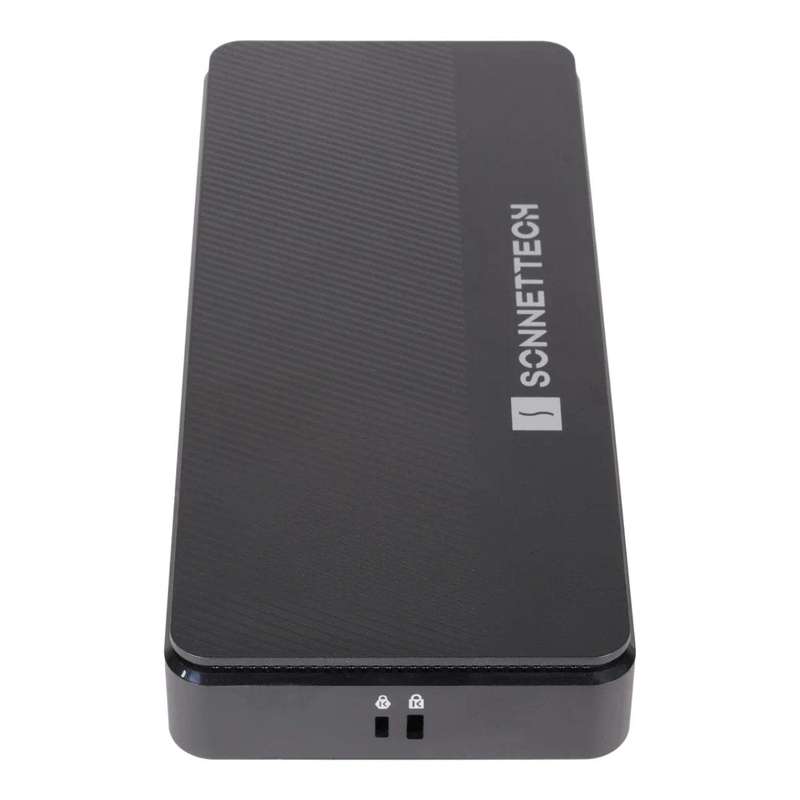

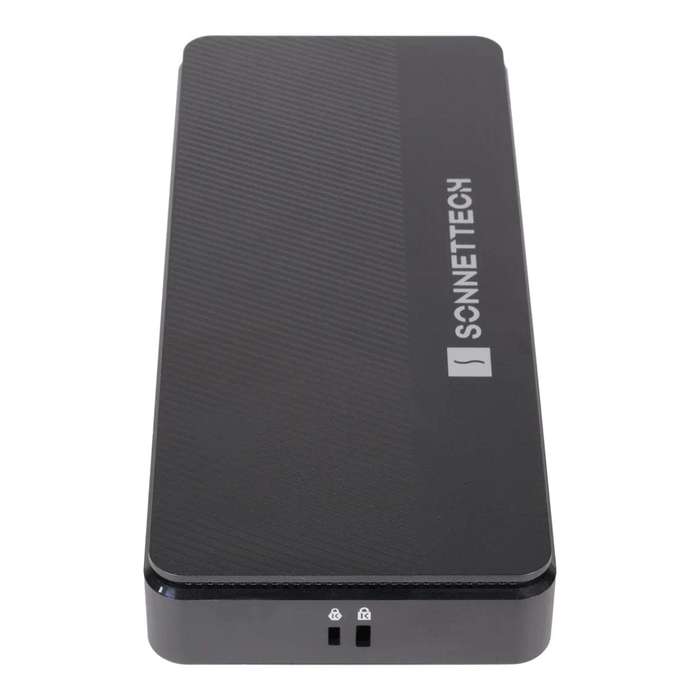

Kensington Lock Ready
Safely secure your Echo 13 dock and its valuable data with a Kensington Security Lock (sold separately). Equipped with both Kensington Security and Nano Security Slots.

Mac Compatible
Supports M series and Intel Macs.

Windows Compatible
Supports Thunderbolt 5, Thunderbolt 4, and USB4 Windows computers.

Chromebook Compatible
Supports Chromebook computers with Thunderbolt 5 or 4, or USB4 ports.

Apple M Series iPad Pro Compatible
Supports all M series iPad Pro tablets.

Specifications

Internal Built-in SSD Storage

• Thunderbolt 5 certified Kingston PCIe 4.0 NVMe SSD
• Configured with 1TB, 2TB, or 4TB module

External Connectors

• Four Thunderbolt 5 ports
• Three USB3.2 Gen2 (10Gbps) Type A charging ports
• USB 3.2 Gen 1 (5Gbps) Type A port
• RJ45 2.5 Gigabit Ethernet port
• 3.5 mm combination audio headphone/microphone jack
• UHS-II SD card slot
• UHS-II microSD card slot
• Power connector

Thunderbolt 5 Computer Port

Thunderbolt 5 Peripherals Ports

Connectivity: With USB-C connector

Peripherals Supported

• Thunderbolt 5
• Thunderbolt 4
• Thunderbolt 3
• USB4 v2
• USB4
• All USB 3, 2.0 and 1.1 devices
• USB hubs
• Thunderbolt 4, Thunderbolt 3, and USB-C monitors
• DisplayPort and HDMI monitors(5)

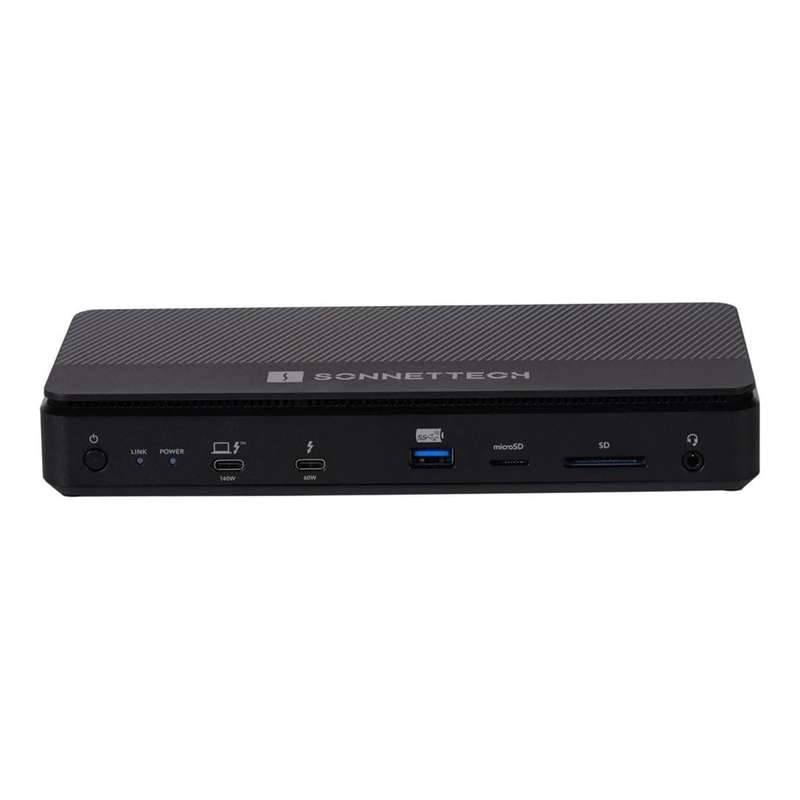

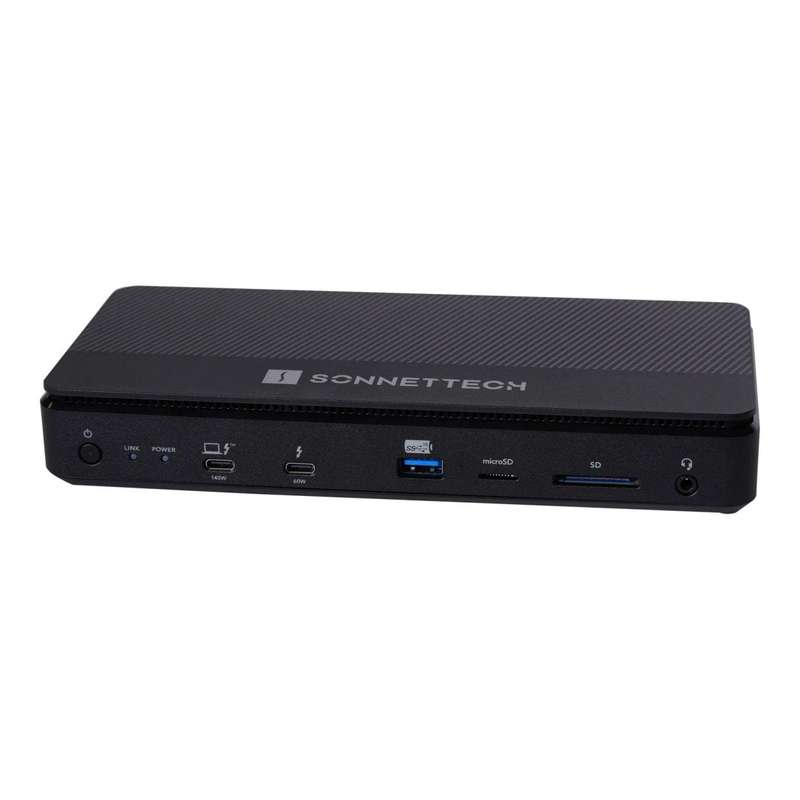

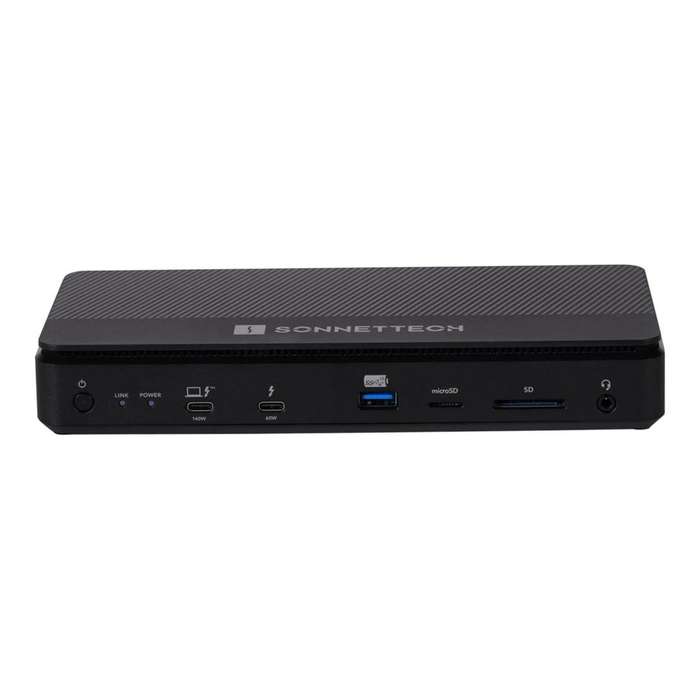

Charging (Front Panel Peripheral Port)

• 60W capacity to fast charge iPad, iPhone, or other device
• USB Type-C charging
• Supports simultaneous charging and syncing

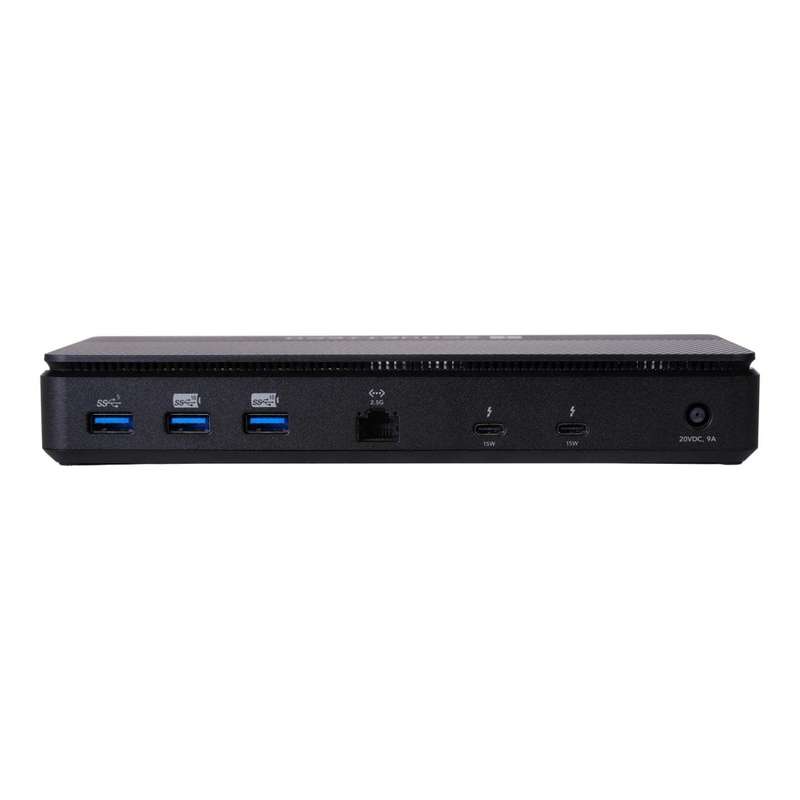

Charging (Back Panel Peripheral Ports)

• 15W capacity each to charge iPad, iPhone, or other device
• USB Type-C charging
• Supports simultaneous charging and syncing

USB 3.2 Gen 2 Type A Ports

Charging

• 7.5W capacity to charge iPad, iPhone, or other device
• USB Battery Charging 1.2—compliant
• Supports simultaneous charging and syncing

USB 3.2 Gen 1 Type A Port (Rear Panel)

RJ45 (Ethernet) Port

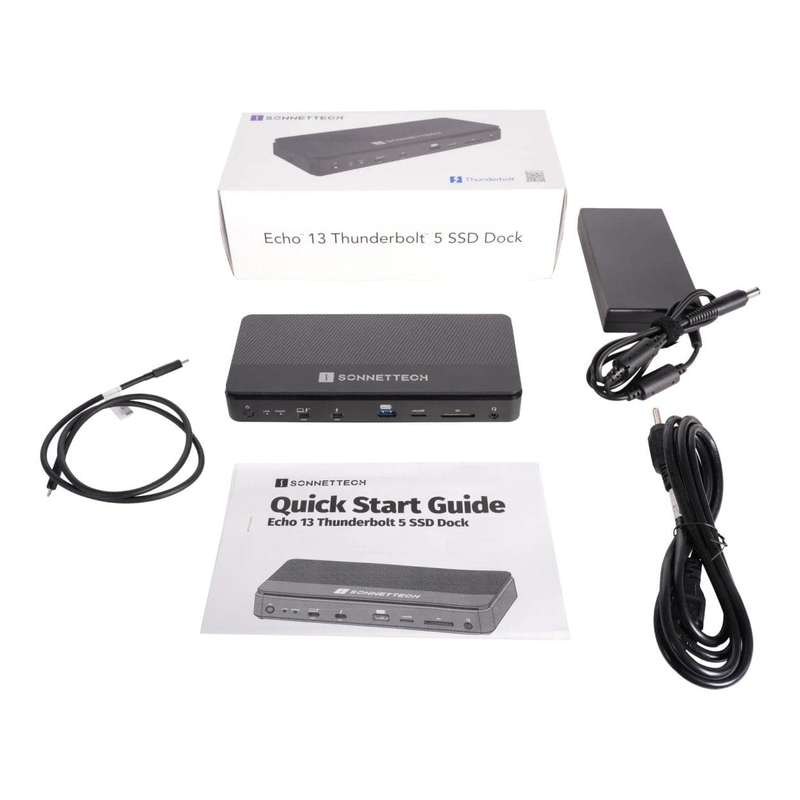

Box Contents

• 1x Echo 13 Thunderbolt 5 SSD Dock with 1TB SSD
• 1x Power adaper
• 1x Region specific power cable
• 1x 0.8-meter Thunderbolt 5 cable Documentation
