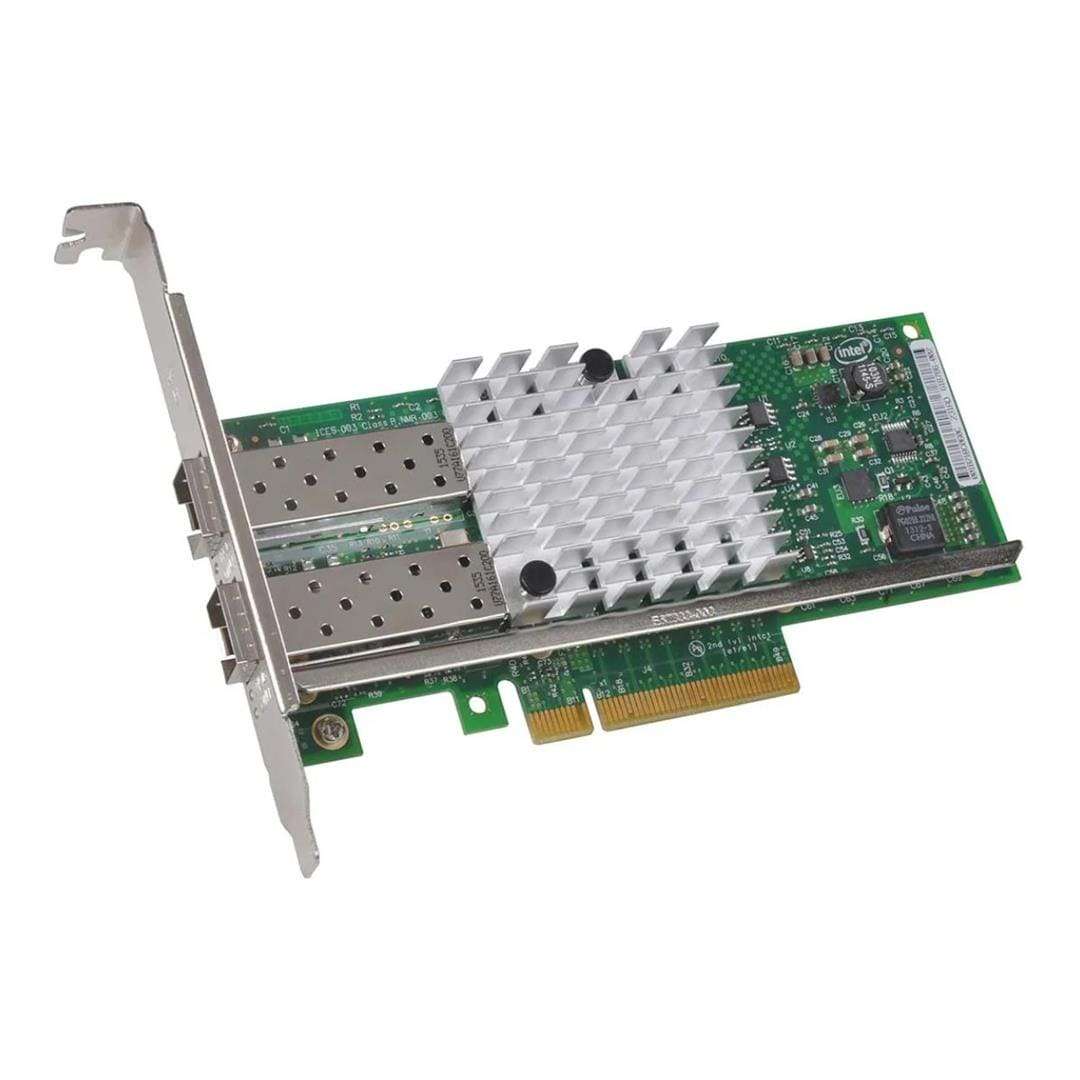

Sonnet Presto SFP+ 2-port 10GbE Ethernet PCIe Card G10E-SFP-2XA-E2

Presto 10GBE SFP+ Ethernet 2-Port PCIe Card

10 Gigabit Cabled Networking
Ultra-Fast 10 Gb/s Network Connection
With increasing demands for greater data transfer speeds and more bandwidth over shared networks, and with specialized applications such as HD video editing using high-performance shared storage systems, it's no wonder that 10 Gigabit Ethernet (10GbE) use has skyrocketed this high-speed cabled networking standard offers ten times the performance of Gigabit Ethernet, the common wired network connection included with most computers today. Sonnet offers a powerfully simple way to add dual-port 10GbE connectivity to your Mac Pro® tower, Windows® PC, or Linux® server the Presto™ 10GbE SFP+.

Simple Set-Up. High-Performance Computing.
The Presto 10GbE SFP+ dual-port 10 Gigabit Ethernet PCI Express 2.0 adapter card enables you to connect your computer to high-speed infrastructure and storage without stepping down in speed. Setup is simple after installing the low-profile card into an available x8 or x16 PCIe slot in your computer, just download and install a driver, connect to the switch or device's 10GbE port via LC optical cables (SFP+ optical transceivers and optical cables sold separately), CAT-6 or CAT-6A copper cables (RJ45 SFP+ copper transceivers and cables sold separately), or direct attach Twinax copper cables (sold separately), and then configure the card through the OS X® Network control panel or Windows Device Manager. This Sonnet solution is perfect for high-performance computing where low latency, high bandwidth, and low CPU overhead are required.

Dual Ports IconIts increased throughput performance and low host-CPU utilization are achieved through functions such as support for flow control, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum off2loading, enabling your computer to perform better while large files transfers or high I/O operations take place. With its dual ports, this Sonnet adapter supports transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails, and it also supports link aggregation (teaming)(2) for increased throughput!

Flexibility of SFP+ Transceiver Choices
Sonnet offers three SFP+ transceiver options (sold separately) a short-range multi-mode fiber module (up to 300 meters), part number G10E-SFP-SR; a long-range single-mode fiber module (up to 10 kilometers), part number G10E-SFP-LR; and a 10GBASE-T copper module, part number G10E-SFP-T (Cat 6A cable up to 100 meters). Alternatively, you can use cost-effective direct-attach Twinax copper cables up to 10 meters long (sold separately).

Optimized for Thunderbolt
Got a Thunderbolt connection, but no PCIe slot? Presto 10GbE SFP+ is ideal for use in one of Sonnet's Echo Express or xMac Thunderbolt-to-PCIe card expansion systems—the combo enables you to add ultra-fast 10GbE network connections to any Mac® or Windows PC with a Thunderbolt 2 port.

Features

Adds 10GbE Connectivity to Mac Pro Towers, Windows PCs, or Linux® Servers

Powerfully simple way to add high-performance 10GbE connectivity to your computer with PCIe slots

Optimized for Thunderbolt™

Ideal for use in Sonnet's Echo™ Express and xMac™ Thunderbolt-to-PCIe card expansion systems

Connection Flexibility

Choose between two short-range or two long-range SFP+ optical transceivers (sold separately), two RJ45 SFP+ copper transceivers(1) (sold separately), or two SFP+-terminated "Direct Attach" twinax copper cables (sold separately) to connect the Presto card to your network or storage

Simple Setup

Low-profile x8 PCI Express® 2.0 card installs into an available slot, and after a simple driver installation, configures through OS X Network control panel or Windows Device Manager

Supports Transparent Failover

Keeps your computer connected in case a single cable is disconnected or one of the ports fails

Supports Link Aggregation (Teaming)

Increases throughput beyond what a single connection can sustain

Specifications

Box Contents

• Presto 10GbE Server 2-Port 10 Gigabit Ethernet PCI Express Card
• Includes both low-profile and full-height mounting brackets.
• Documentation"
