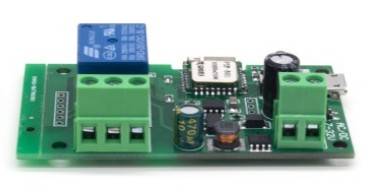

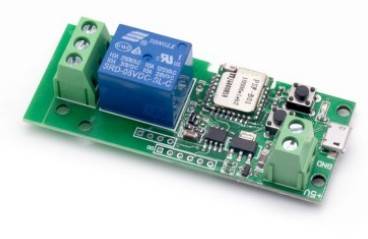

SONOFF 1Channel Inching Self-Locking WiFi Switch 5V - 28g
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
IN STOCK at GeeWiz!
If ordered before 4PM:
DELIVERED next business day (main centres)
or 3-5 days (regional areas or large items)
COLLECTION from GeeWiz available SAME DAY
Also available for in-store purchase during business hours!
PRODUCT DESCRIPTION
Enables remote control of home appliances through the mobile application eWeLink, available on both Android and iOS. Supported functions include:
- Remote turn on/off
- Timing Schedules
- Device Sharing
- Group Management
- Works with Amazon Echo, Echo Dot, Amazon Tap
- Works with Google Home, Google Nest
- Works with IFTTT
Note: we have change the WiFi module from PSA to PSF recently. PSF is more powerful.
5Vself-lock/inching mode wireless switch：
There are two working modes for the product: inching mode and self-locking mode. Users can press the self-lock/inching mode button to switch between these two modes.
When the module is switched to self-locking mode, users can turn on/off the connected appliance instantly. There are two wiring way.
When the module is switched to inching mode, users can press on/off toggle button to turn on or off connected device. There are two kinds of wiring way.
The first wiringoption is to connect COM and NO with an appliance. In this case, when users press the setting button or use the APP to switch on, all connected appliance will beswitched on for 1s and then automatically turned off.
The second wiringmethod is to connect NC and COM with an appliance. In this way, when users press the setting button or use the APP toswitch off, all connected appliance will be turned off for 1s and then automatically turned on.
LED Indicator:
There are 3 LED indicators. The LED next to theself-lock/inching mode button indicates the working mode (on: self-locking mode, off: inching mode).
The LEDnext to the on/off setting button indicatesWIFIstatus(enter pairing status: long press the setting button until LED blinks fast).
And the one below the relay indicates relay on or off status (on: turn on the connected device, off: turn off the connected device).
Note: the two models are not hackable.
Specification
- Dimensions:70.5 x 27.4 x 23mm
- Power supply: 5V
- LEDs:3 LEDs which indicates working mode, wifi status, relay on/off status respectively.
- Two inputinterfaces
- Board consumption: <1W
- Standby current: 80mA
- Max input current: 10A
- Supports to control different voltage ranges
- Relay lifespan: more than one million times
- 100M electrical insulation resistance
- Electric shock voltage: 1000V
- Relay maximum pull time: 15ms
- Relay maximum release time: 5ms
- Operating temperature:0ºC-40ºC(32°F-104°F)
- Operating Humidity 40% ~ 80% RH
