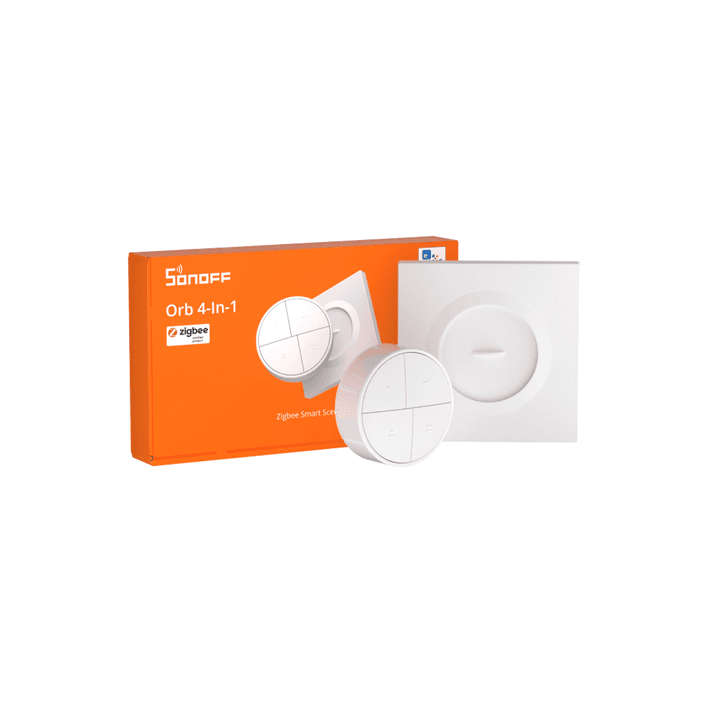

Sonoff 4 Button Scene Controller (Zigbee)

Sonoff 4 Button Scene Controller (Zigbee)

The Sonoff 4 Button Scene Controller (Zigbee) acts as a physical interface for your smart home, allowing you to trigger complex automations without needing to open an app. With four dedicated buttons that each recognize four different types of presses (single, double, triple, and long-press), you can program up to 16 unique smart scenessuch as "Welcome Home," "Sleep," or "Entertainment Mode" to run at the touch of a button.

Designed for maximum reliability, this controller supports Dual-Protocol switching, allowing you to toggle between Zigbee and eWeLink-Remote modes. The controller can communicate directly with compatible devices. This device does come with a magnetic backplate and can be mounted to the wall.

Product Specifications

• Model: SNZB-01M
• Product Type: Zigbee & eWeLink Remote Control Smart Scene Button
• Input: 3V
• MCU: TLSR8656F512ET32
• Battery Model: CR2477
• Wireless Connectivity: Zigbee (IEEE 802.15.4)
• Actions Supported: Single Press, Double Press, Triple Press, Long Press
• Color: White
• Casing Material: PC
• Working Temperature: -10°C to 60°C
• Working Humidity: 5% - 95% RH
• Certification: CE / FCC / RoHS

Product Size and Weight

• Product Dimensions: 50 x 22.5 mm
• Net Weight: 53g
