Overview:

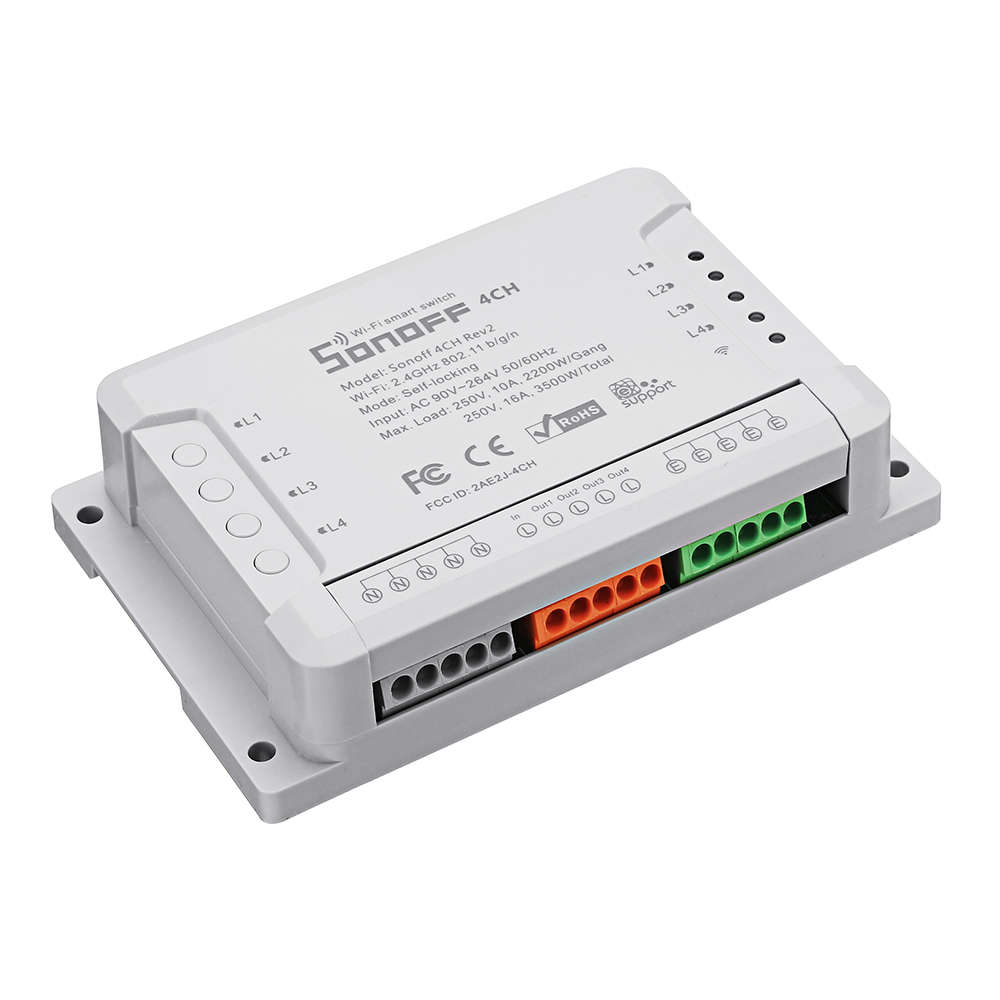

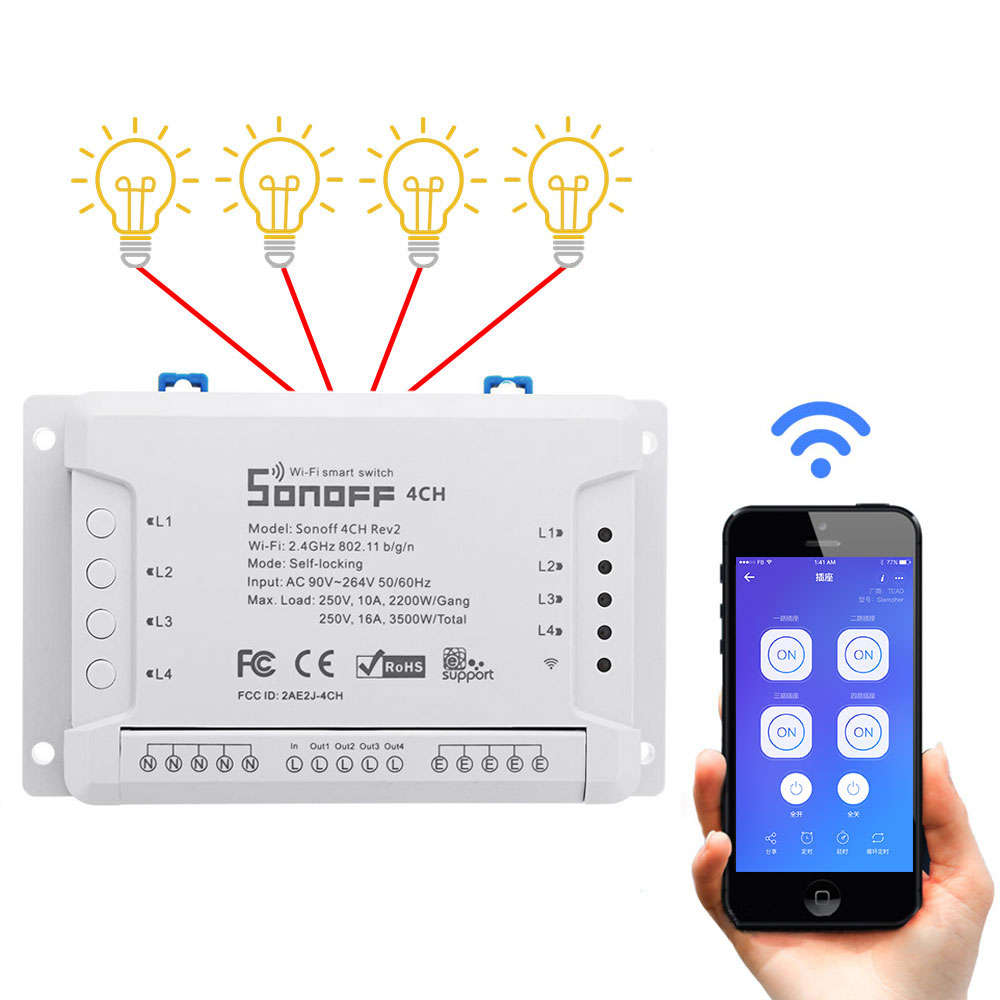

4CH R2 are 4-gang switches with din rail mounting. Sonoff 4CH R2 4 gang light switch supports to connect and control 4 electrical appliances, which can be turned on/off separately by the buttons or iOS/Android App EweLink. Besides, with the multi gang switch, you can check real-time devices status for each device on App. Owning a Sonoff 4CH R2 multi gang switch means you have 4 Sonoff basic WiFi switches integrate together.
The enclosure is din rail mount supported! A DIN rail is a metal rail of a standard type widely used for mounting circuit breakers and industrial control equipment inside equipment racks. These products are typically made from cold rolled carbon steel sheet with a zinc-plated or chromated bright surface finish.
Sonoff 4CH R2 4 gang WiFi light switch belongs to Sonoff family, definitely, it bears all the functions basic Sonoff has. In EweLink, you can remote turn on/off from anywhere at any time, set single/repeat/countdown timing schedules to turn on/off at a specified time, share to others so that they can control together.
Sonoff 4CH R2 is hacker-friendly that you can flash your firmware without difficulty. Read ESP8285 datasheet.
CE/FCC/RoHS Certified (Download the Certificate and Reports)
Works With Amazon Alexa:
You can ask Alexa to turn on/off Sonoff 4CH R2.
Standard voice control commands phrases (if you just say the device name, Alexa will turn on/off all the 4 gangs immediately):
Alexa, turn on {deviceName}
Alexa, turn off {deviceName}
Alexa, turn on {deviceName} {gangName}
Alexa, turn off {deviceName} {gangName}
The default names for the 4 gangs are: outlet 1, outlet 2, outlet 3, outlet 4. You can change the name if you like.
Explanation: if the device name of your Sonoff 4CH R2 is "My Switch", the gang name is "Outlet 1", then you can control with "Alexa, turn on My Switch Outlet 1".
For detailed tutorial, please click here.
Features:
Remote ON/OFF–Turn electrical devices on/off from anywhere
App Support –Free iOS and Android mobile App eWeLink
Independent control–Control each gang separately
DIN Rail Mounted– Great for industrial control
Sync Status–Real-time device status provided to App
Share Control–Control your smart home together with your family
Timing–Set scheduled/countdown timers to turn on/off at specified time
Scene–Turn on/off a gang of devices with one tap
Smart Scene–Triggered on/off by temp, or other environmental conditions from sensor
Compatibility –Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest
Specification:
Power Supply: 90V~250V AC(50/60Hz)
Max. Current: 10A/gang
Max. Power: 2200W/gang, 2200W/Total
Wireless Standard: 802.11 b/g/n
Security Mechanism: WPA-PSK/WPA2-PSK
Enclosure Material: Fire-retardant ABS V0
Gang: 4
Dimensions: 145*90*40 (mm)
Operating Temperature(recommended): 0ºC-40ºC(32°F-104°F)
Operating Humidity: 5%-90%RH, Non-condensing
Certification: CE/FCC/RoHS (Download the Certificate and Reports)
Package included:
1 x SONOFF® 4CH R2 Module
