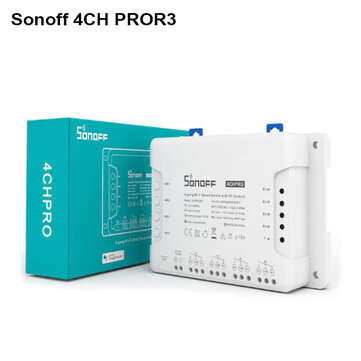

SONOFF 4CH R3 & 4CH PRO R3 AC100-240V 50/60Hz 10A 2200W 4 Gang WiFi DIY Smart Sw... (TYPE: 4CHPROR3)

SELECTED OPTION:
TYPE: 4CHPROR3

Overview:

SONOFF 4CH R3 & 4CH PRO R3 are both 4-gang DIY Wi-Fi Smart Switches designed to give you the ability to integrate smart control into your existing home to enable a smart home. Each smart switch has 4 gangs that can be used to control lights and other home appliances at the same time in four areas of your home. There is a major difference between 4CH R3 and 4CH PRO R3, which is 4CH PRO R3 is designed with an additional function for RF control. The function is purposely adopted to make you turn on/off the device connected with 4CH PRO R3 via the

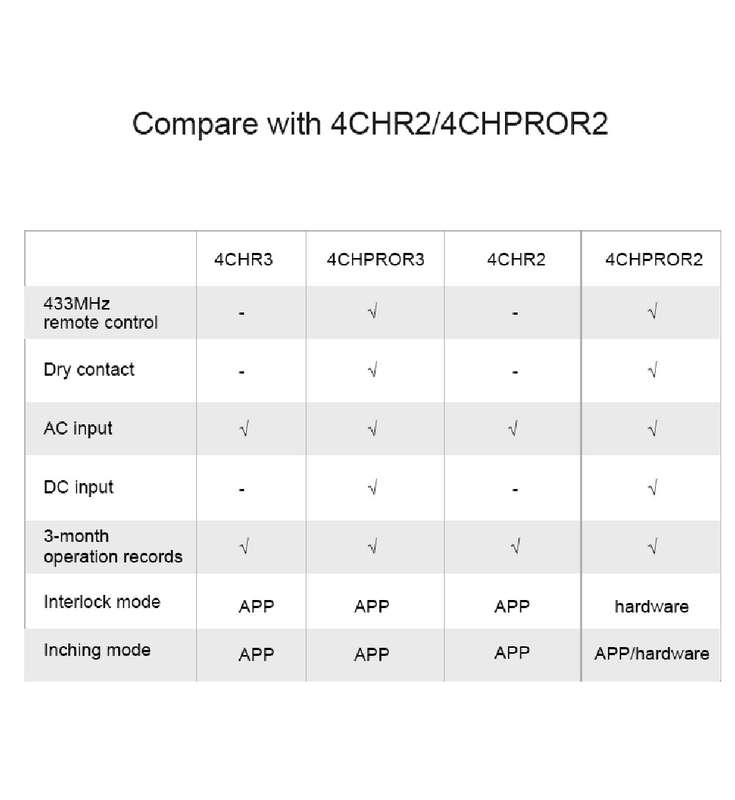

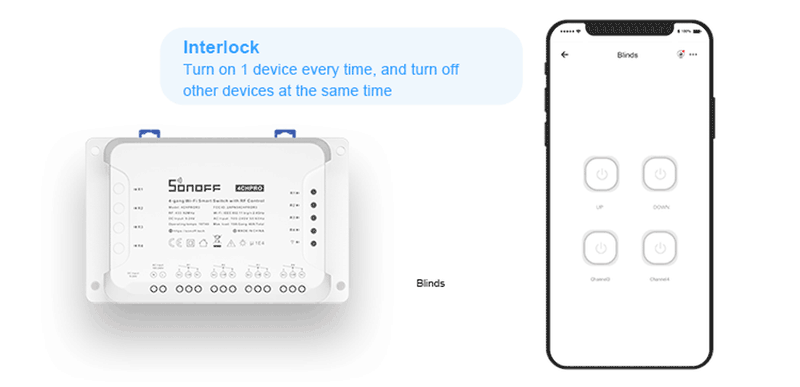

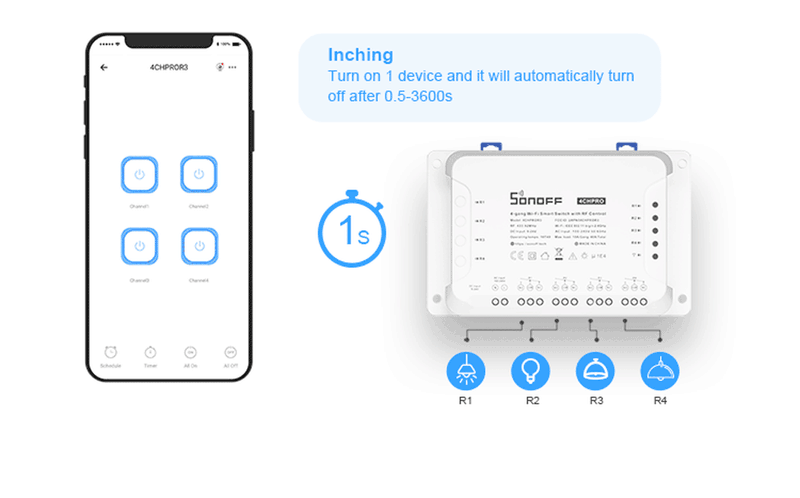

Actually, SONOFF has ever released two types of 4-gang smart switch ( and .) which comes with almost same functions with 4CH R3 and 4CH PRO R3. But all the above units are still different in 3 working modes including self-locking, interlock and inching mode. The new improvement on 4CH R3 and 4CH PRO R3 compared with 4CH R2 and 4CH PRO R2 is for users to set these 3 working modes on eWeLink APP instead of the hardware itself, easier to operate. So you can enable self-locking mode to turn on/off 4 connected devices separately, interlock mode to turn on 1 connected device every time and turn off the rest of devices simultaneously and inching mode to turn on 1 connected device and then make it turn off automatically after a given time (0.5 - 3600s). For the device away from the switch, you can create a moveable space in virtue of a DIN rail to make them be connected. Simply activate devices through your voice when the switch works with Alexa and Google Home smart assistant.

Features:

- Remotely control connected lights or devices via APP
- 3 working modes with self-locking, interlock and inching mode for even remote control garage door and roller blinds
- Support scheduling a timer to make devices automatically start and stop to work
- Customize smart scenes to make the device connected with the switch to trigger other devices
- Share the control permission of devices to other accounts to control together
- Check real-time ON/OFF status of devices on your mobile phone
- Power on state allows users to set the On/Off/Keep status for the connected device before power failure and ensure it remains the arranged status after power restoration

4CH R3 Specifications:

Voltage Range: 100-240V AC 50/60Hz
Max. Load: 10A/2200W/Gang 16A/3500W/Total
Wireless Frequency: WiFi 2.4GHz
Wireless Standard: IEEE802.11 b/g/n 2.4GHz(2400M-2483.5M)
Security Mechanism: WPA/WPA2
Enclosure Material: PC V0
Gang: 4
Dimension:145*90*34 (mm)
Operating Temperature(recommended): -10oC-40oC(14?ﾣF-104?ﾣF)
Operating Humidity: 5%-95%RH, Non-condensing
4CH R3 Certification: CE(), FCC ()

4CH PRO R3 Specifications:

Voltage Range: 100-240V AC 50/60Hz(DC: 9-23V)
Max. Load: 10A/2200W/Gang 40A/8800W/Total
Wireless Frequency: WiFi 2.4GHz
Wireless Standard: IEEE802.11 b/g/n 2.4GHz2.4GHz(2400M-2483.5M);
Security Mechanism: WPA/WPA2
Enclosure Material: PCV0
Gang: 4
Dimension:145*90*34 (mm)
Operating Temperature(recommended): -10oC-40oC(14?ﾣF-104?ﾣF)
Operating Humidity: 5%-95%RH, Non-condensing
4CH PRO R3 Certification: CE(), FCC ()

Download Center:




Package included:

1 x Sonoff 4CH R3 or Sonoff 4CH PRO R3
1 x User Manual
