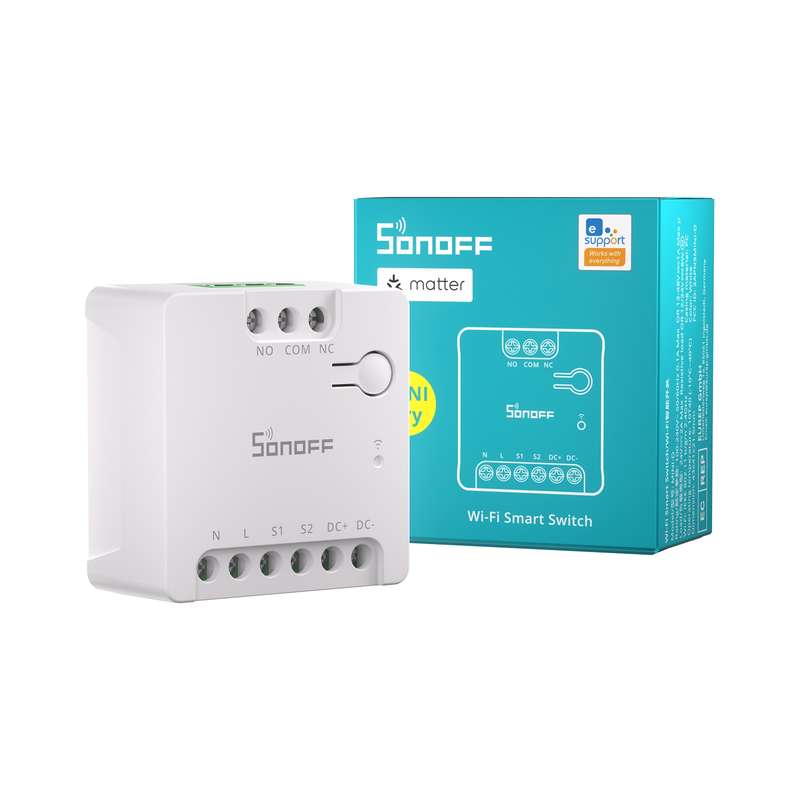

Sonoff Gate Controller (MINI-D)

Sonoff Gate Controller (MINI Dry)

The Sonoff MINI-D Smart Switch is a Matter compatible device.  Seamless integration with Alexa, Apple Home, Google Home, and Home Assistant for a unified smart home experience.

Designed for flexible power compatibility, the MINI-D supports AC or DC power sources, making installation easy in various environments. It features dry contact support, perfect for controlling garage doors, gates. Additionally, it can safely control high-power systems when used with a contactor.

With a DC low-power motor load capacity of up to 8W, this smart switch is ideal for managing DC solenoid valves, small motors, and similar low-power systems. Its compact and lightweight design ensures easy installation, making it a perfect addition to any smart home or industrial setup.

The Sonoff Mini D has to be set up in the following modes for Gate and Garage Doors: Switch Mode- Must Be in Pulse Mode. Inching Setting must be enabled at 0.5 Seconds and Auto Off.

** Please Note: AC and DC are not supported at the same time. It can be powered by AC or DC **

** A certified installer should install the switch otherwise warranty would be voided. **

** Application for NRCS and ICASA are currently under approval. **

**Please Note: The Sonoff Mini D does not have any External Sensors providing a open or closed status**

ICASA Certificate: TA-2025/02xx

Features

• Matter Compatible Works with Alexa, Apple Home, Google Home, and Home Assistant for unified smart home control.
• AC/DC Power Support Compatible with 100-240V AC and 12-48V DC, offering flexible installation.
• Dry Contact Support Ideal for controlling garage doors, gates, motors, and other dry contact devices.
• DC Low-Power Motor Load Supports DC motors/solenoid valves up to 8W, making it ideal for automation.
• Contactor Control Enhances safety and efficiency by managing high-power systems through a contactor.
• Wi-Fi Connectivity 2.4GHz Wi-Fi ensures stable wireless communication for remote control.
• Compact & Lightweight Design Easy installation in various environments with a 34.5g weight.

Specifications

• Model: MINI-D
• Wireless Connection: IEEE 802.11 b/g/n 2.4GHz
• Max.Load: 24V2A Max Resistive load OR 12/24V8W Motor Load
• Rating: 100-240V~50/60Hz 0.1A Max OR 12-48V1A Max
• Color: White
• Casing Material: PC
• Net Weight: 34.5g
