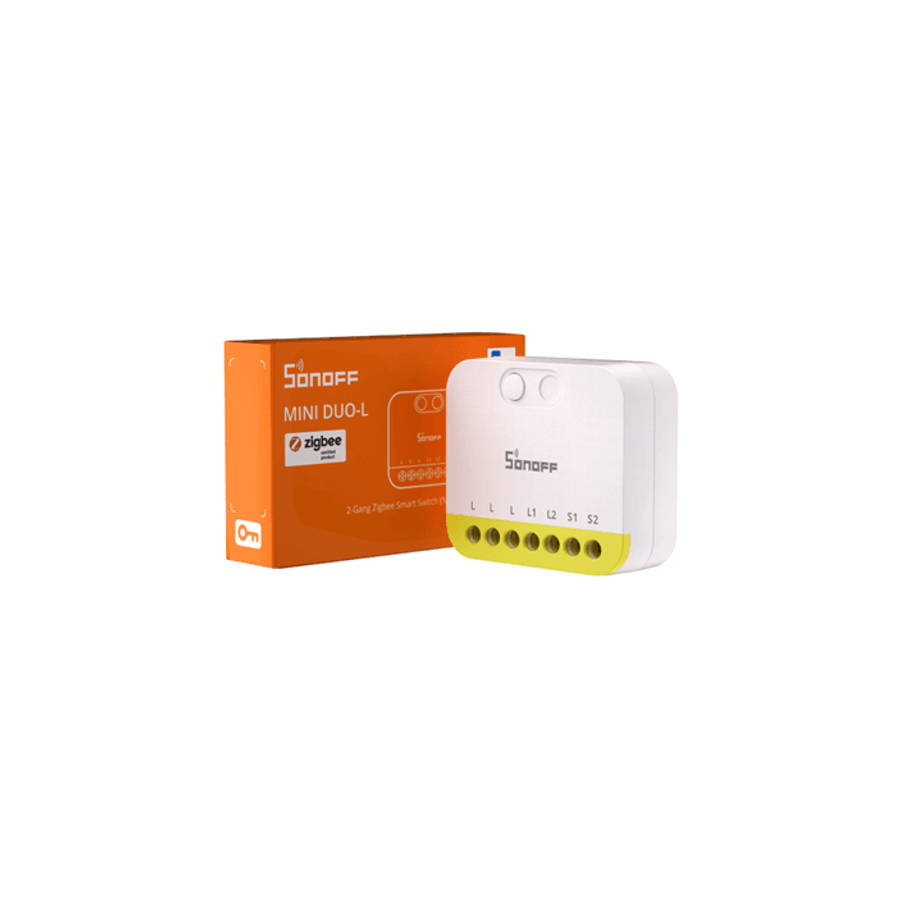

Sonoff Mini 2CH No Neutral (Zigbee)

Sonoff Mini Duo No Neutral (Zigbee)

The Sonoff Mini Duo No Neutral (Zigbee) has Dual Control for efficiency. The "Duo" capability allows you to control two distinct electrical circuits (2 Live Outputs) from a single unit. Despite this dual functionality, it retains the ultra-compact "Extreme" form factor, making it small.

Retain Physical Control Don't lose your traditional wall switches. The S1/S2 ports allow you to wire your existing 2-lever rocker switches directly to the unit, giving you the best of both worlds: smart app control and familiar physical switching.

Key Features:

• Zigbee 3.0 Protocol: Fast, reliable, and low-latency local control.
• 2-Channel Output: Control two separate electrical circuits independently.
• Hub Compatible: Works with Sonoff ZBBridge, SmartThings, and Amazon Echo (Zigbee).
• Extreme Size: Ultra-small body fits inside standard 2x4 or 4x4 wall boxes.

Product Specifications

• Product Type: Zigbee Smart Switch
• Model: Sonoff Zigbee Mini Duo (Extreme Series)
• Protocol: Zigbee 3.0 (IEEE 802.15.4)
• Input Voltage: 100-240V AC 50/60Hz
• Output: 2-Channel / 2-Gang
• Max Load: 16A Total (10A Max per Gang) Subject to final rating on unit
• Required Hardware: Zigbee Hub / Bridge (e.g., Sonoff ZBBridge Pro, iHost, NSPanel Pro)
• External Switch Support: S1/S2 Ports (Rocker/Pulse switch compatible)
• Range: Up to 30m (Indoor) / Extends via Mesh
• Casing Material: PC V0 (Fire Retardant)

Product Size and Weight

• Dimensions: 39.5 x 33 x 16.8mm
• Weight: ~32g
