Sonoff Mini L2 No Neutral (Zigbee)

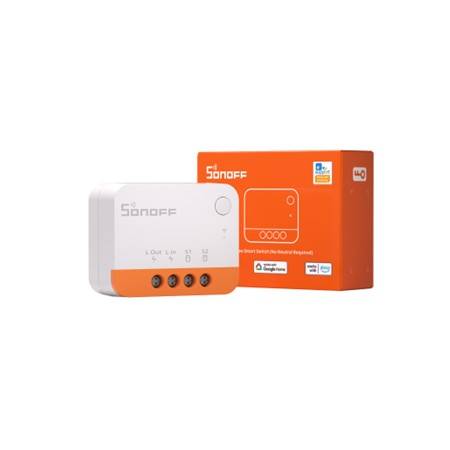

Sonoff Zigbee Mini-L2 (No Neutral Required)

Sonoff Zigbee Mini-L2 is a single channle switch. It is the replacment for the MINI-L and is 40% smaller , suitable for most size boxes, and leaves more space for DIY modification.
Although ZBMINIL2 is smaller, it has many functions: no neutral wire required,  two-way control, smart timer/ scene, supports diffrent types of wall switches, etc.

Features

• Super Tiny Size- The tiniest Zigbee smart switch can be easily fit in the smallest EU-type/86 type/120 type mounting box.
• Support External Switch- Work with different type of external switches to control your devices, like rocker light switch, push button wall switch, etc. No neutral wire required for easy installation & simple use.
• Simple and Reliable- As a Zigbee 3.0 switch, ZBMINI Extreme can combine with Zigbee hubs to form a home LAN, No longer worry about no internet, you are able to freely control the appliances normally even the light is as low as 3W, no anti-flicker module is required.
• Application Scenes- ZBMINI Extreme can achieve two-way control for your staircase light; set countdown/scheduled/loop timers to create your situational life; work well with Amazon Alexa and Google home to turn on/off your light by voice command; support setting the smart scene to trigger connected devices to make your life easier.

* Requires a ZigBee Bridge *

NRCS and Icasa approved

NRCS product registration number: 194288/001

Back To Shop

Manual

Specifications

• Brand: SONOFF
• Model: ZBMINIL2
• Wireless Connections: Zigbee 3.0
• Dimension: 39.5X32X18.4mm
• Casing material: PC V0
• Input: 100-240V ~ 56/60Hz 6A Max
• Output: 100-240V ~ 56/60Hz 6A Max
