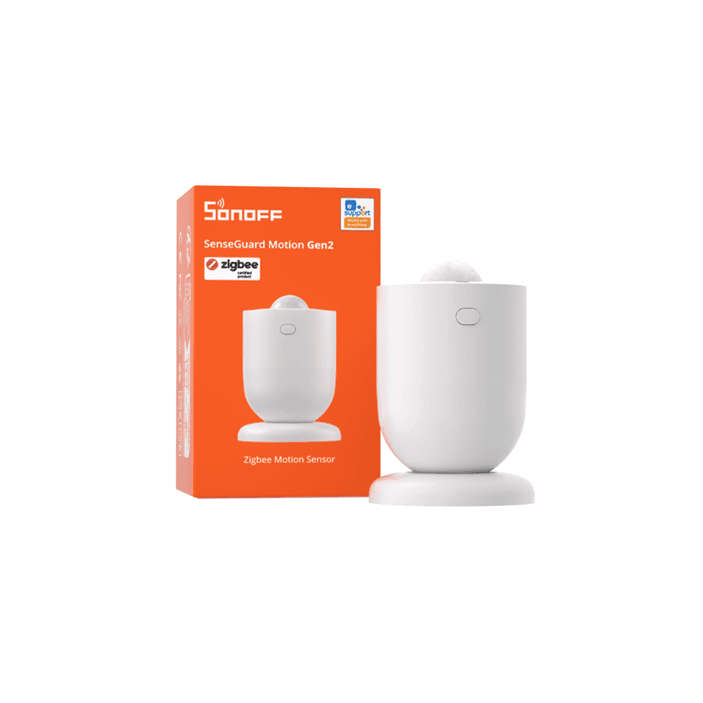

Sonoff Motion Sensor R2 (Zigbee)

Sonoff Motion Sensor R2 (Zigbee)

The Sonoff Motion Sensor R2 (Zigbee) uses responsive PIR detection with an adjustable cooldown period from 5 to 60 seconds, helping reduce unnecessary triggers and create smoother automations. Its built-in independent light sensor allows precise lux-based triggers and stores up to 6 months of illumination history, ideal for energy-efficient lighting setups. With a 120° detection angle and 6m range, it delivers stable, accurate coverage across wider spaces. Install it with adhesive, magnetic, or standalone mounting, and adjust the sensor head to avoid pet activity or fine-tune detection. Powered by a long-life CR2477 battery, it runs for up to 3 years with minimal maintenance.

Requires a Zigbee gateway/hub for connectivity (sold separately).

Specifications

• Product Name: Sonoff Motion Sensor R2 (Zigbee)
• Product Series: SenseGuard Series
• Model: SNZB-03PR2
• Wireless Connectivity: Zigbee 3.0 (IEEE 802.15.4)
• Power Input: 3V
• Battery Model: CR2477
• Battery Life: Up to 3 years
• Detection Angle: 120°
• Detection Distance: 6m
• Communication Distance: Up to 100m (open area)
• Pairing Time: 180 seconds
• Net Weight: 42.7g (with battery)
• Product Dimensions: 44 x 44 x 65mm
• Colour: White
• Casing Material: PC (polycarbonate)
• Applicable Place: Indoor
• Operating Temperature: -10°C ~ 60°C
• Operating Humidity: 5-95% RH, non-condensing
• Certifications: CE / FCC / RoHS
