SONOFF NS PANEL PRO DIM GRAY NSPANEL86PB

Description

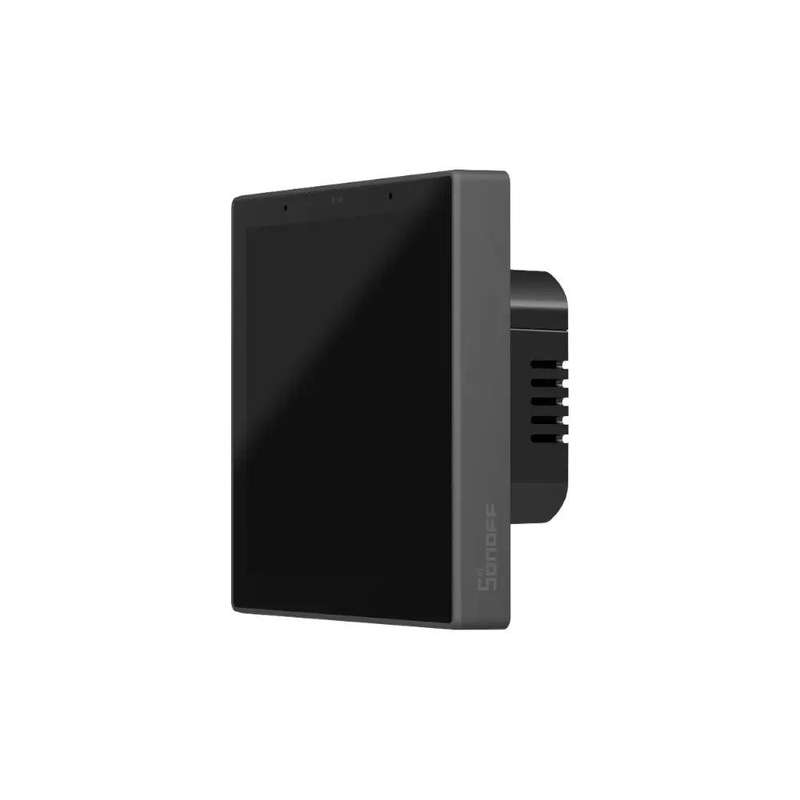

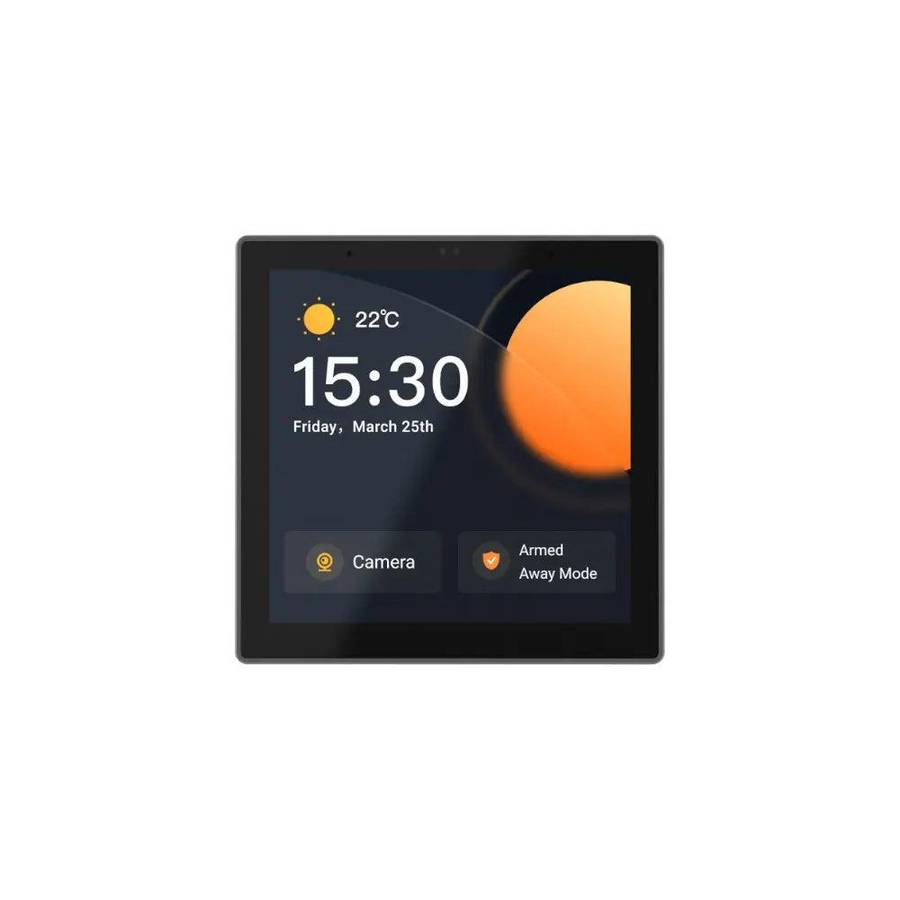

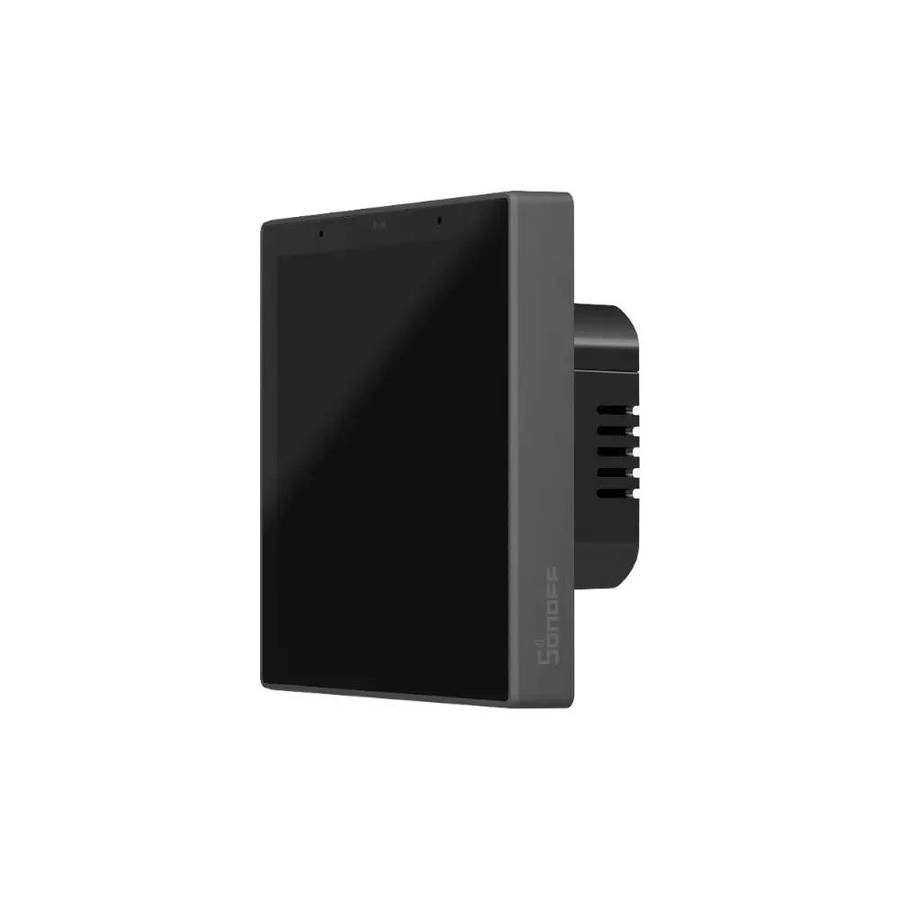

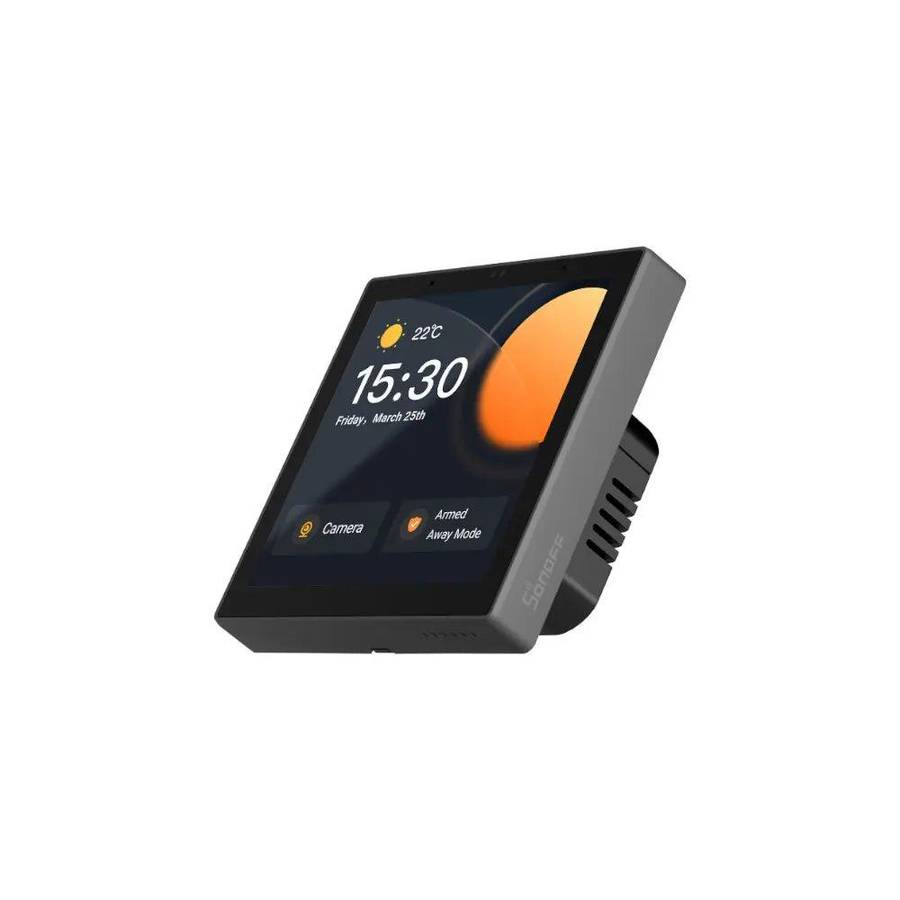

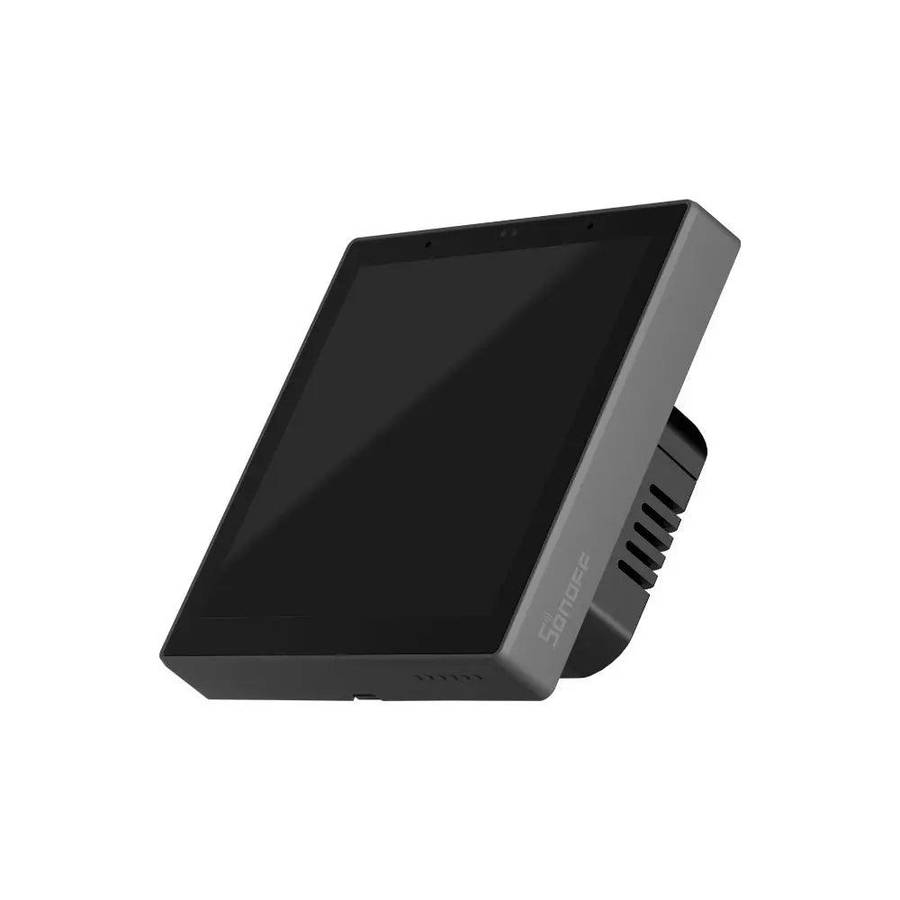

Sonoff NSPanel Pro Smart Home Control Panel

Sonoff NSPanel Pro is a smart home control panel. Your smart lights, switches, curtains, and all your smart devices can be controlled.
An unlimited number of control devices, all in one panel.

NSPanel Pro can quickly add Zigbee devices on the screen in batches. Standard Zigbee 3.0 protocol makes the connection more stable and the coverage wider. Supports all Sonoff Zigbee devices such as Zigbee Sensors, ZBMINI, and BASICZBR3.

NSPanel Pro can be used as a display, supports adding of cameras for live monitoring. Viewing the real-time monitoring of living room, garage, bedroom, etc on the panel at any time.

Power Consumption Graph, Customize Wallpaper, and Call Intercom.

NSPanel Pro can be used in conjunction with the NSPanel Desk Stand White

Note :

*Sonoff Desk Enclosure Stand for NSPanel & NSPanel Pro (Grey) Required*

*When power is lost, the QR code on the display must be scanned to activate every time. (No configurations are lost)

**NSPanel Pro does NOT have any physical buttons, only desktop control unit

***If you do choose to wall mount, please note the Size is 3×3 not 2×4.

Specifications

• Zigbee: IEEE 802.15.4 (Zigbee 3.0)
• Wi-Fi: IEEE 802.11 b 2.4GHz
• Input:100-240V AC 50/60Hz
• Max Power Consumption: 5W MAX; 150mA
• TFT Screen Size: 3.95 (Capacitive Screen)
• Screen Resolution: 480 x 480
• MCU: PX30
• CPU: 4-cores Cortex-A35
• GPU: Mali-G31GPU
• RAM: 2GB, DDR3
• ROM: 8GB, eMMC 5.1
• Certifications: CE/UKCA/ SRRC/RoHS
• Shell Materials: PC V0+CRS+Toughened Glass
• Dimension: 86x86x39.5mm







Please Note : Product pictures may vary from the actual product

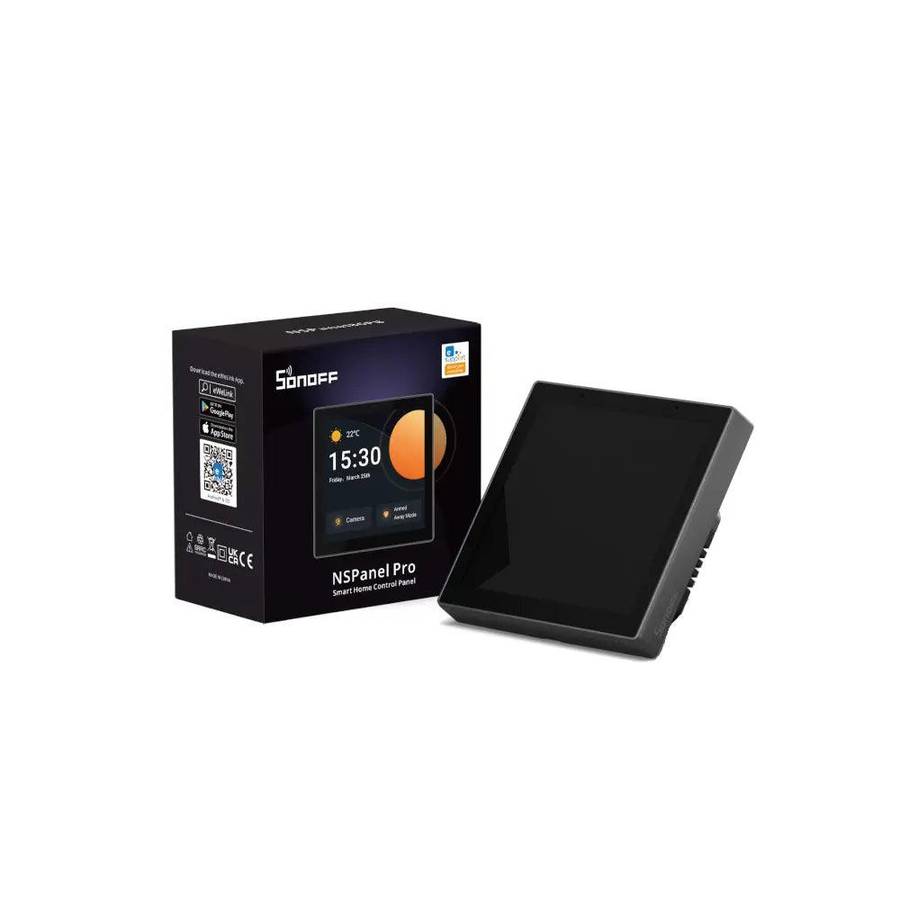

What's in the box :

1 X Sonoff NS Dim Gray Smart Home Control Panel
1 X Mounting Screws
1 X Quick Start Up Guide
