Sonoff NSPanel Pro (Grey 86)

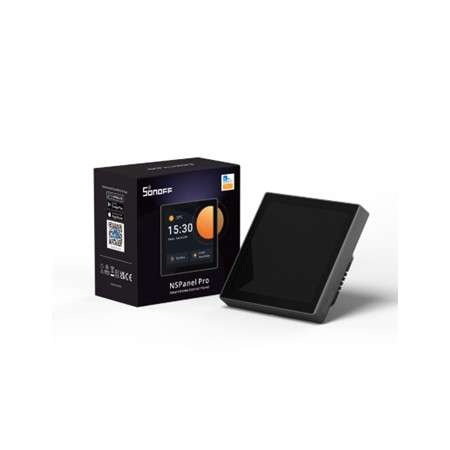

Sonoff NSPanel Pro Smart Home Control Panel

NSPanel Pro is a smart home control panel. Your smart lights, switches, curtains, and all your smart devices can be controlled.
An unlimited number of control devices, all in one panel.

Sonoff NSPanel Pro can quickly add Zigbee devices on the screen in batches. Standard Zigbee 3.0 protocol makes the connection more stable and the coverage wider. Supports all Sonoff Zigbee devices such as Zigbee Sensors, ZBMINI, and BASICZBR3.

You can use NSPanel Pro as a display, and it supports the addition of cameras for live monitoring. You can view the real-time monitoring of the living room, garage, bedroom, and other areas on the panel at any time.

Power Consumption Graph, Customize Wallpaper, and Call Intercom.

You can use NSPanel Pro in conjunction with the NSPanel Desk Stand Grey

Note:

**NSPanel Pro Desk Stand Required**

*When power is lost, the QR code on the display must be scanned to activate every time. (No configurations are lost)

**NSPanel Pro does NOT have any physical buttons, only a desktop control unit

***If you do choose to wall mount, please note the Size is 3x3 not 2x4.

Back To Shop

Specifications

• Zigbee: IEEE 802.15.4 (Zigbee 3.0)
• Wi-Fi: IEEE 802.11 b 2.4GHz
• Input:100-240V AC 50/60Hz
• Max Power Consumption: 5W MAX; 150mA
• TFT Screen Size: 3.95" (Capacitive Screen)
• Screen Resolution: 480 x 480
• MCU: PX30
• CPU: 4-cores Cortex-A35
• GPU: Mali-G31GPU
• RAM: 2GB, DDR3
• ROM: 8GB, eMMC 5.1
• Certifications: CE/UKCA/ SRRC/RoHS
• Shell Materials: PC V0 CRS Toughened Glass
• Dimension: 86x86x39.5mm
• NSPanel Pro Specs
