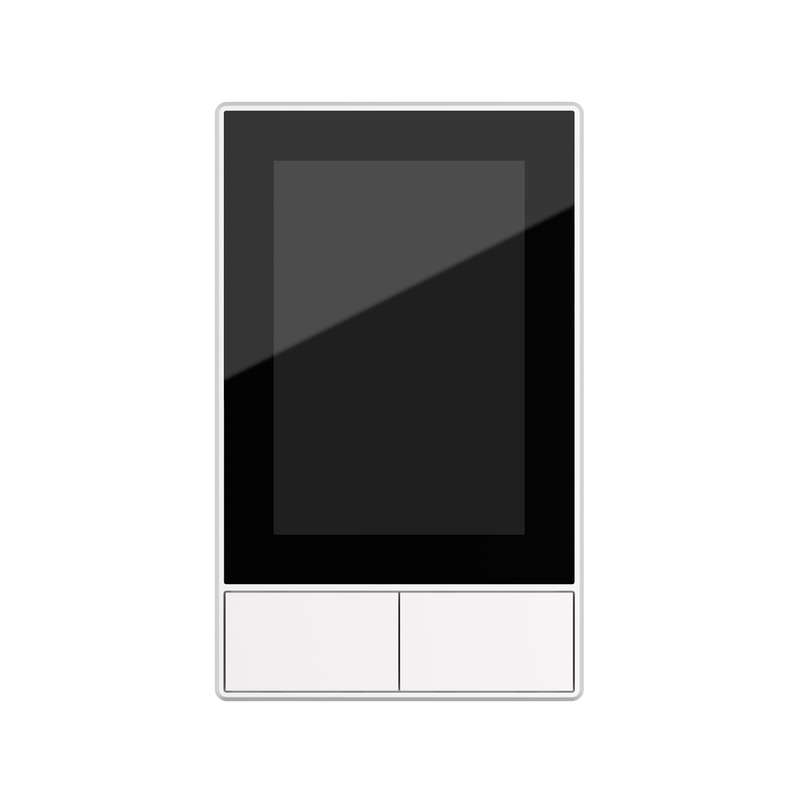

Sonoff NSPanel Smart Display Switch (White)

Sonoff NSPanel Smart White

The Sonoff NSPanel Smart White centrally integrates HMI Control, smart temperature control as well as smart wall switch control, turning your home into a convenient and smart place.

Centrally control multiple electrical appliances in your home such as lights, heaters, coolers, curtains, doors and window !
NSPanel can control all of these devices, all you need to do is a single tap.

In addition the NSPanel Smart Scene Wall Switch is equipped with a built-in powerful thermostat and environmental sensors. You can set different indoor temperatures for different periods of time, and NSPanel will automatically trigger your heating or cooling equipment according to your set conditions in order to keep the room at a comfortable temperature.
What's more, NSPanel has a Scenario-based control function, you can set different modes for wake up, work, entertainment and sleep and can switch modes at any time.

There are three ways you can control Sonoff NSPanel Smart Scene Wall Switch: use the dual-channel switches or touchscreen at a close distance, use the eWeLink APP to control when you are at a long distance or voice control.

Sonoff NSPanel is compatible with various devices of Sonoff, such as smart LED Filament Bulb, LED light strips, LED bulbs, S26 plugs, TX Series switches, MINIR2, POWR3!

Features

• All in One Control Center - Compatible with almost all Sonoff devices and the central control function of the control group
• Integrated HMI Panel - Centrally integrates HMI control, smart temperature control, and smart wall switch
• Built-in Thermostat - Automatically trigger heating or cooling equipment according your timings and settings
• Multiple Control Methods - Use the dual-channel switches, touchscreen and eWeLink App
• Voice Control Support- Alexa, Alice, Google Assistant, and even Siri Shortcuts, so you can control your home appliances with simple voice control
• Real-time updates - With built-in sensors and WiFi connection, NSPanel smart scene wall switch can real-time update the weather, indoor temperature, outdoor temperature, time and date.

LoA and Icasa approved.

Back To Shop

Specifications

• Colour - White
• Input - 100-240V~ 50/60Hz 4A Max
• Output - 100-240V~ 50/60Hz 2A/Gang 4A/Total
• LED Load - 150W/110V/Gang, 300W/110V/Total, 300W/220V/Gang, 600W/220V/Total
• Wi-Fi - IEEE 802.11 b/g/n 2.4GHz
• Bluetooth  Standard - 4.2 BLE
• TFT Screen Size - 3.5" (Capacitive Touch Panel)
• Screen Resolution - 480*320px
• APP Operating Systems - Android & iOS
• Shell Materials - PC V0+CRS+Toughened Glass
• Dimensions - NSPanel-US: 120x74x41.7mm, NSPanel
• Certifications - NSPanel-US: CE/CQC/SRRC/RoHS
