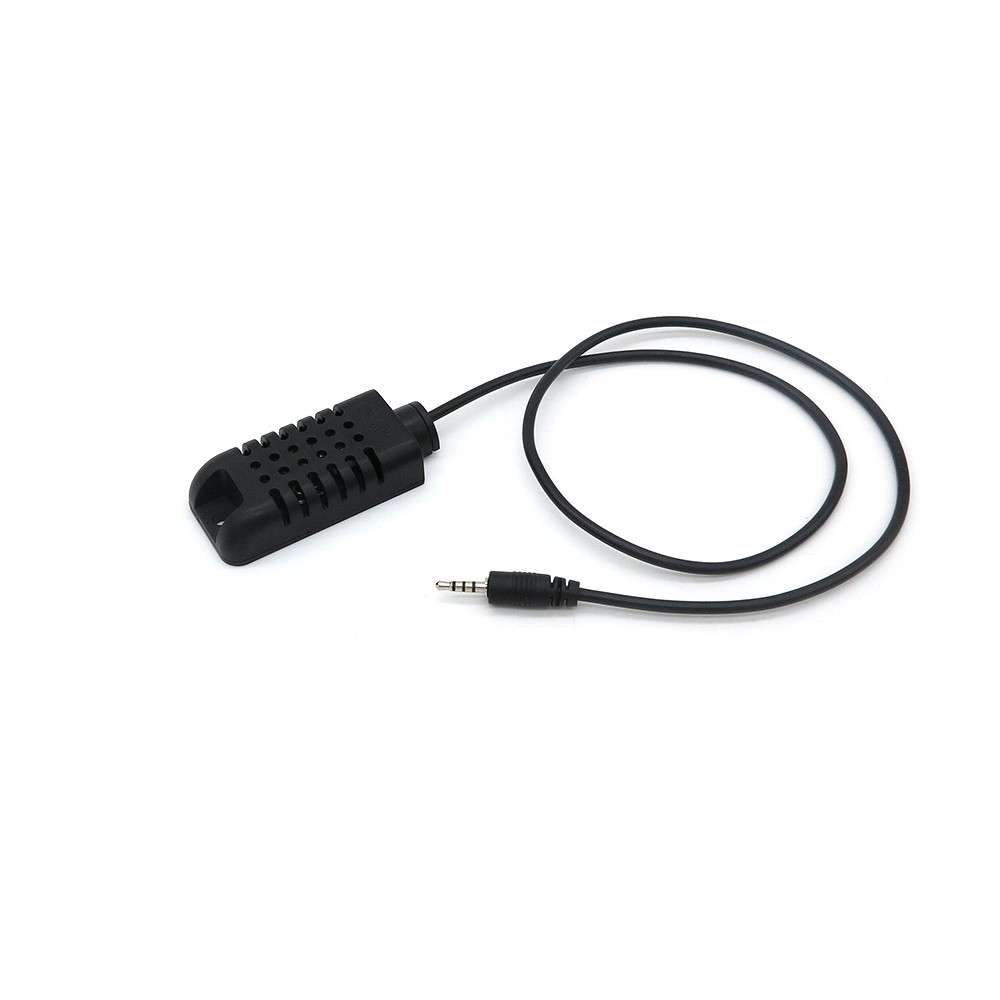

Sonoff Sensor AM2301

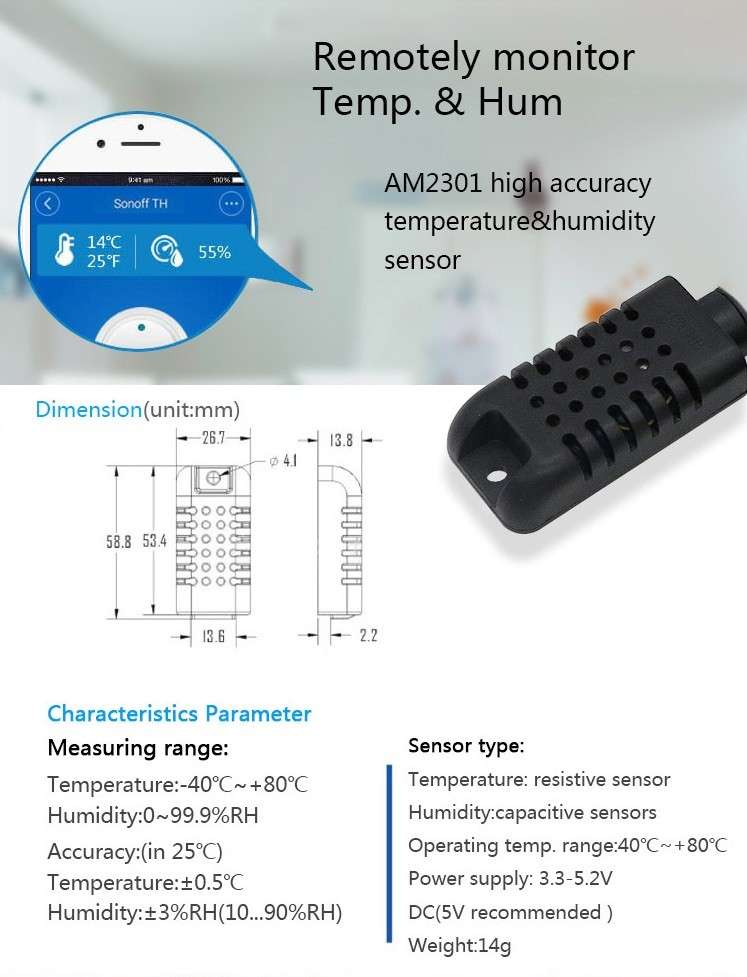

AM2301 high accuracy temperature & humidity sensor.

Measuring Range:

• Temp: -40'C ~ +80'C
• Humidity: 0 ~ 99.9%RH
• Accuracy: (in 25'C)
• Temp: +- 0.5'C
• Humidity: +-3%RH(10...90%RH)

Sensor Type:

• Temperature: Resistive Sensor
• Humidity: Capactive Sensors
• Operating Temp range: 40'C ~ +80'C
• Power supply: 3.3 - 5.2V
• DC (5v recommended)
• Weight: 14g

An important feature of Sonoff TH 10/16 is that it can work as a Sonoff when not connected to sensors. But compared to Sonoff, Sonoff TH16 is safer, larger in size, emits lower radiation, and easy to operate.

Most importantly, with the latest eWeLink mobile application, customers can create a series of simple conditional statement (Smart Scene). This means users can use Sonoff TH10 or Sonoff TH16 with AM2301, DS18B20 or DHT11 sensor to collect temperature/humidity data, which can be shared to some smart home devices, such as Sonoff, Sonoff RF, Sonoff SV, smart socket etcetera. Thus, other devices set up a temperature/humidity condition to turn on/off connected appliances. This is called Smart Scene (see below pic). This device works perfectly with electric fan, air conditioner, humidifier, smart fish tank, watering system and many other appliances.
