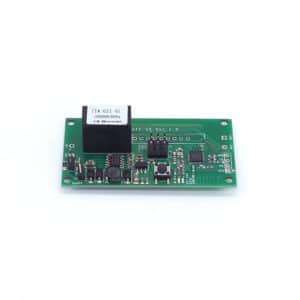

Sonoff SV 5 - 24V WIFI Wireless Switch

Sonoff SV 5 - 24V WIFI Wireless Switch.

Sonoff SV is a low-voltage switch. The low-voltage light switch supports a 5-24V power supply. Power supply separation enables it to control both AC and DC power, although some soldering is required for this purpose. It has GPIO reserved to support secondary development.

Sonoff SV low voltage WiFi switch is an affordable device that provides customers with smart home control. The low-voltage WiFi switch is a WiFi-based wireless switch that can connect to a wide range of appliances. Sonoff SV low voltage remote switch transmits data to a cloud platform through the WiFi Router, which enables customers to remotely control all the connected appliances, via the mobile application eWeLink. The cloud server of Sonoff SV is Amazon AWS global server.

Sonoff SV low voltage wireless remote switch makes all home appliances smart. As long as the mobile has a network, customers can remotely control the appliances by turning them on or off from anywhere at any time. Another feature available is to set timing schedules for the appliances, which can include countdown, scheduled on/off, and can thus, help customers maintain an easy life.

The mobile application eWeLink enables customers to control their appliances easily. The iOS version of the application can be downloaded from App Store while the Android version in Google Play.

Sonoff SV 5 - 24V WIFI Wireless Switch Specs:

• Operating Voltage: 5 ~ 24V
• Operating Current Average: 80mA
• Output Current: 250VAC 10A / 30VDC 10A
• Wireless Parameter
  • Wireless Standard: 802.11 b/g/n
  • Frequency Range: 2.4GHz-2.5GHz (2400M-2483.5M)
• Operating Temperature: 0 ~ 40C
• Dimensions: 65 x 34 x 16mm
• Weight: 15g

Wiring Layout:

Resources:

• User Manual
