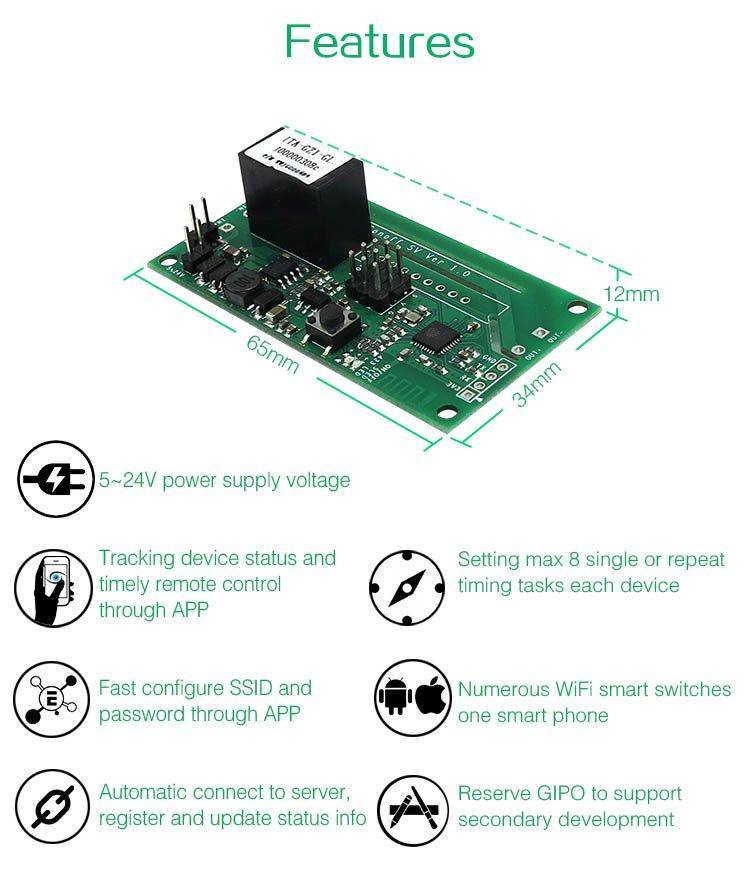

PRODUCT DESCRIPTION
- Support 5~24V power supply.
- Support fast configure SSID and password through APP.
- Support automatic connect to server, register and update status info.
- Support tracking device status and timely remote control through APP.
- Support setting max 8 single or repeat timing tasks each device Reserve GIPO to support secondary development
- Reserve GIPO to support secondary development.
- Support numerous WIFI smart switches one smart phone.
WIFI Characteristics:
- 802.11 b / g / n
- Built-in Tensilica L106 ultra-low power consumption 32-bit micro-MCU, dominant frequency support 80 MHz and 160 MHz, support RTOS
- Built-in TCP / IP protocol stack
- Built-in TR switch, balun, LNA, power amplifier and matching network
- Built-in PLL, voltage regulator and power supply management components, 802.11b mode +20 dBm output power
- A-MPDU&A-MSDU aggregation and 0.4s guard interval
- WIFI @ 2.4 GHz, supports WPA / WPA2 safe mode
- Support cloud OTA upgration
- Support STA / AP / STA + AP mode
- UART, I2C, PWM, GPIO
- Deep sleep maintain current is 10 uA, shutdown current is less than 5 uA
- Wake-up, connect and transfer data packets in 2 ms
- Standby power consumption is less than 1.0 mW (DTIM3)
- Operating temperature range: -40 - 125
Other parameters as follows
- Remote ON/OFF—Turn electrical devices on/off from anywhere
- LAN Control —Turn on/off the device even when WiFi has no Internet access
- Low Power Supply—5-24V DC low voltage input
- App Support —Free iOS and Android mobile App eWeLink
- Sync Status—Real-time device status provided to App
- Timing—Set scheduled/countdown timers to turn on/off at specified time
- Share Control— Control your smart home together with your family
- Scene—Turn on/off a gang of devices with one tap
- Smart Scene—Triggered on/off by temp, hum or other environmental conditions from sensor
- Compatibility —Works perfectly with Amazon Alexa, Google Assistant, IFTTT, Google Nest

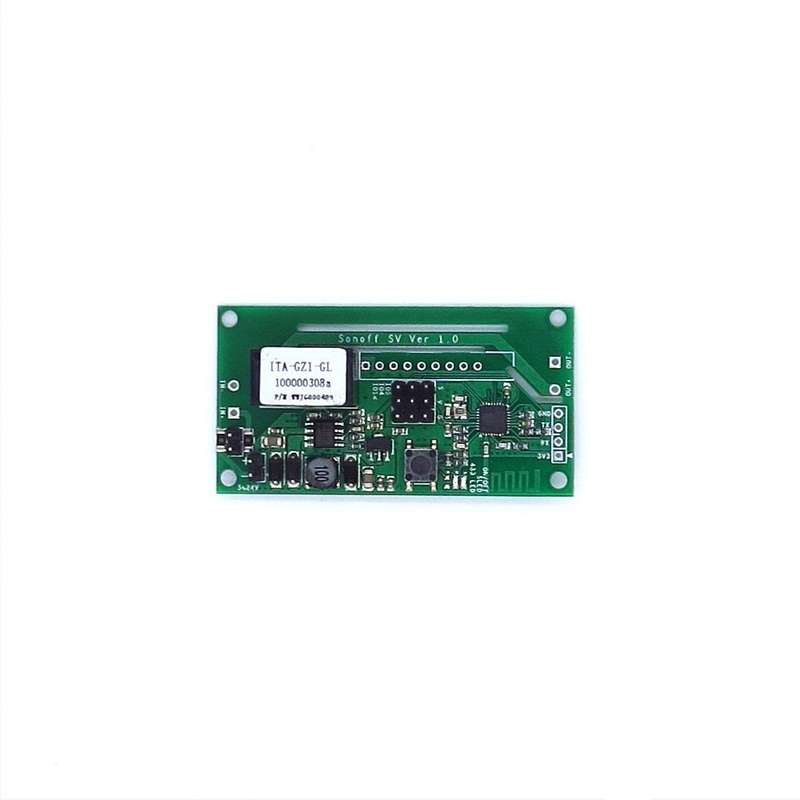

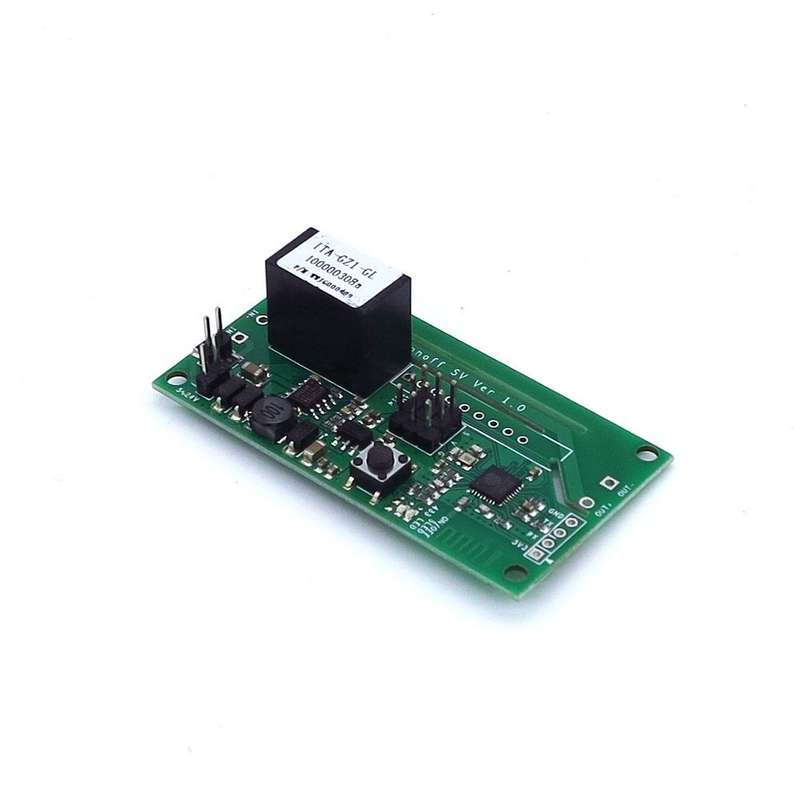

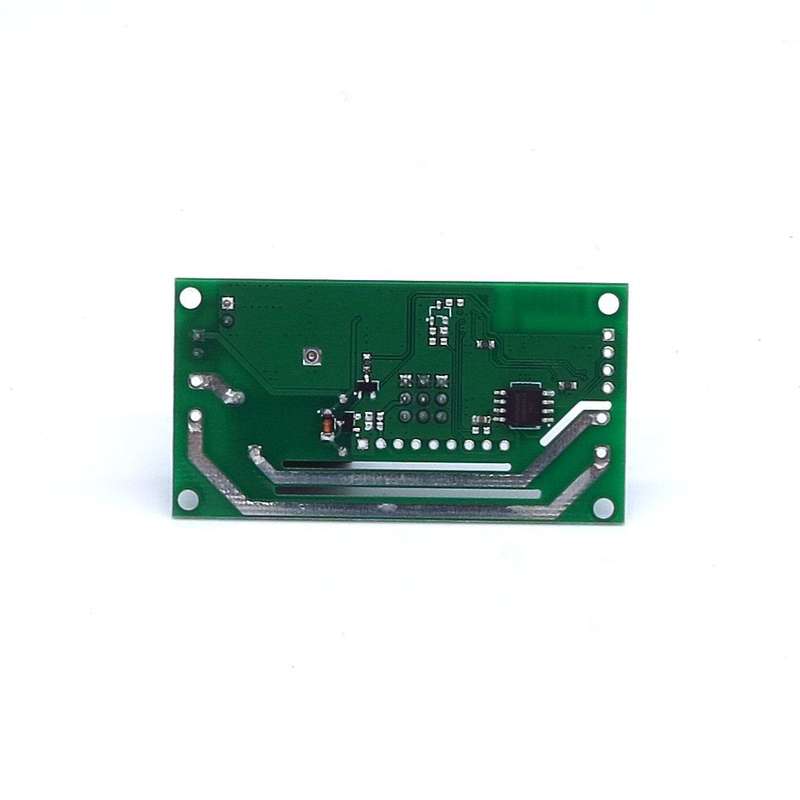

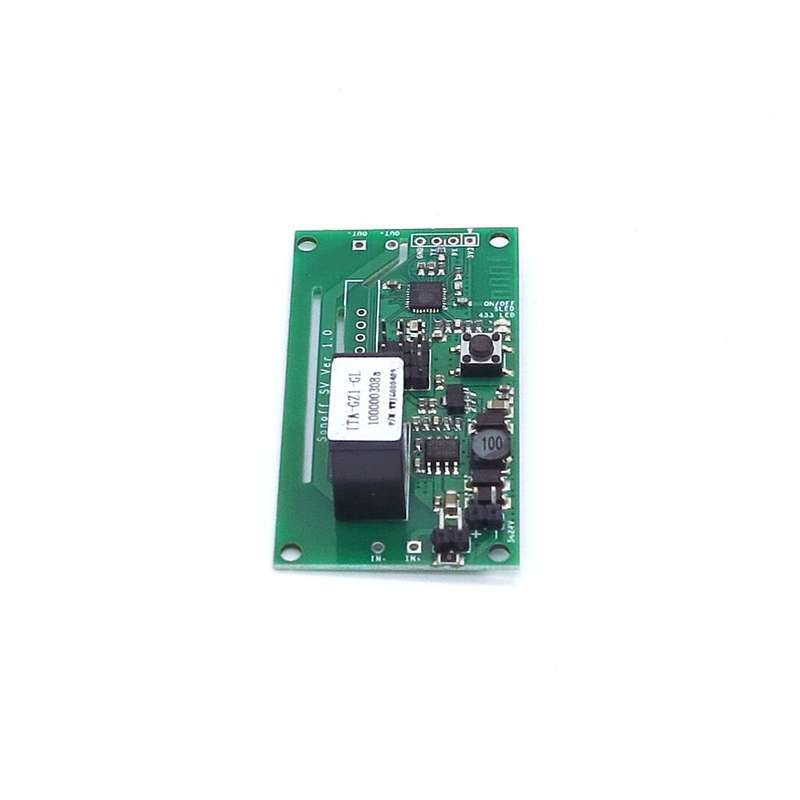

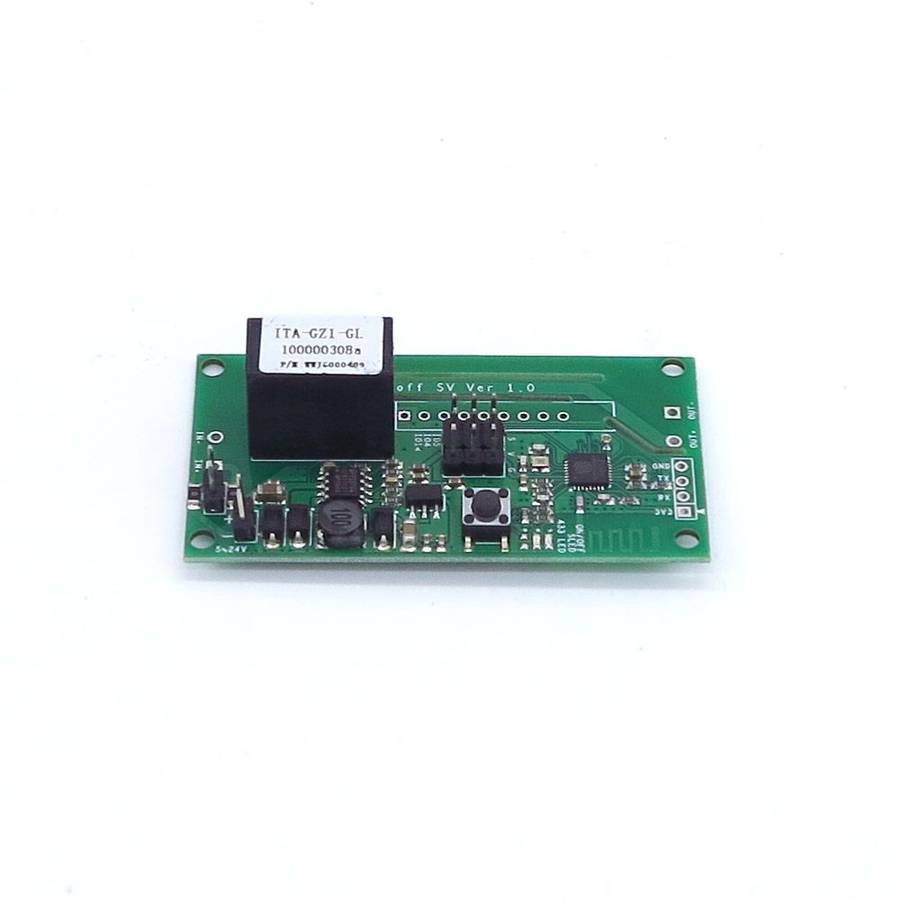

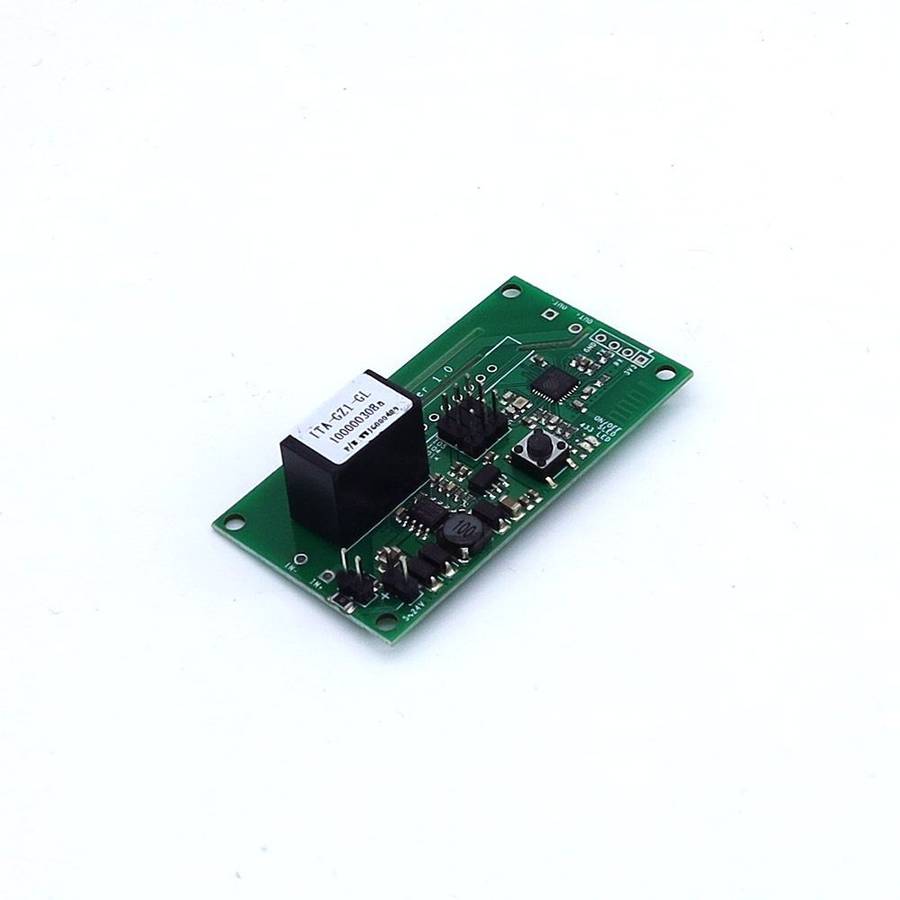

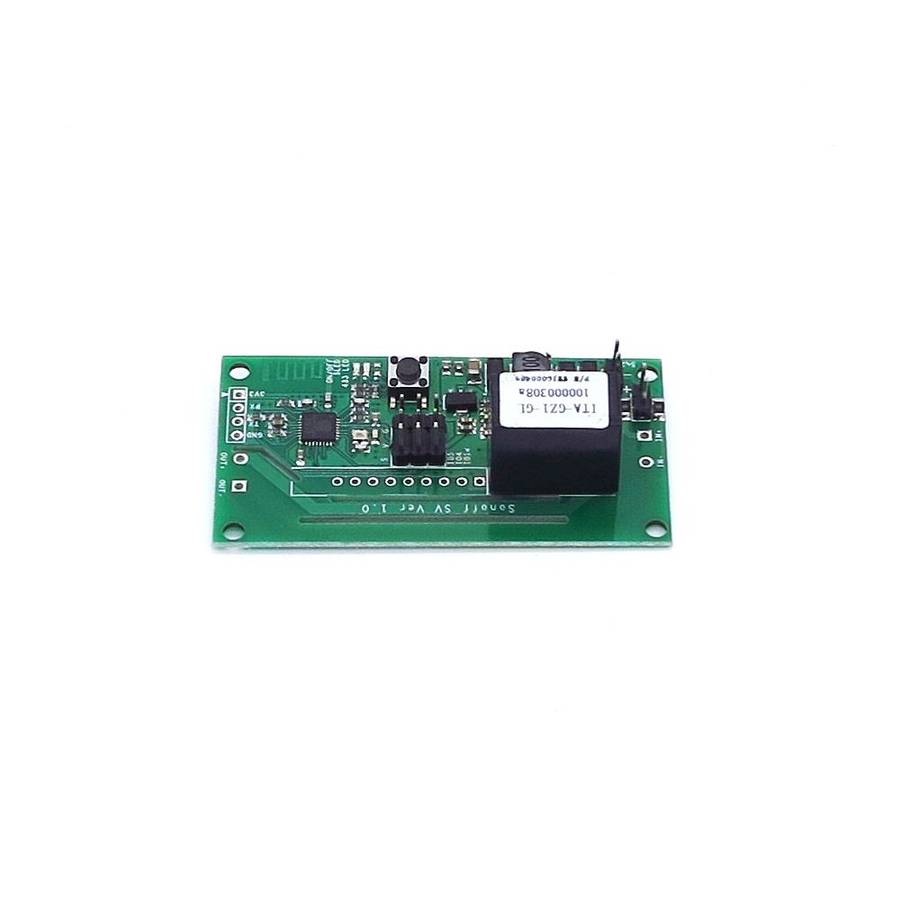

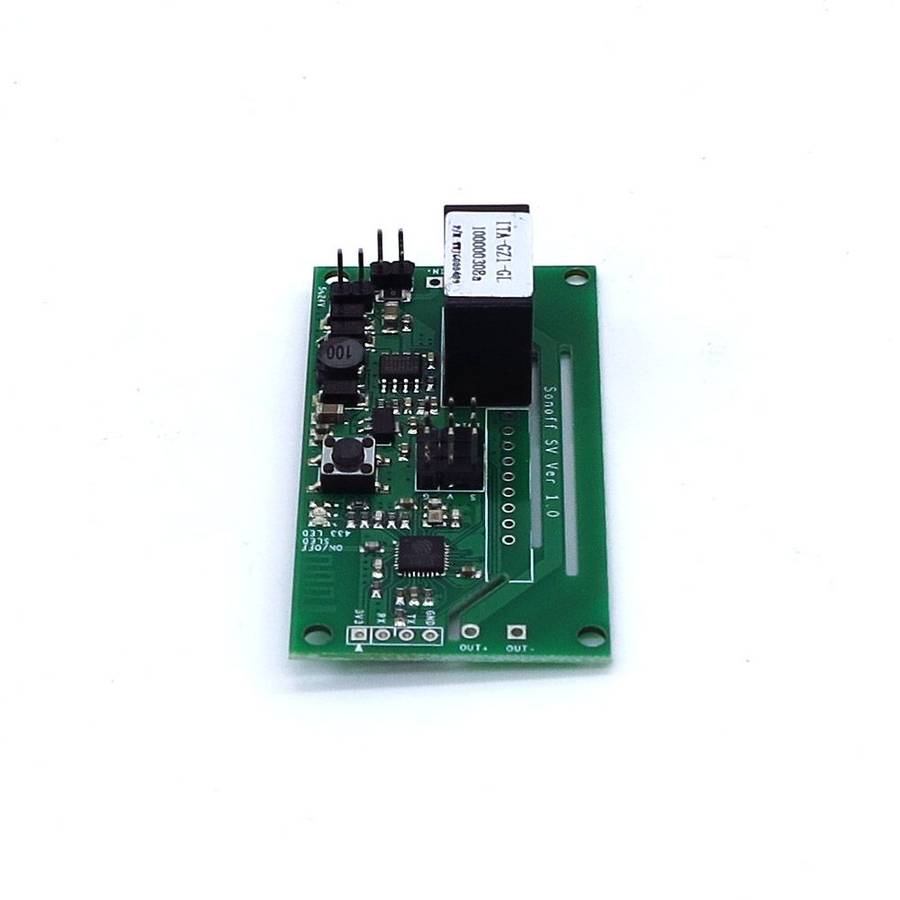

Sonoff SV is a low voltage switch which supports 5-24V power supply. Power supply separation enables it to control both AC and DC power, although some welding is required for this purpose. It has GIPO reserved to support secondary development. This product does not have 433 RF function and shell.
Sonoff SV low voltage WiFi switch is an affordable device that provides customers with smart home control. The low voltage WiFi switch is a WiFi based wireless switch that can connect to a wide range of appliances. Sonoff SV low voltage remote switch transmits data to a cloud platform through the WiFi router, which enables customers to remotely control all the connected appliances, via the mobile application eWeLink. The cloud server of Sonoff SV is Amazon AWS global server.
Sonoff SV low voltage wireless remote switch makes all home appliances smart. As long as the mobile has network, customers can remotely control the appliances by turning them on off from anywhere at any time. Another feature available is to set timing schedules for the appliances, which can include countdown, scheduled on/off, and can thus, help customers maintain an easy life.
The mobile application eWeLink enables customers to control the appliances easily. The iOS version of the application can be downloaded in App Store while the Android version in Google Play.
Check out the amazing features of Sonoff below:
