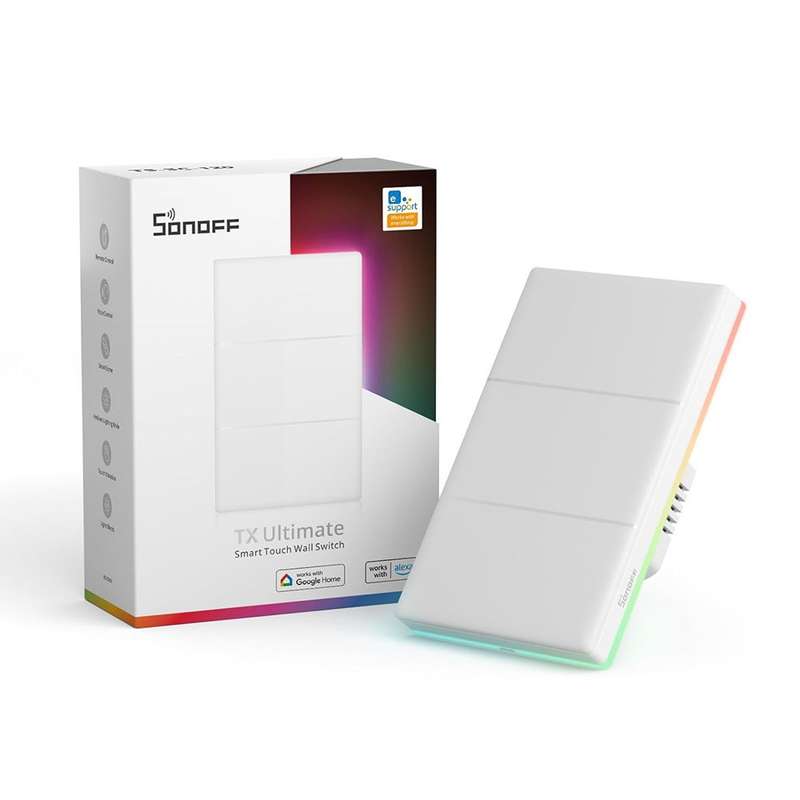

SONOFF TX Ultimate - Smart Touch Wall Switch - (Requires Neutral Wire) 1 Gang

Features

Full Touch Access

Occupies nearly the entire panel for a larger touchable area.
Enables easy on/off control with a light press.

Smart LED Light

Features a circle of RGB color edge lights.
Serves as a switch status indicator.
Doubles as a night light or ambient light, providing illumination at night.

Multi-sensory Touch Experience

Integrates LED light, speaker, and built-in motor.
Pressing the switch triggers simultaneous light transition, sound transition, and panel vibration.
Offers a futuristic touch feedback for an immersive user experience.

Replaceable Switch Cover

The cover is replaceable, offering star-style and cartoon-style options.
Allows customization to match different decoration themes.

eWeLink-Remote Control

Functions as a smart switch with the gateway function of "eWeLink-Remote."
Requires use with S-MATE or scene remote controller R5 for "eWeLink-Remote" control.
Effortlessly controls lighting for a sleek and sophisticated switch.

Voice Assistant Compatibility

Compatible with voice assistants for enhanced convenience.

Customizable Scheduling

Allows scheduling for personalized automation.

Versatile Compatibility

Adaptable to various devices and systems.

Easy Installation

Simple installation makes it a perfect addition to modern living.

Specifications

Color: White
Casing Materials: PC+CRS
Dimensions: 120x74x39mm
Wi-Fi: IEEE 802.11 b/g/n 2.4GHz

Model

T5-1C-120 (1 Gang)
T5-2C-120 (2 Gang)
T5-3C-120 (3 Gang)
T5-4C-120 (4 Gang)

Input

1C: 100-240V ~ 50/60Hz Max 5A
2C: 100-240V ~ 50/60Hz Max 10A
3C: 100-240V ~ 50/60Hz Max 15A
4C: 100-240V ~ 50/60Hz Max 16A

Output

1C: 100-240V ~ 50/60Hz Max 5A
2C: 100-240V ~ 50/60Hz Max 5A/Gang 10A/Total
3C: 100-240V ~ 50/60Hz Max 5A/Gang 15A/Total
4C: 100-240V ~ 50/60Hz Max 4A/Gang 16A/Total
