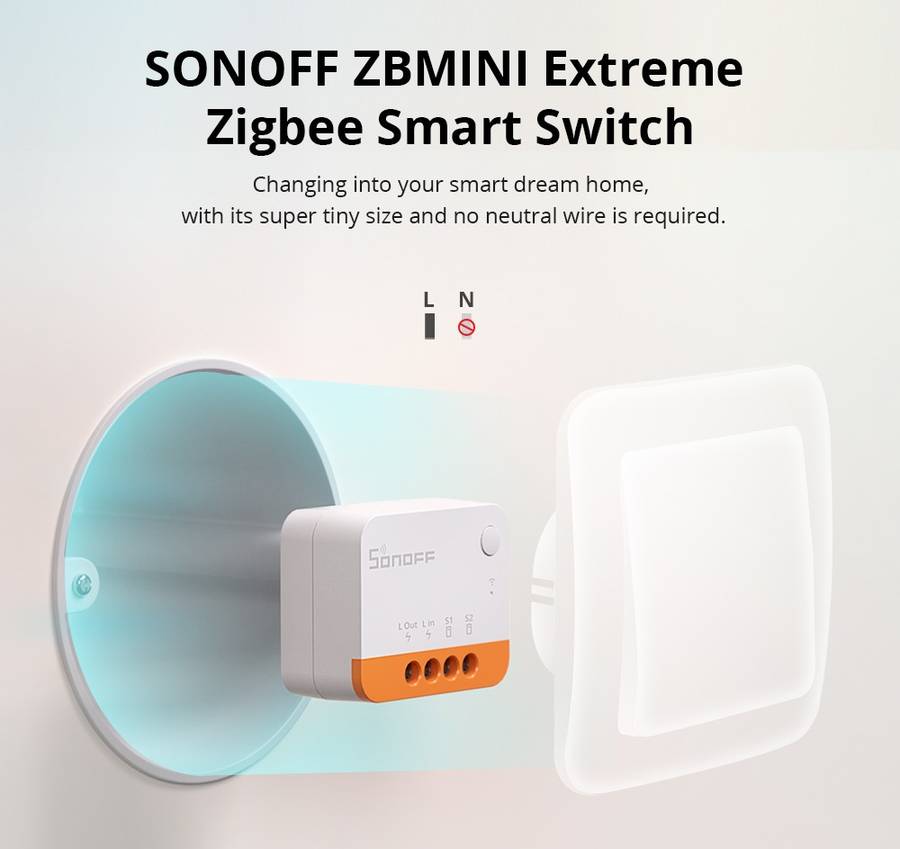

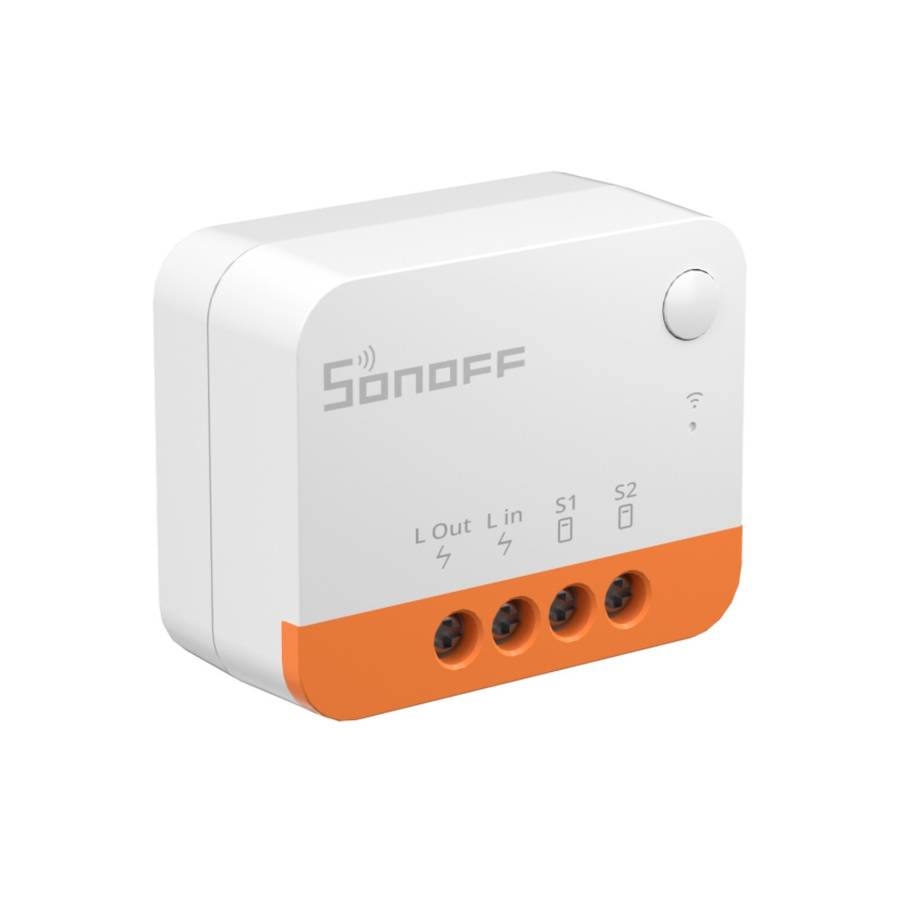

SONOFF ZBMINI-L2 - Extreme Zigbee Smart Switch (No Neutral Required) - BULK PACKAGED

Functions

- SONOFF Zigbee smart switch (No neutral required) allows you to remote control, schedule on/off and set smart scenes to trigger other devices, etc. by connecting Zigbee hub.

Matched Gateways

- SONOFF ZBBridge/ZBBridge-P/iHost/NSPanel Pro/ZBDongle-P/ZBDongle-E Echo Studio Echo Plus(ZE39KL) 2nd Gen Echo Show (DW84JL) 2nd Gen Echo Plus (L9D29R)

Basic Information

- Product series: DIY Smart Switch
- Type: Smart Switch Module
- Model: ZBMINIL2
- Input: 100-240V AC 50/60Hz 6A Max
- Output: 100-240V AC 50/60Hz 6A Max
- Max. Load: Resistive Load: 6A Max, LED: 150W Max @100V, 300W Max @240V

Specifications

- Color: White

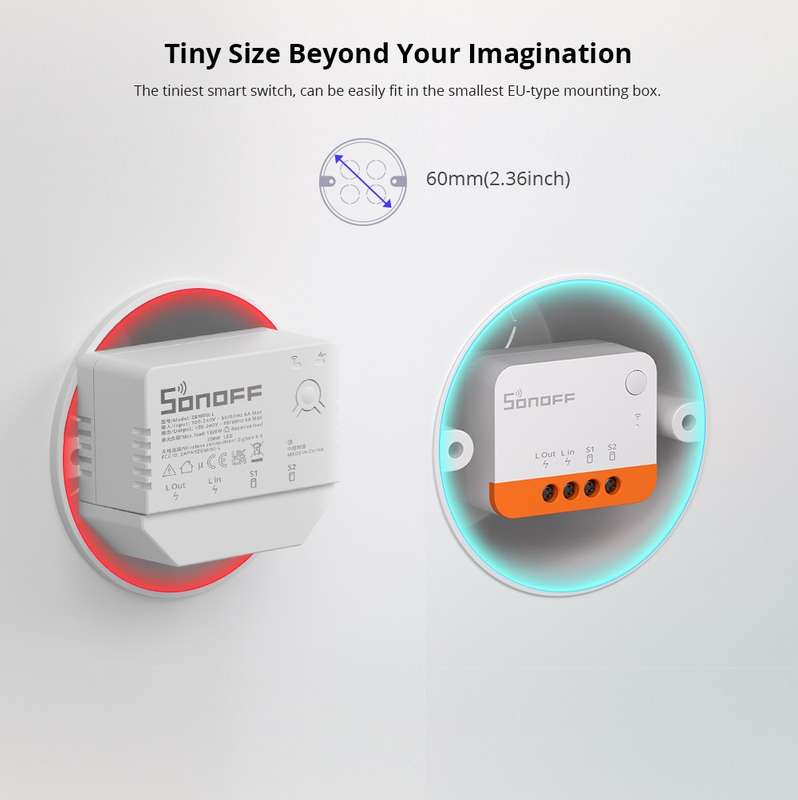

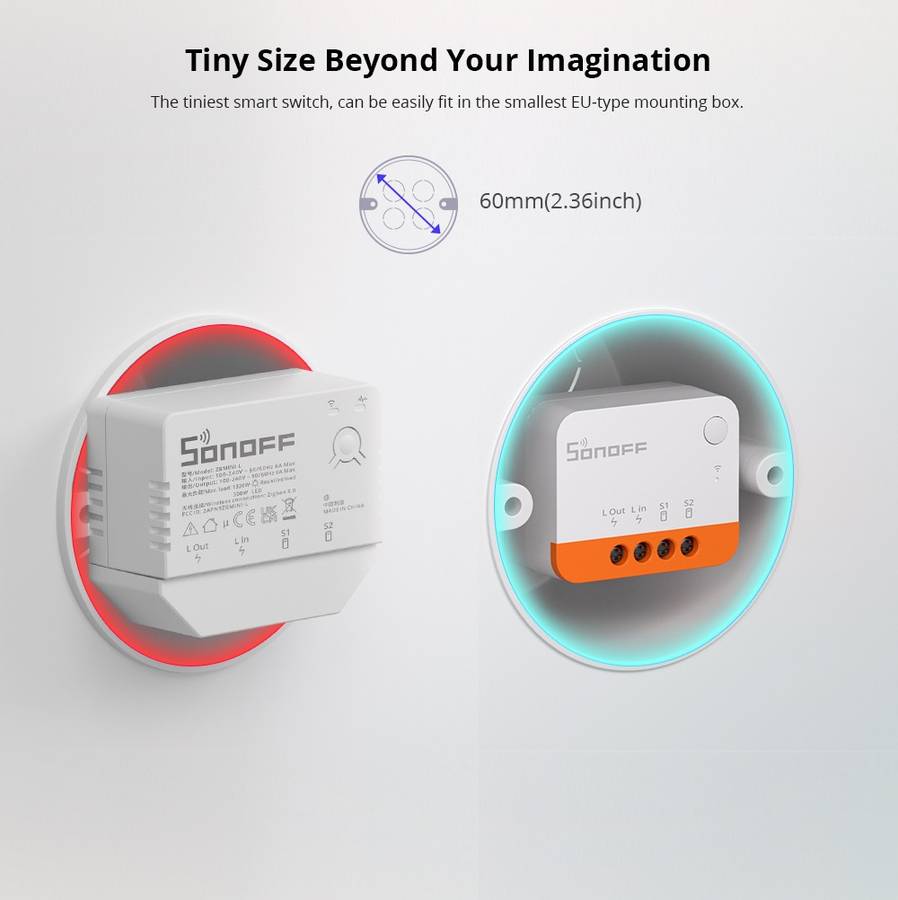

- Product Size: 39.5 x 32 x 18.4 mm
- Package Size: 62 x 47 22 mm
- Net Weight: 22 g
- Gross Weight: 32 g
- Casing Material: PC V0

Wireless standard

- Zigbee: Zigbee 3.0
- Antenna: Built-in ceramic antenna
- Security mode: Zigbee Pro Standard
- Encryption type: AES-128

Working Environment

- Applicable Place: Indoor (Concealed installation)
- Working Temperature: -10°C ~ 40°C
- Working Humidity: 5%-95% RH, non-condensing

Installation

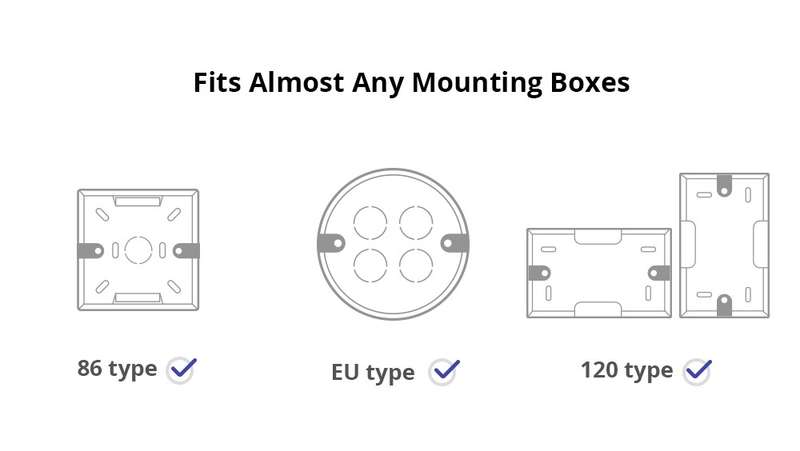

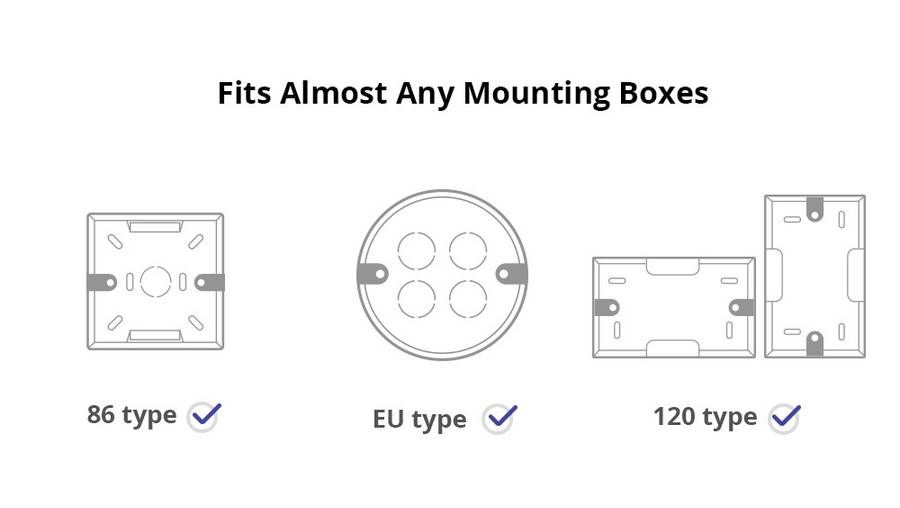

- Installation Method: Install in the mounting box

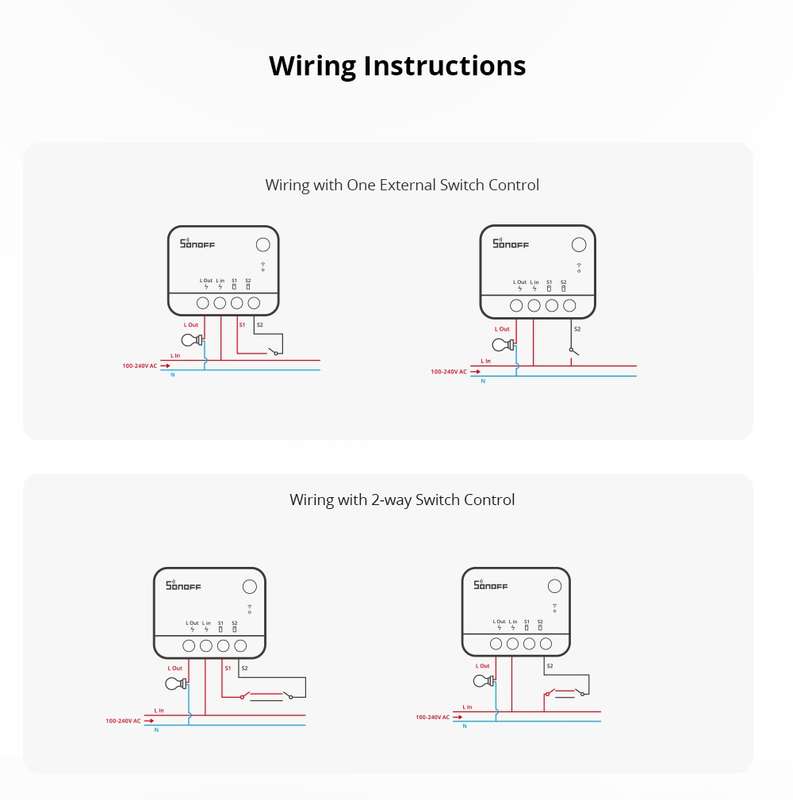

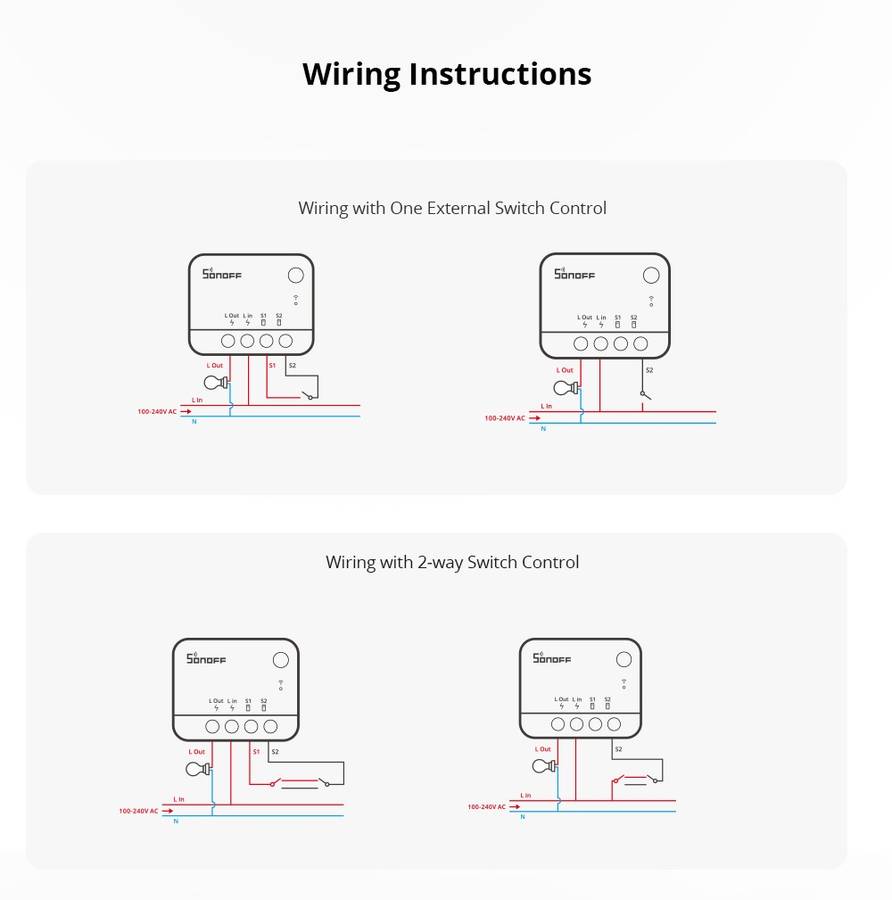

- Wiring: No neutral required
- Wire Diameter: 1mm`1.8mm / 18AWG`13AWG
