Plasma Display Specifications |
| Screen Size | 42" diagonal |
| Screen Aspect | 16:9 |
| Contrast Ratio | 10000:1 |
| Brightness | 5000cd/m2 |
| Pixel Pitch | [not published] |
| hSync | [not published] |
| vSync | [not published] |
| Color System | [not published] |
| Data Signals | VGA, SVGA, WVGA, XGA |
| TV Scan Lines | 480i, 480p, 720p, 1080i |
Input Terminals |
| Composite Video | 1 (RCA) |
| S-Video | 1 (4-pin mini DIN) |
| VGA RGB Signal | 1 (15-pin mini d-Sub) |
| DVI Digital Input | 1 |
| Stereo Audio In | 4 (RCA L/R) |
| Serial Control (RS232C) | 1 (9-pin mini d-Sub) |
Output Terminals |
| Composite Video | 1 (RCA) |
| Stereo Audio | 1 (RCA L/R) |
Plasma Monitor Accessories |
| Audio Amplifier | 7W x 2 |
| Speakers | Optional |
| Mounting Options | Optional Mount Required |
Also Included:
DVI-D Cable
AC Power Cord
Operating Instructions
AC Plug Holder (2)
AA/R6 Size Battery (2)
Cable Holder (4)
RS232C and Multi-Function Remote |
Dimensions and General Specs. |
| Power Supply | 100-120V, 200-240V @ 50-60Hz |
| Power Consumption | 260 Watts |
| Dimensions | [not published] |
| Weight | 66.00 lbs. |
| FCC Class | FCC Class A, Commercial Use |
Sony Plasma Technology

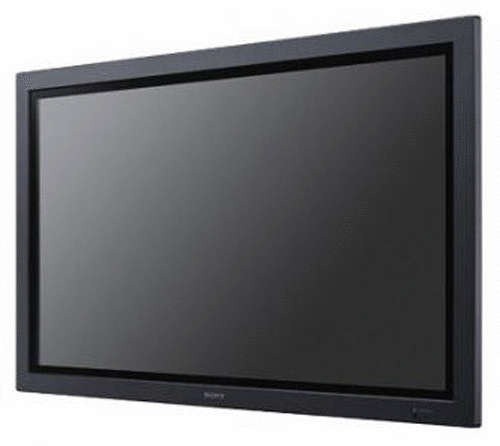

42" Plasma Monitor - 852 x 480 Resolution 16:9 EDTV plasma panel (viewable area, measured diagonally)
High Contrast - Ultra-high panel brightness and contrast (10,000:1 contrast ratio). Ideal for television, HD content or PC signals
Ultra Bright Picture Output
The FWD-42PV1 offers ultra-high brightness and a 10,000:1 contrast ratio. It recognizes over a billion different colors for delicate image reproduction realism. With its standard digital input the monitor offers economical HDTV and multi-media content output.
Long Life Panel - 60,000 hours to half brightness
Screen Saver Functions - Full Screen Saver Functions including Auto Dimmer functions and on/off timer.
Standard Definition and High Definition Formats - Displays Standard Definition and High Definition Formats Including 1080/60i, 720/60P, 1080/24Psf, and 480/60p Video
Convenience Features
Picture-In-Picture or Side-by-Side Viewing
This plasma screen was designed to meet most professional applications whether for retail advertising, boardroom multi-media display or video post production. It can be used to display two images on the single screen in a variety of modes. Images can be displayed small picture over large (picture-in-picture) or split screen style where 2 programs are viewed side by side.
Mounting Flexibility - All models can be mounted in various positions to meet different user applications - whether placed on an optional table stand, installed on a wall, or hung from the ceiling.
Sophisticated Style - Versatile and Stylish Design with its simple yet sophisticated appearance, the PlasmaPro Series offers a stylish, high-impact way to convey graphical messages.
Superb Quality, Minimal Space. - With excellent installation flexibility, these slim and lightweight displays provide large, superb-quality images in minimal space.
Network Expansion and Other Options
The FWD-42PV1 has two expansion slots on its reverse side to accommodate optional cards for network interface and other functions. The NSP-100 card provides the video/data, monitor status, monitor control and storage over a network. The optional EBS-N100 provides just monitor status and control over the network. There are also options for a television tuner, video/data loop-through and a variety of mounting solutions. Matching side-mount speakers are also on the options list.
Audio System Features
Digital Stereo Audio Amplifier - 7 Watt Digital Stereo Audio Amplifier (speakers optional)
Terminals and Connections
Digital Video Input (DVI-D) - The DVI-D HDCP input function offers a high picture quality when used with a DVI-equipped PC (DVI video cable is supplied).
