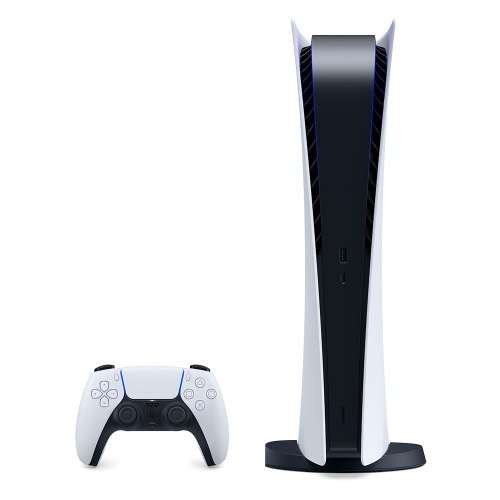

PlayStation®5 Specifications *Does not include a Disc Drive. Digital Games only
CPU
x86-64-AMD Ryzen Zen 2
8 Cores / 16 Threads
Variable frequency, up to 3.5 GHz
GPU
AMD Radeon RDNA 2-based graphics engine
Ray Tracing Acceleration
Variable frequency, up to 2.23 GHz (10.3 TFLOPS)
System Memory
GDDR6 16GB
448GB/s Bandwidth
SSD
825GB
5.5GB/s Read Bandwidth (Raw)
Video Out
HDMI OUT port
Support of 4K 120Hz TVs, 8K TVs, VRR (specified by HDMI ver.2.1)
Audio
Tempest 3D AudioTech
Dimensions
PS5: Approx. 390mm x 104mm x 260mm (width x height x depth) (excludes largest projection, excludes Base)
PS5 Digital Edition: Approx. 390mm x 92mm x 260mm (width x height x depth) (excludes largest projection, excludes Base)
Power
PS5: 350W
PS5 Digital Edition: 340W
Input/Output
USB Type-A port (Hi-Speed USB)
USB Type-A port (Super-Speed USB 10Gbps) x2
USB Type-C® port (Super-Speed USB 10Gbps)
Networking
Ethernet (10BASE-T, 100BASE-TX, 1000BASE-T)
IEEE 802.11 a/b/g/n/ac/ax
Bluetooth® 5.1
DualSense Wireless Controller Specifications
Dimensions
Approx. 160mm x 66mm x 106mm (excludes largest projection) (width x height x depth)
Weight
Approx. 280g
Buttons
PS button, Create button, Options button,
Directional buttons (Up/Down/Left/Right), Action buttons (Triangle, Circle, Cross, Square),
R1/L1 button,
R2/L2 button (with Trigger Effect)
Left stick / L3 button, Right stick / R3 button, Touch Pad button, MUTE button
Touch Pad
2 Point Touch Pad, Capacitive Type, Click Mechanism
Motion Sensor
Six-axis motion sensing system (three-axis gyroscope + three-axis accelerometer)
Audio
Built-in Microphone Array, Built-in Mono Speaker, Stereo Headset Jack
Output : 48kHz/16bit, Input : 24kHz/16bit
Feedback
Trigger Effect (on R2/L2 button), Vibration (haptic feedback by dual actuators), Indicators (Light bar / Player indicator / MUTE status)
Ports
USB Type-C® port (Hi-Speed USB), Stereo Headset Jack, Charging Terminals
Communication
Wireless
Bluetooth® Ver5.1
Wired
USB connection (HID, Audio)
Battery
Type
Built-in rechargeable lithium-ion battery
Voltage
DC 3.65V
Capacity
1,560mAh
