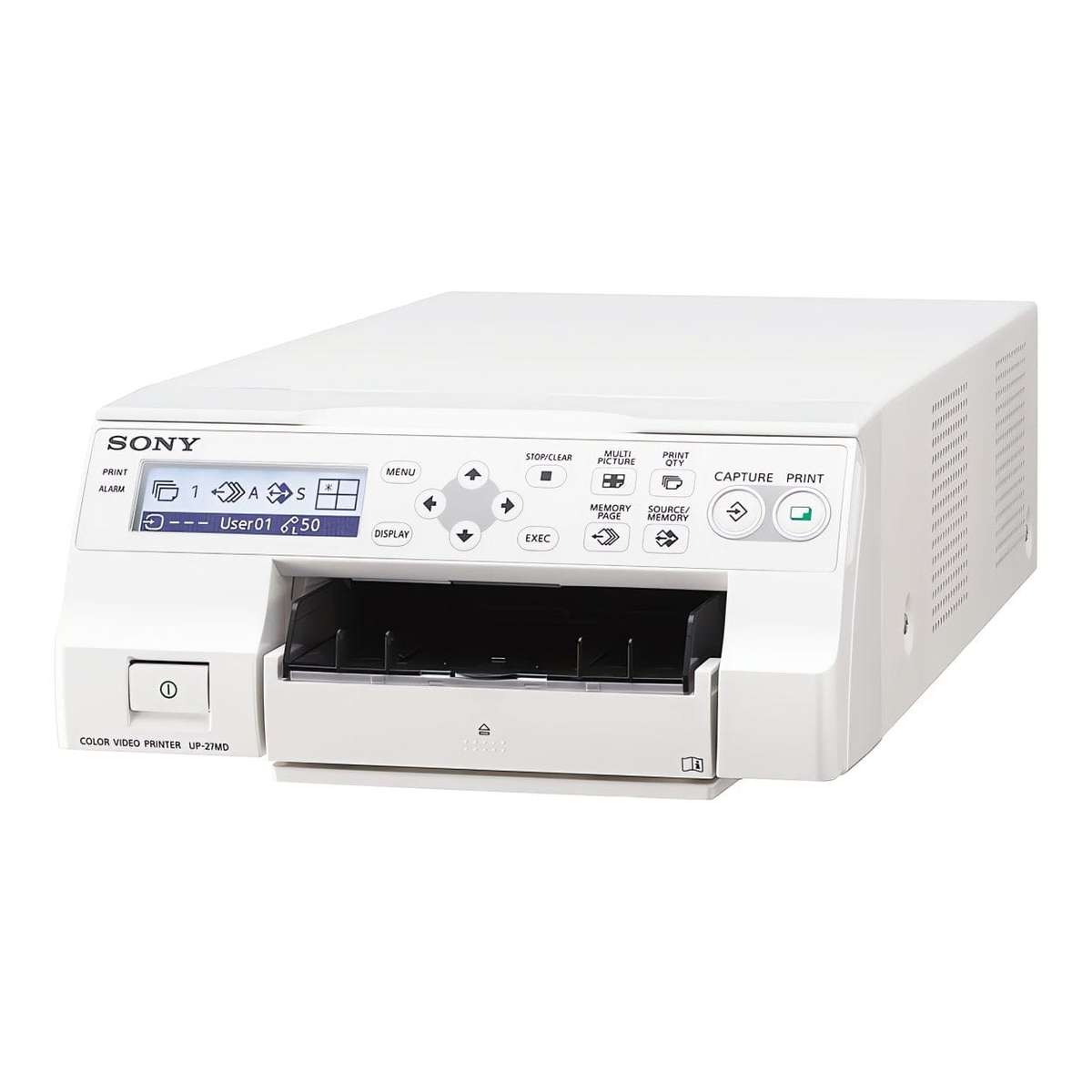

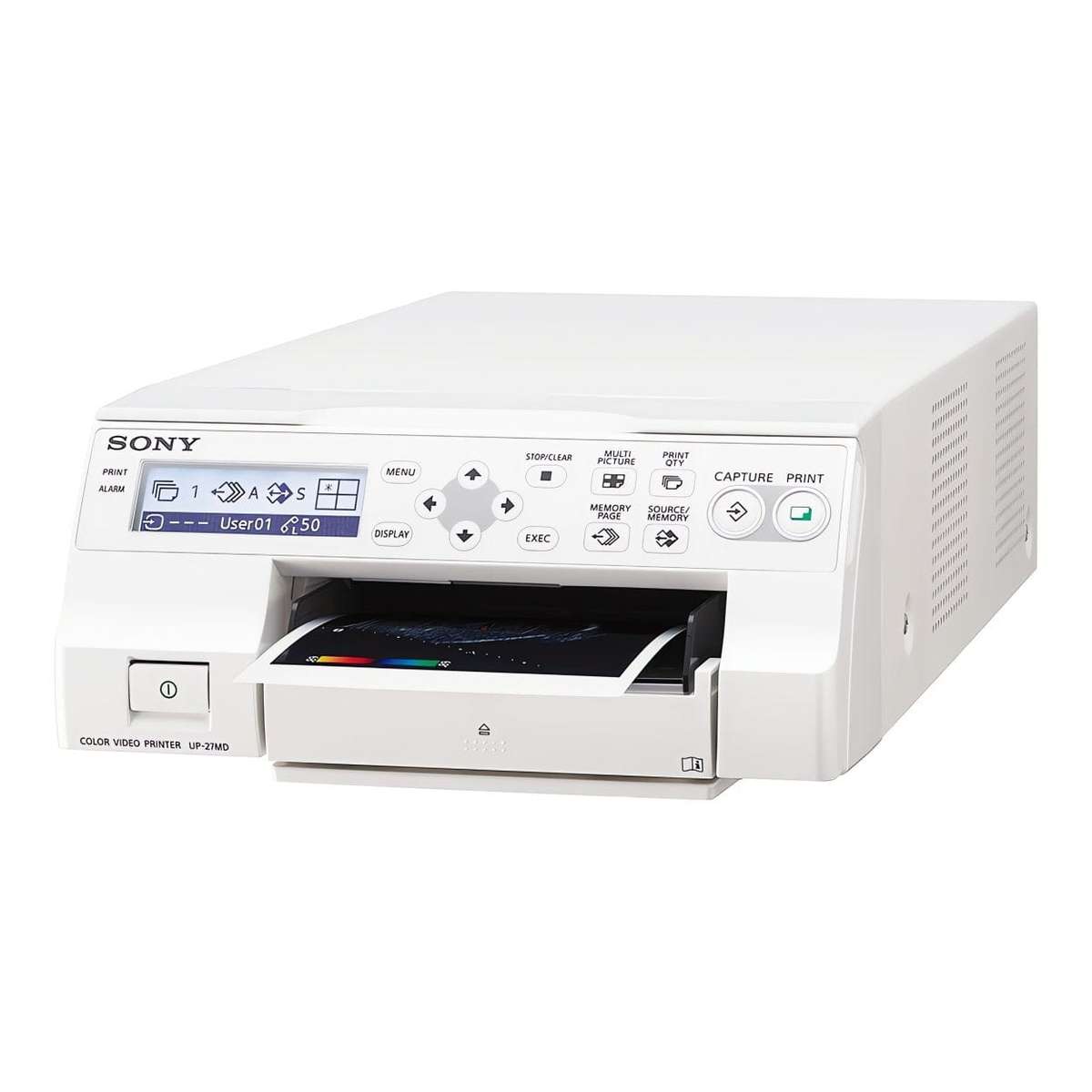

Sony Pro UP-27MD Medical Colour Video Printer
The UP-27MD Colour Video Printer for medical applications
Sonyʼs medical grade UP-27MD Colour Printer is the ideal choice for Ultrasound, Cardiology, and Endoscopy applications.
Features
Compact design
Thanks to a compact design, UP-27MD fits easily into space-constrained environments, and can be rack-mounted,alongside other equipment, on medical carts.
Large front LCD
Its useful front operation and User-friendly LCD display with the white back light provide better visibility for intuitive operation.
Stylish Design and Compact Size
The UP-27MD has a stylish compact design that ï¬ts into smaller spaces. The dimensions are approximately 212 (W) x 98 (H) x 398 (D) mm (8 3/8 x 3 7/8 x 15 3/4 inches).
SDI Compatibility
HD-SDI, SD-SDI and 3G-SDI inputs and outputs are available for smooth transmission of large video signals up to full HD 1080p resolution with less noise.

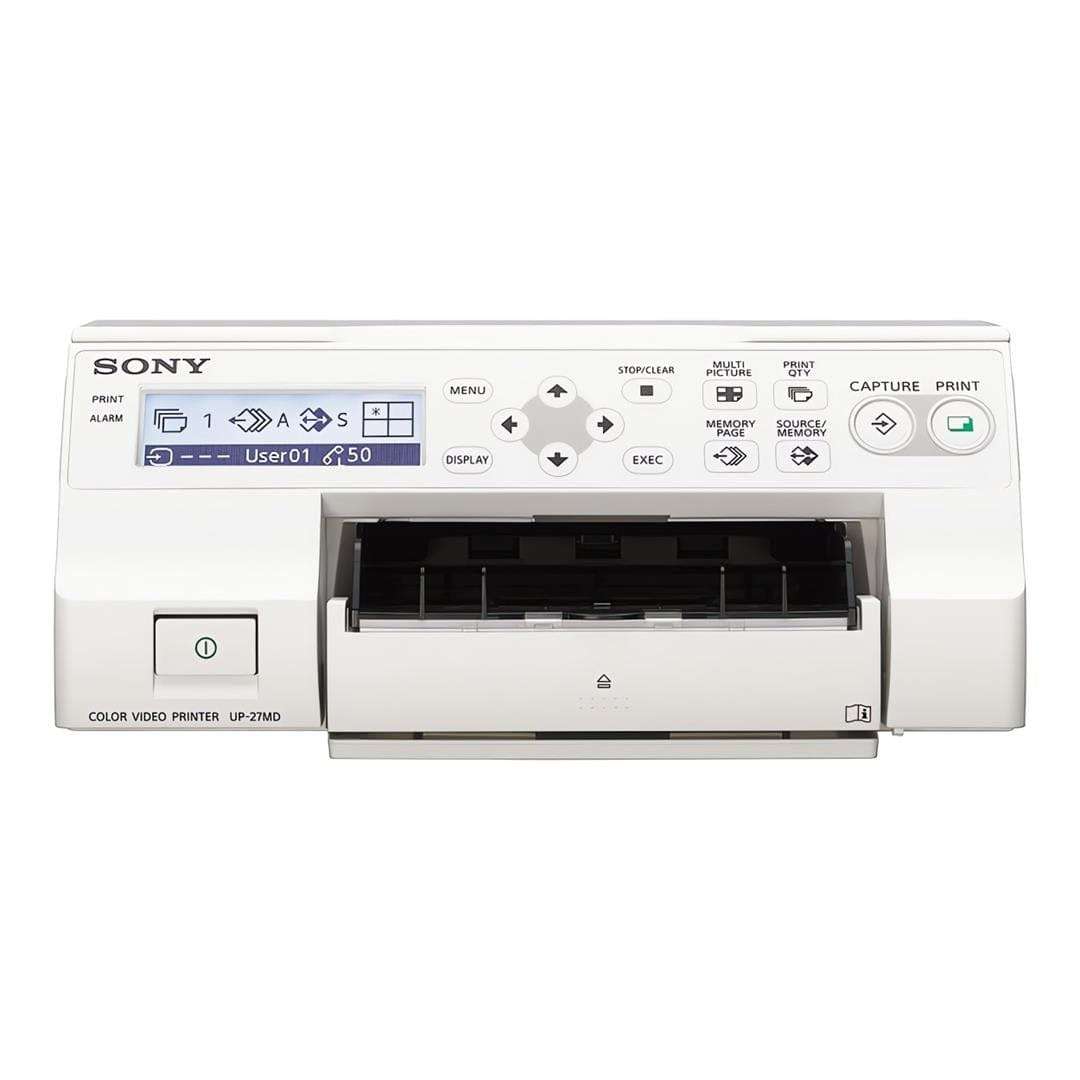

Front Operation and User-friendly LCD Display

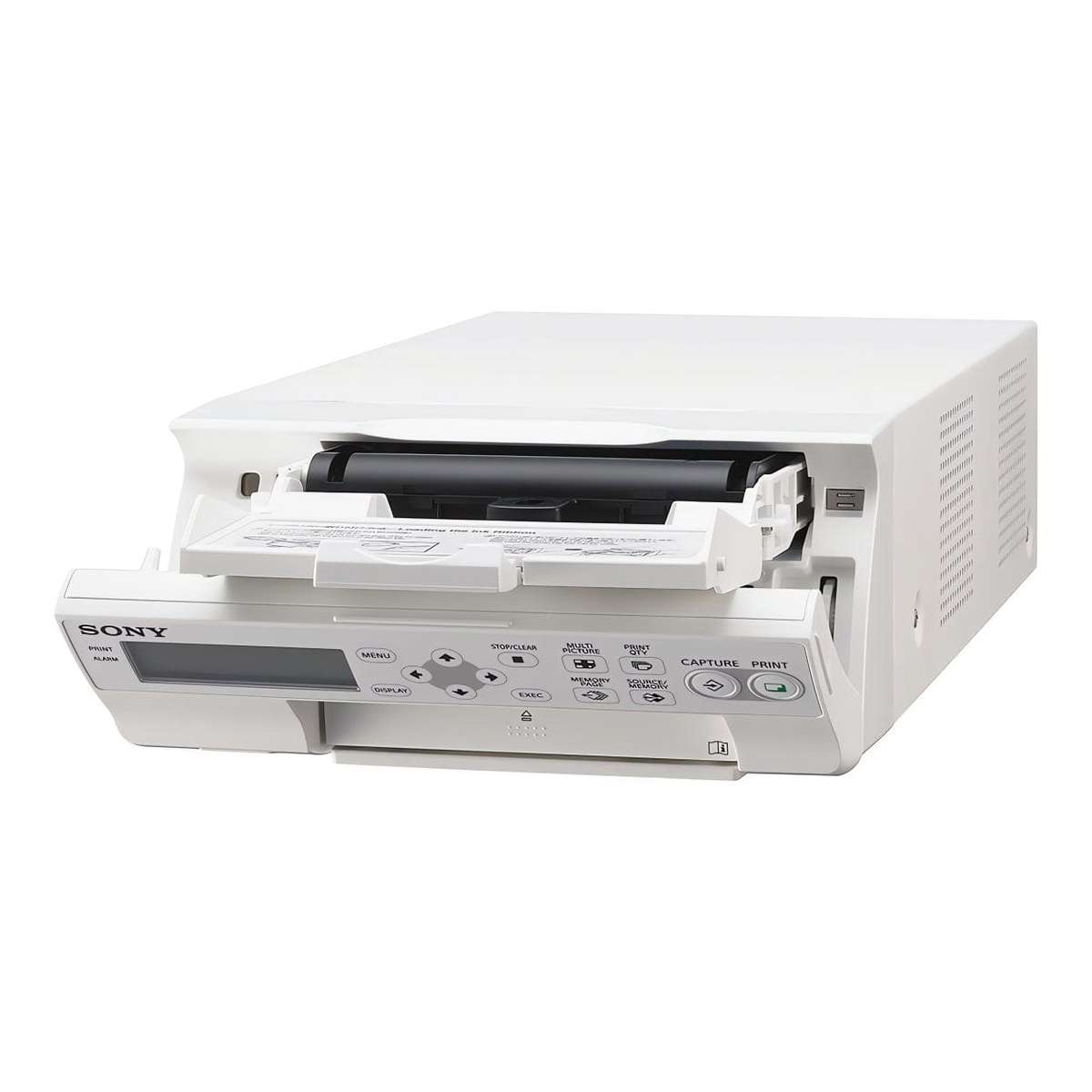

The front-loading operation makes it easy to replace paper and ribbon and allows the UP-27MD to be installed in even tight spaces. This useful design feature also allows you to use the printer on-cart. Using the large front LCD display, users can conveniently operate settings and colour adjustment. The white back light provides better visibility for intuitive operation. Not only texts, but icons are clearly displayed. This display also shows error messages and the print media type, making it easy for users to quickly check and confirm this information.
Automatic Feed Roller Cleaning
The UP-27MD is equipped with an automatic feed roller cleaning function which reduces the need for periodical manual cleaning. The paper feed roller is cleaned for a few seconds whenever the last sheet of paper in the paper tray is printed out. After this, the paper tray is automatically pushed out, notifying the user that the paper has run out.

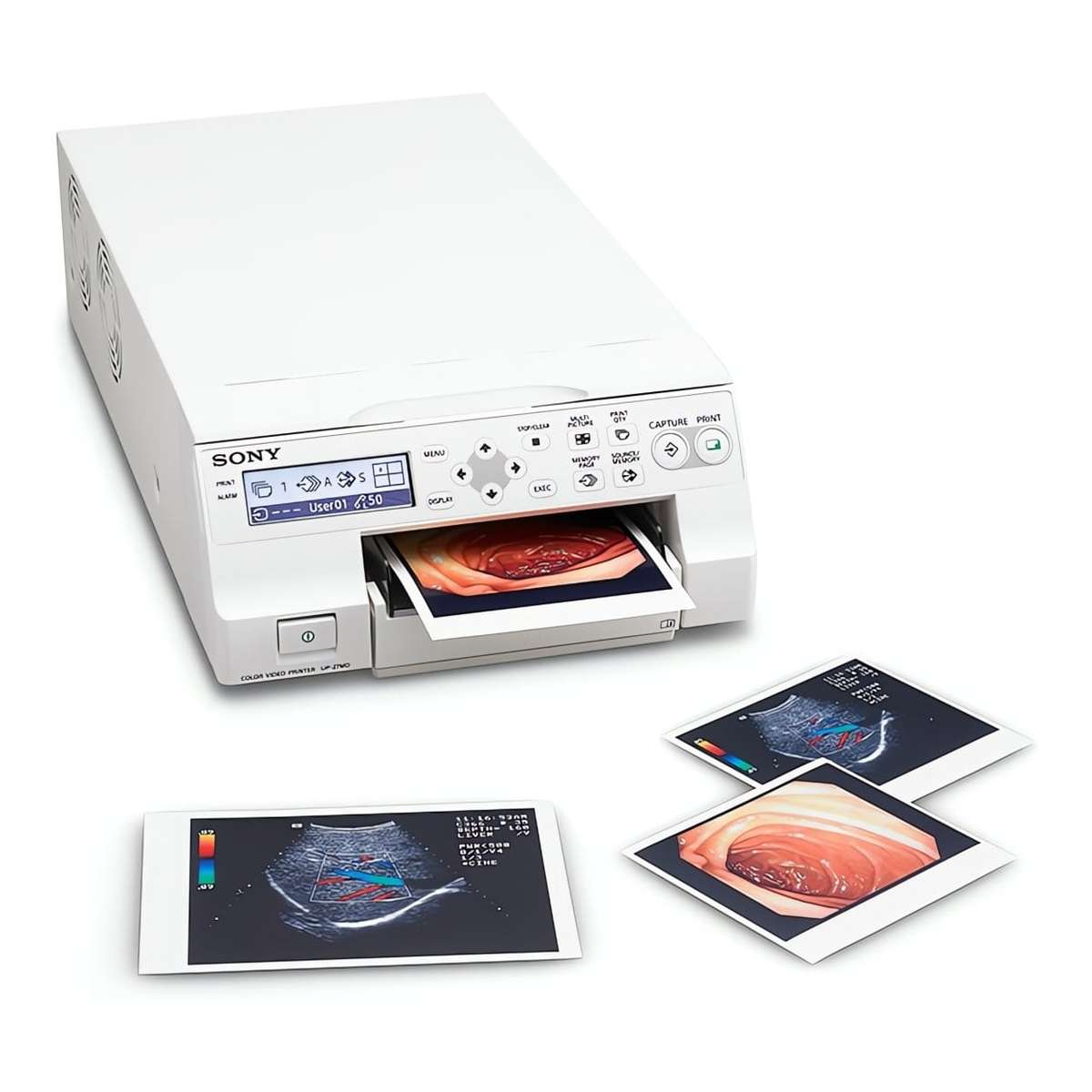

Superb Print Quality and Colour at 423 dpi Resolution
Incorporating Sony's dye sublimation printing technology, the UP-27MD produces photorealistic quality prints. With the UPC-21L, over Full HD picture quality* can be realized.
Hue Saturation Value (HSV) Colour Adjustment and Colour Balance
Besides the normal colour adjustment (RGB), the UP-27MD also has the HSV function. The HSV function enables users to adjust the hue, saturation, and value of a selected colour. In addition the UP-27MD can print a nine-split image for colour balance which makes it easier for users to select the best colours (the ones that most closely match user requirements) with actual medical images.
Technical Specification
Printing method: Dye-sublimation thermal transfer
Resolution: 423 dpi
Gradations: 256 levels (8 bits) each for Yellow, Cyan, Magenta
Picture elements
- UPC-21L: 2,132 x 1,600 dots
- UPC-21S: 1,600 x 1,260 dots
Picture area
- UPC-21L: 127.9 x 96.0 mm (5 1/8 x 3 3/4 inches)
- UPC-21S: 96.0 x 75.6 mm (3 3/4 x 3 inches)
Printing time
- UPC-21L: Approx. 29 sec
- UPC-21S: Approx. 19 sec
SDI IN/OUT Format: 1080p, 1080i, 480i, 576i

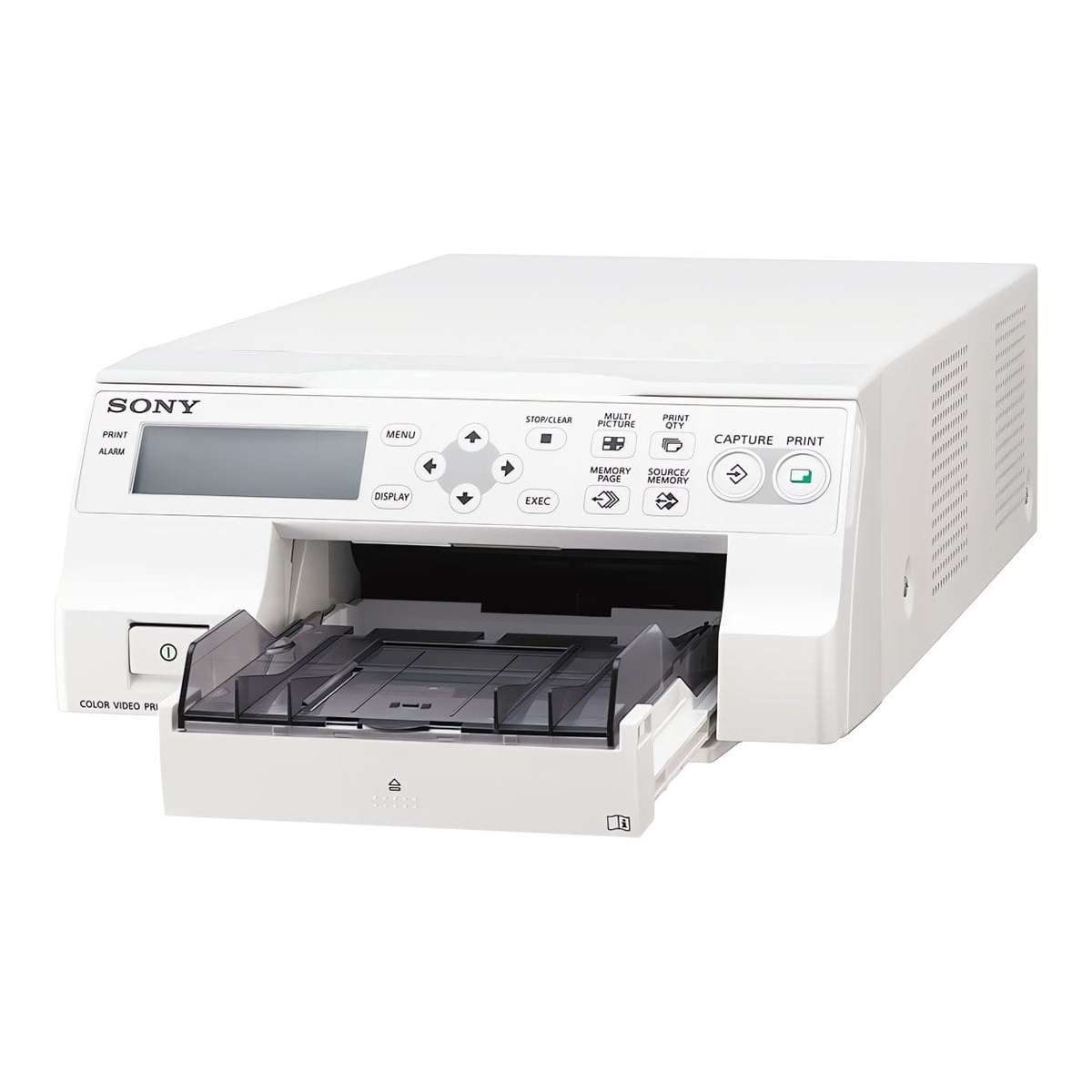

Paper tray capacity
- L size: max. 50 sheets
- S size: max. 80 sheets

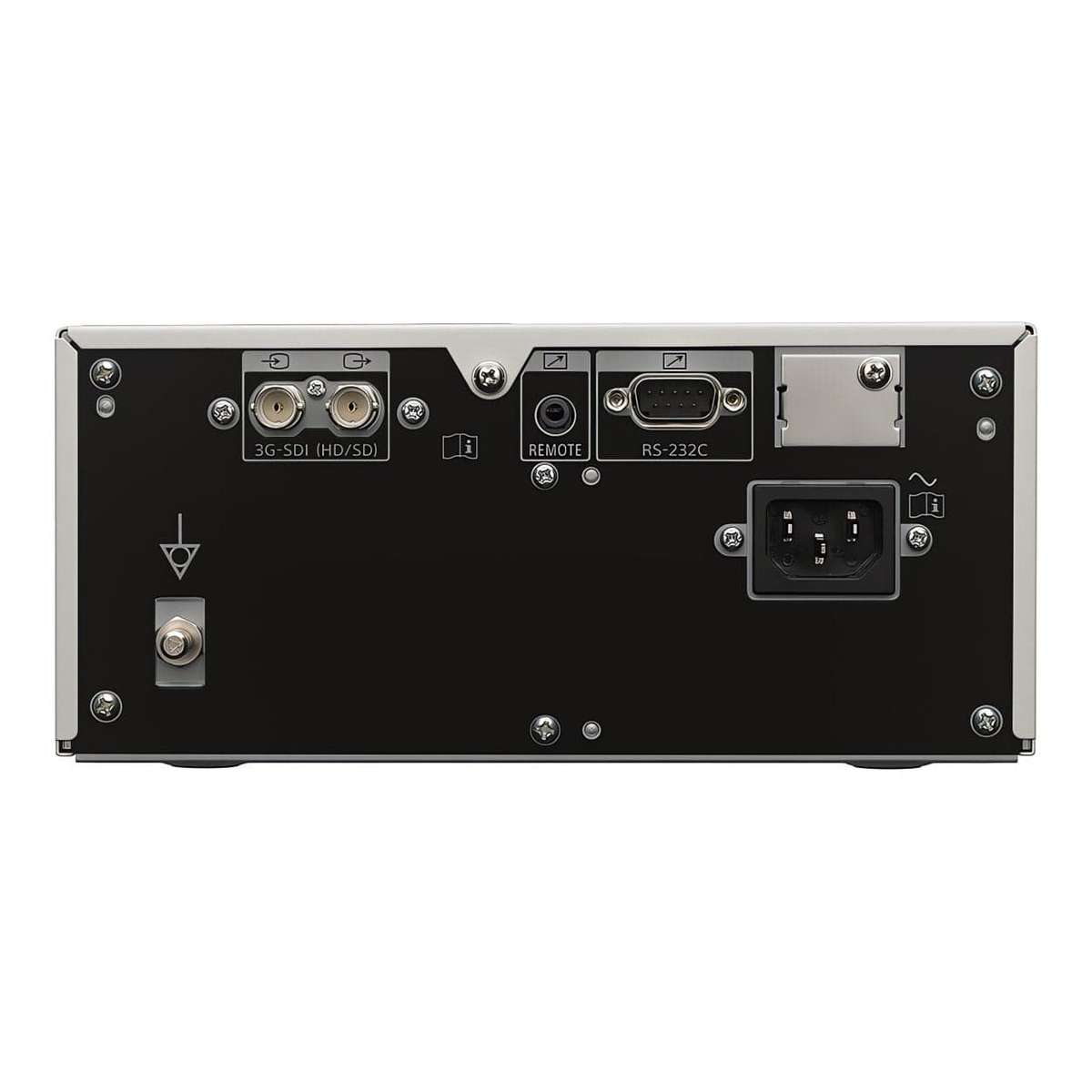

Interface
- SDI IN: 1x BNC 3G/HD/SD-SDI
- SDI OUT: 1x BNC 3G/HD/SD-SDI
Control connectors
- REMOTE: 1x Stereo mini jack for optional FS-24 Foot Switch
- RS-232C (Computer control interface): 1x D-sub 9-pin connector
Power requirements: AC 100 V to 240 V, 50/60 Hz
Input current: 1.7 A to 1.0 A
Dimensions: 212 (W) x 98 (H) x 398 (D) mm
Mass: 5.7 kg
