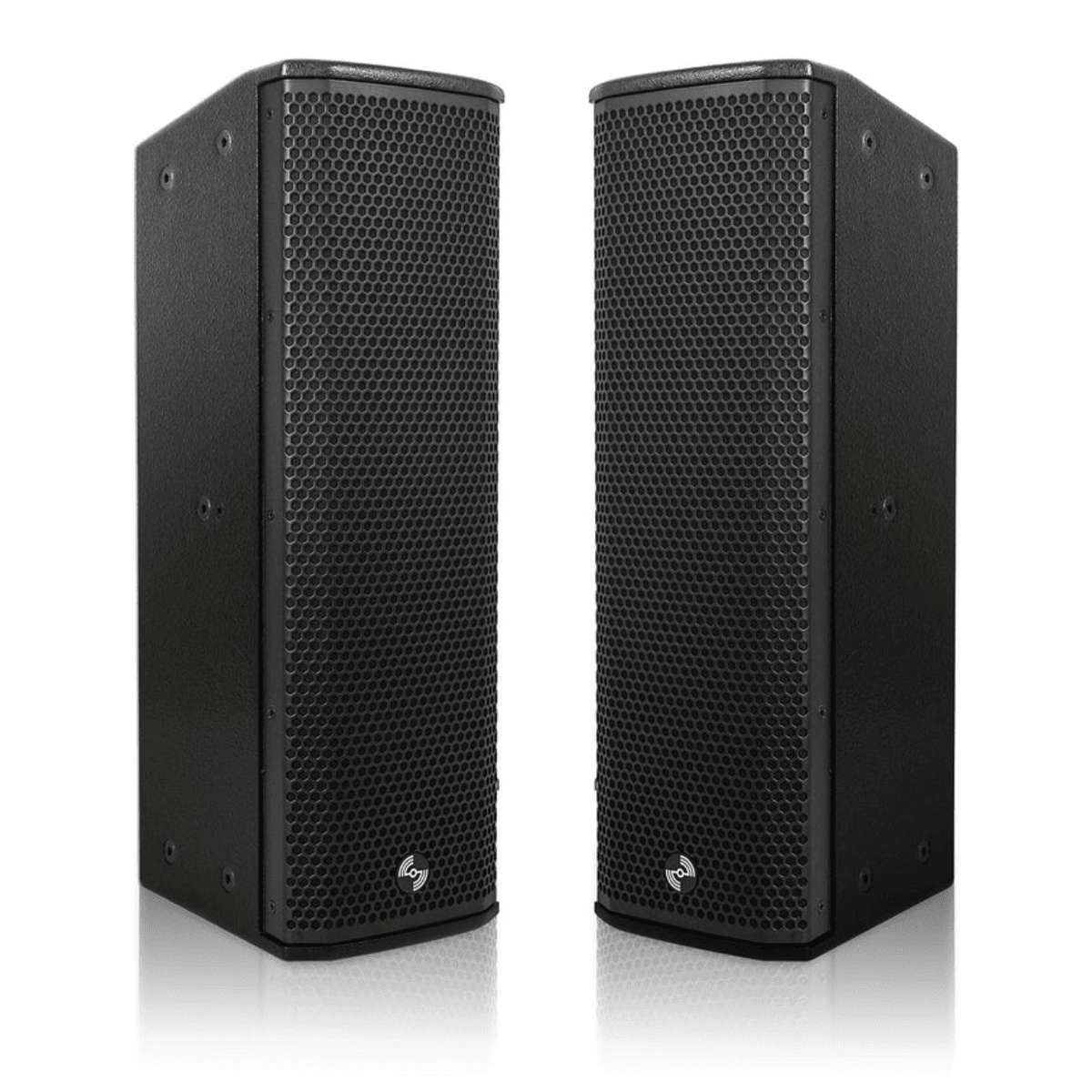

Introducing the CARPO Series CARPO-P3B which includes 2 line array column speakers, each equipped with dual 5" woofers and dual 3/4" compression drivers with line horns, producing a high-power performance of 250W RMS and 500W program at 8 for balanced, crisp audio. Permanent mounting setups or portable PA setups are simplified with CARPO-P3B's versatile mounting options.

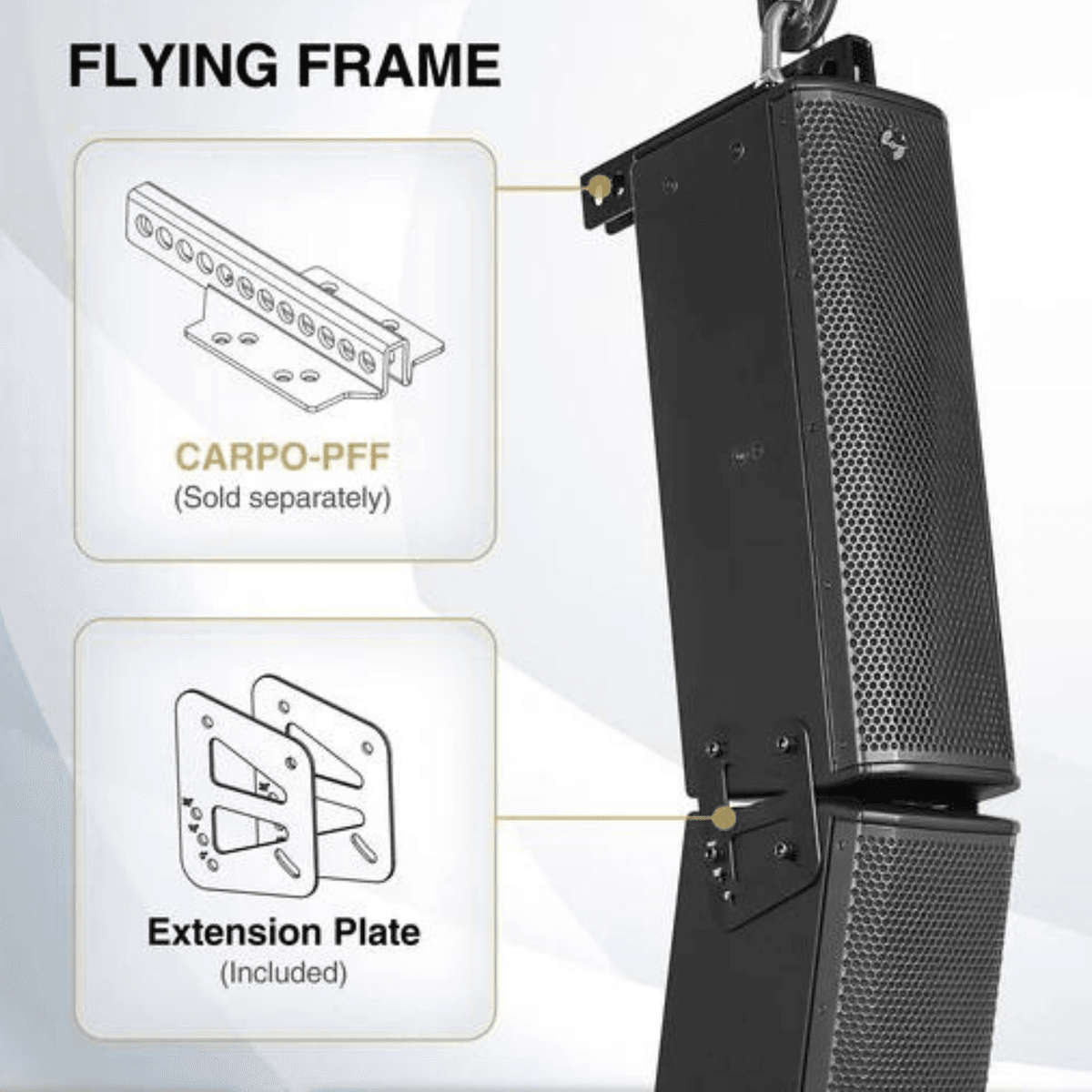

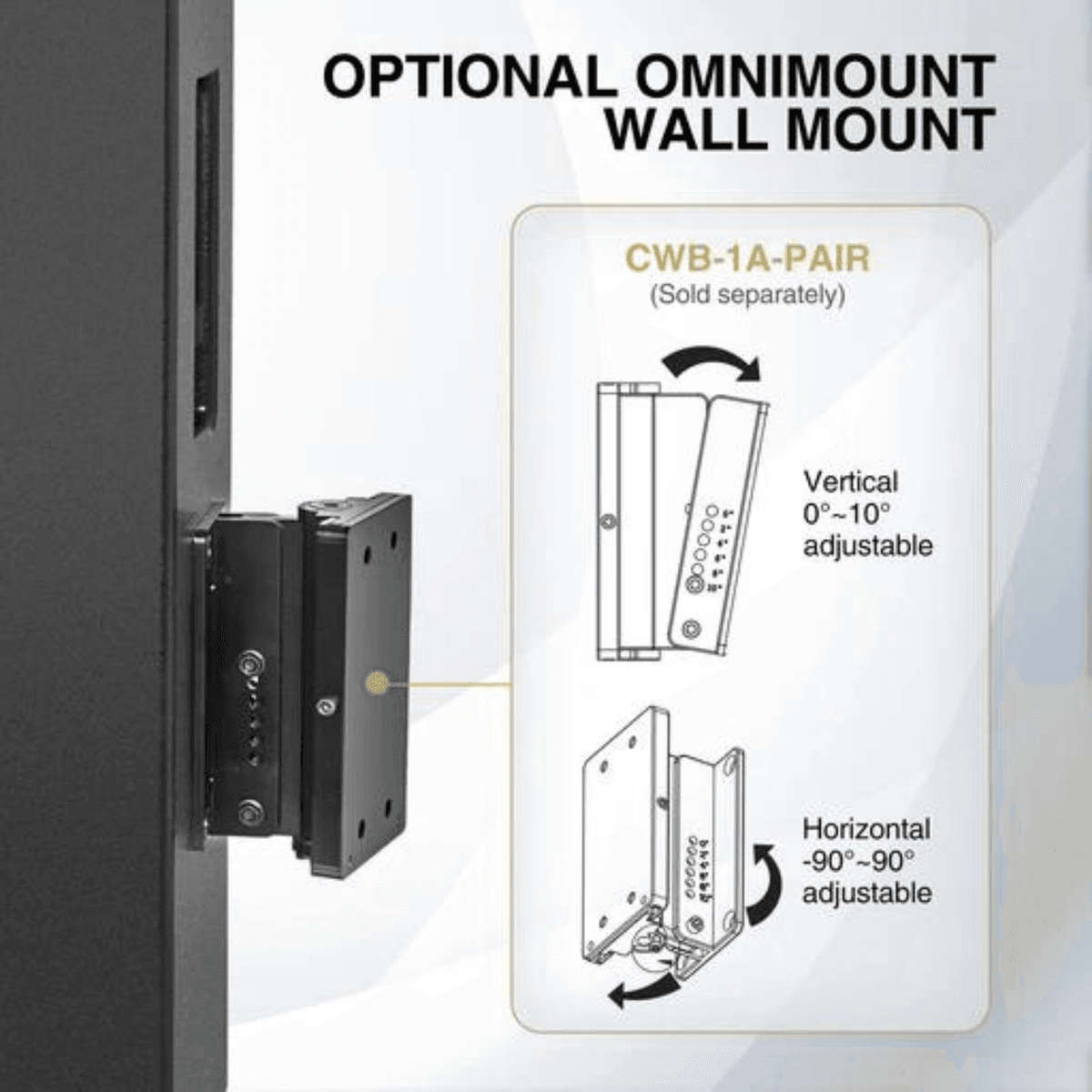

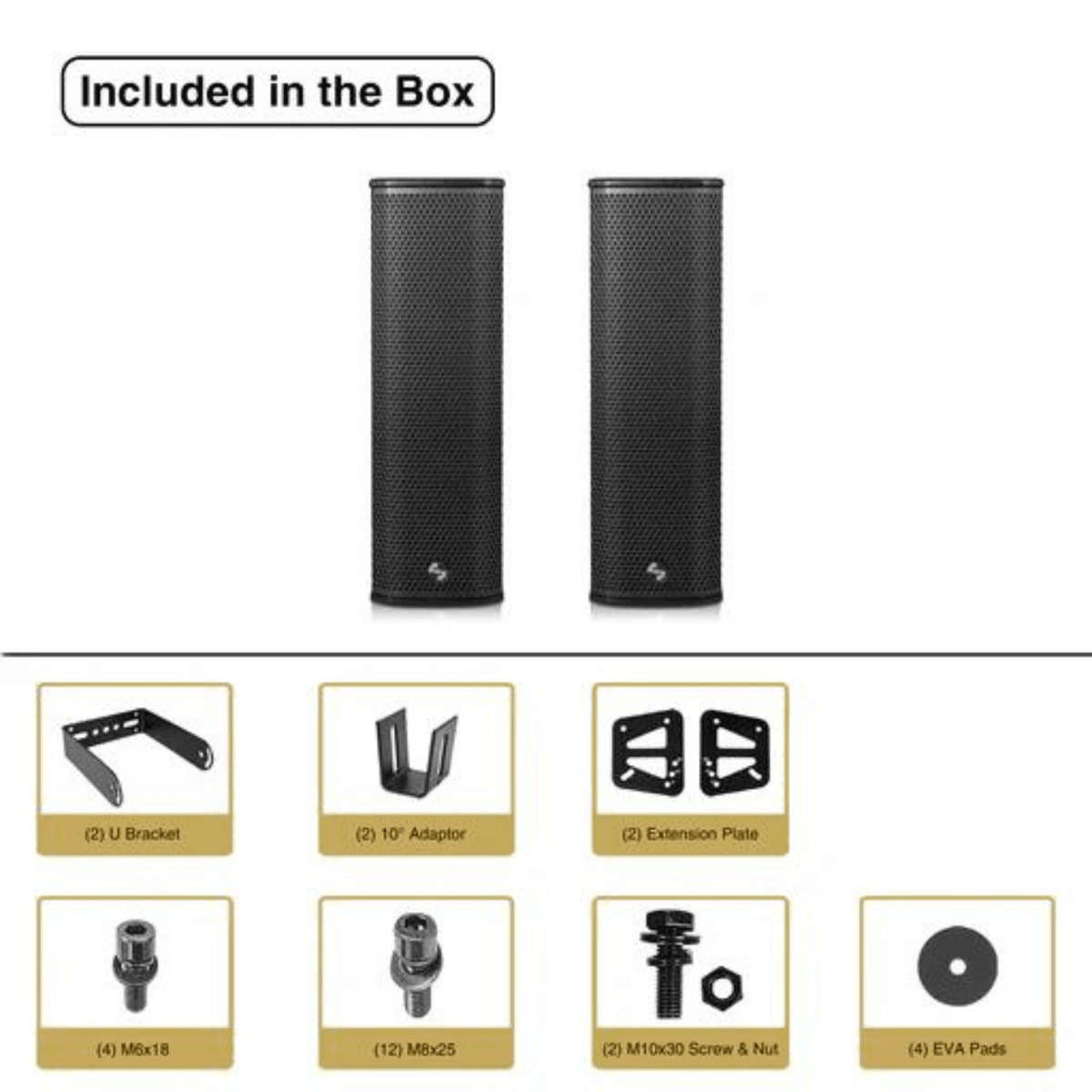

The CARPO-P3B features 2 included U-brackets and adapters for a 10° tilt in multiple directions as well as an extension bracket for combining 2 CARPO-P3B column speakers together. A 35mm socket on the bottom of each column speaker also makes portable setups a breeze with additional speaker poles or a tripod. The optional 'CWB-1A-PAIR' omni-mount wall mount allows for precise flexible angle adjustments and 'CARPO-PFF' flying frame for suspension setups is also available and sold separately.
Designed to be compact and lightweight without sacrificing sound quality and durability, each loudspeaker has 2 Speakon input connectors which make it easy to be connected with virtually any sound system. The robust cabinet constructed with birch plywood with a textured black paint finish combines durability with clean aesthetics. Whether as a permanent fixture or a portable PA solution, the CARPO-P3B is ideal for live performances, places of worship, conference centres, auditoriums, restaurants, and so much more!

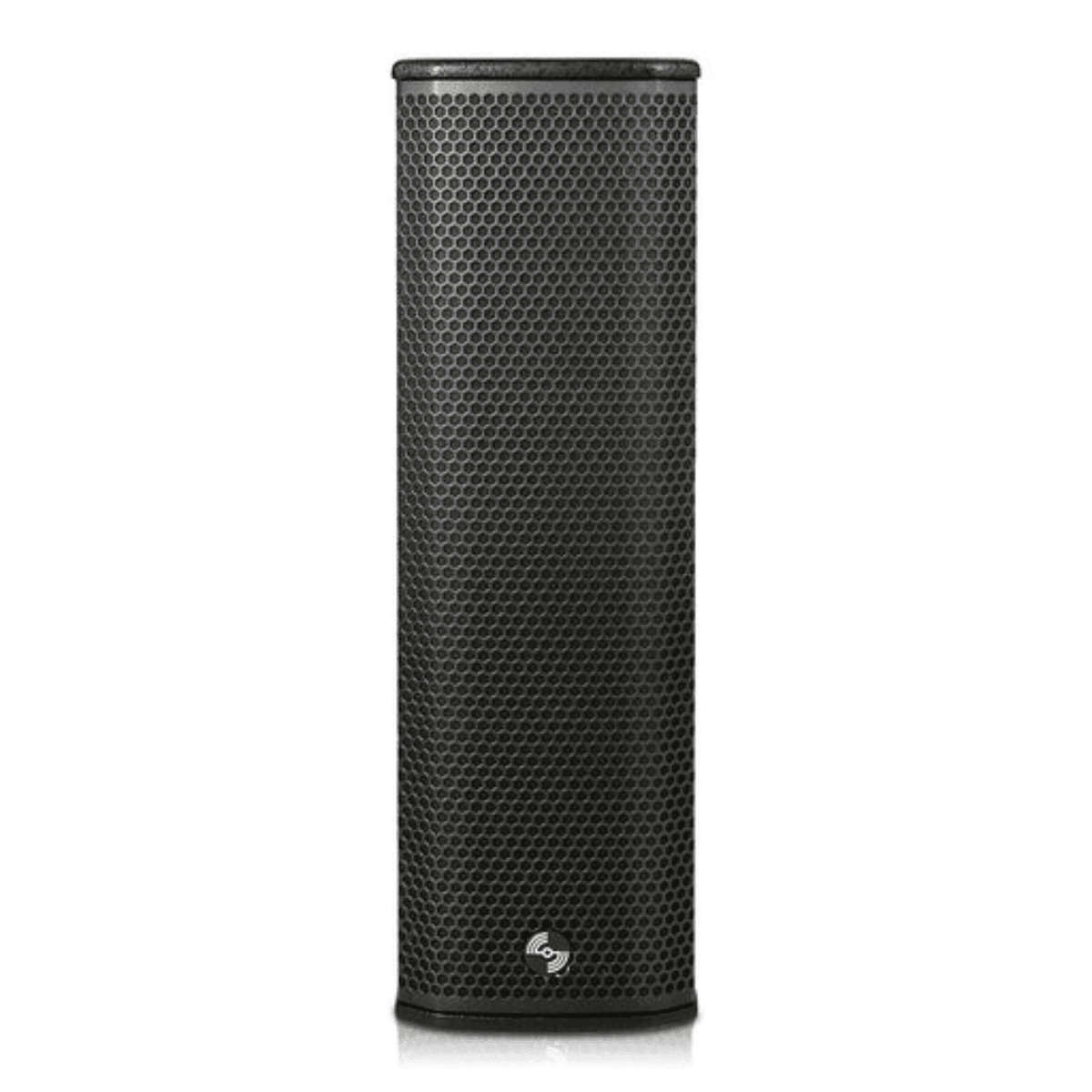

CARPO Series Column Speaker
The CARPO-P3B line array column speaker system includes 2 column line array speakers, each equipped with dual 5" woofers and dual 3/4" compression drivers with linear horns, delivering high-power performance, capable of 250W RMS and 500W program at 8, ensuring a balanced and crisp audio experience.
Flexible Mounting Options

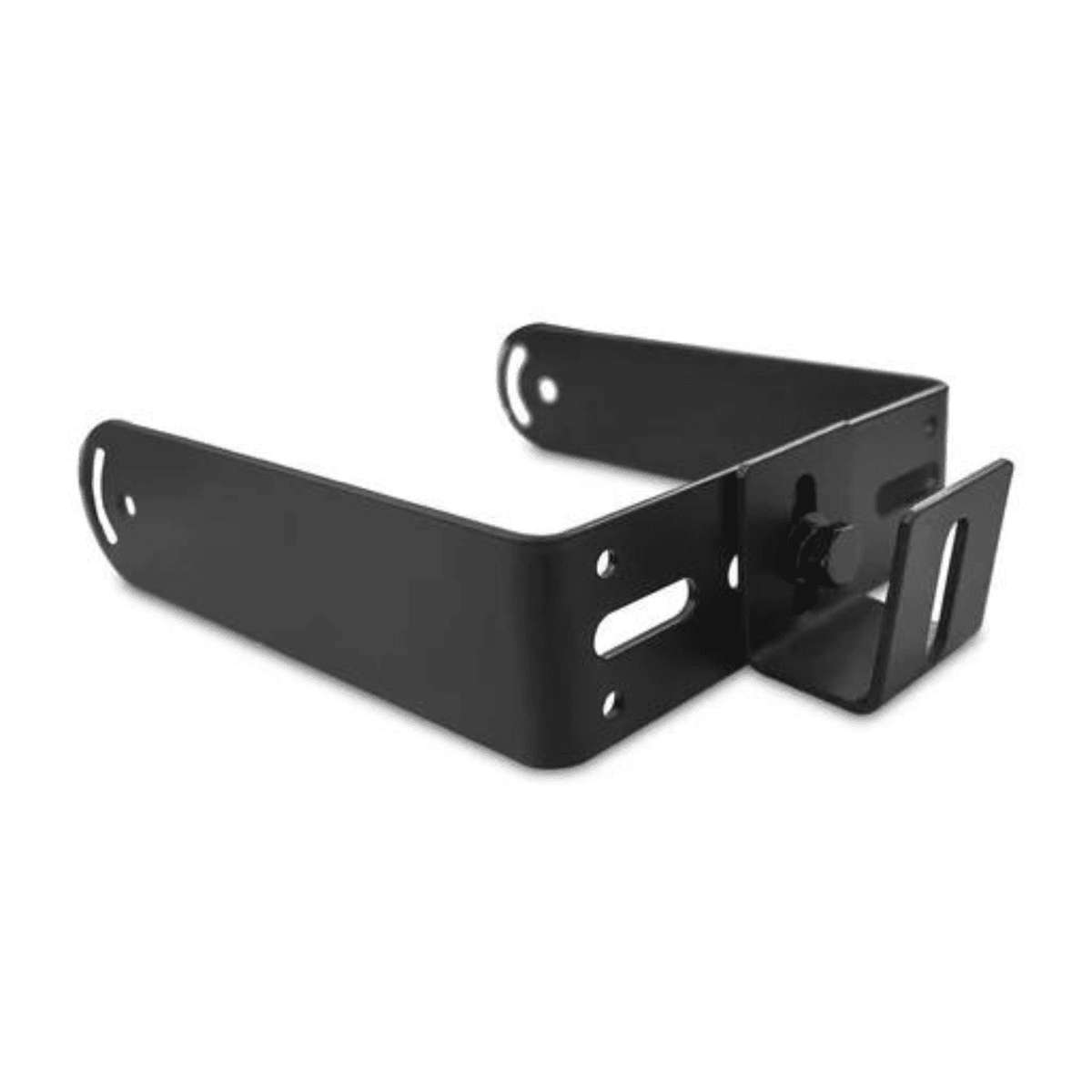

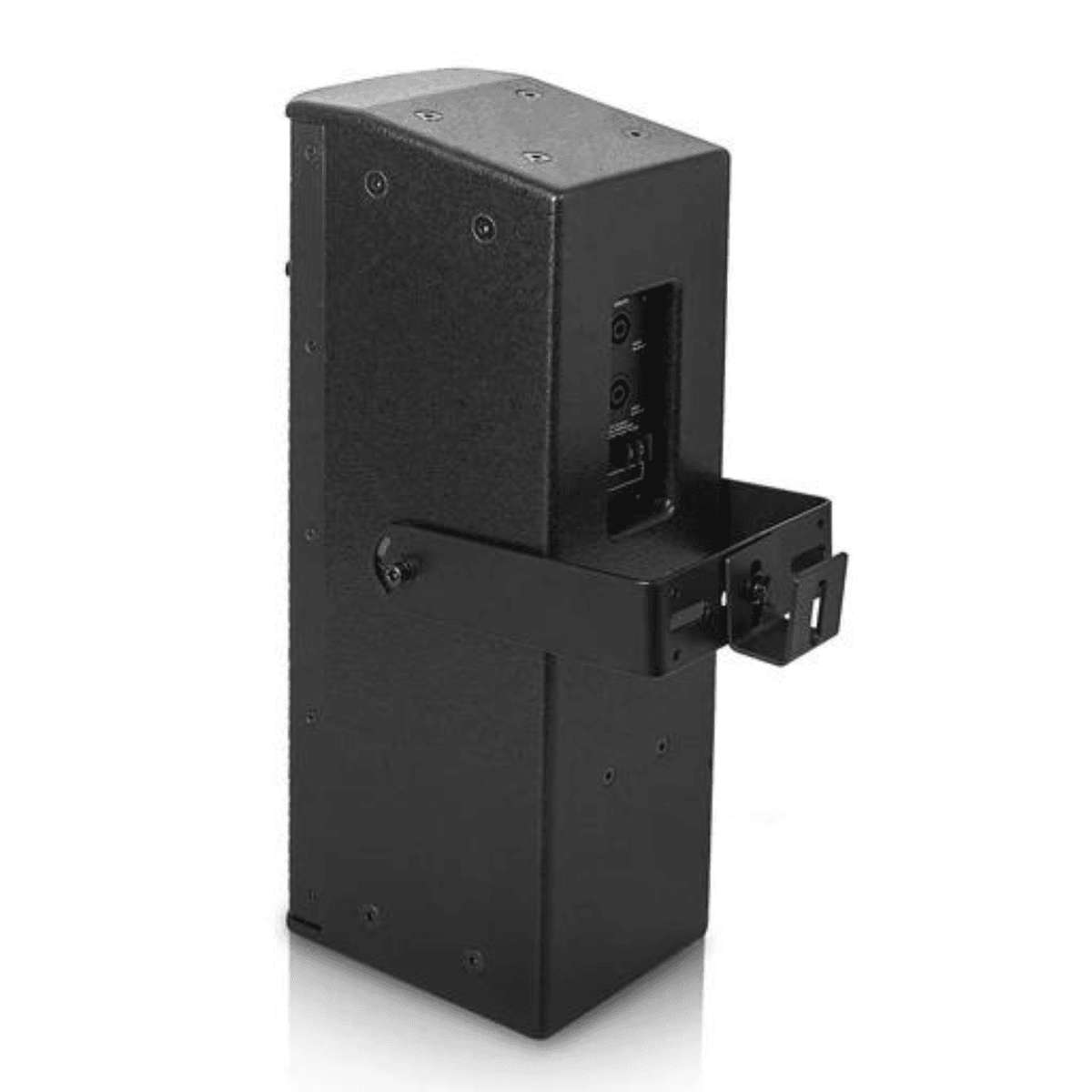

The CARPO-P3B includes U-brackets and adapters for 10° of tilt left, right and down as well as extension brackets for integrating 2 columns together. Optional 'omni-mount' wall mounts for precise angle adjustments and suspension setups (bracket and frame sold separately). Additionally, a 35mm socket on each column speaker is to be mounted with tripods and poles.
Compact and Lightweight Design

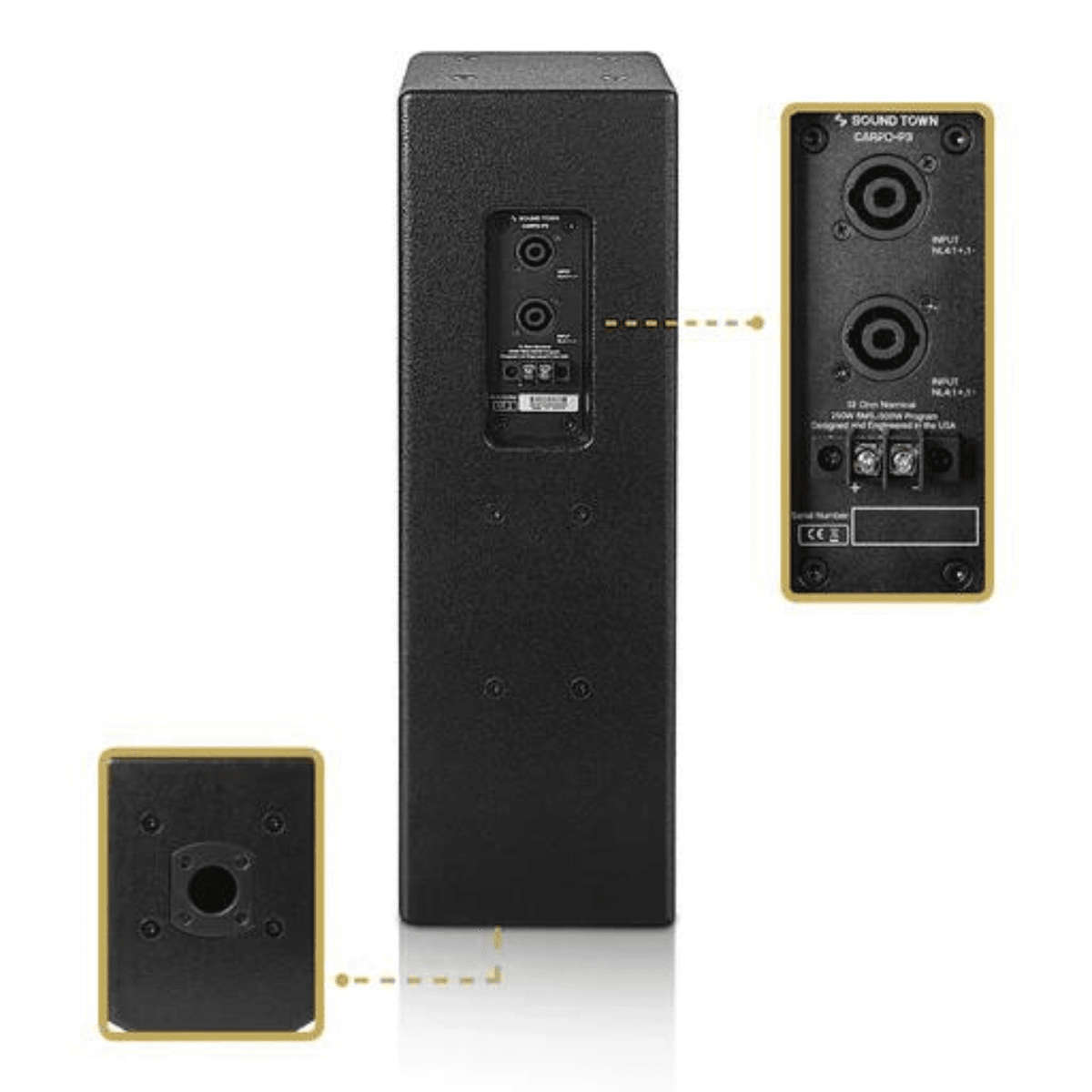

Designed for maximum portability without compromising on sound quality, each CARPO-P3B speaker has 2 Speakon inputs that easily connect with your PA system.
Durable Construction
Made with a birch plywood housing with a textured black painted finish for enhanced durability and superior sound resonance.
Versatile Applications
It can either be set up as permanent speakers or on-the-go portable PA speakers, ideal for auditoriums, stages, churches, restaurants, lounges and more.
General Specifications
- Model: CARPO-P3B
- Active / Passive: Passive
- Frequency Range: 87Hz~20K Hz
- Frequency Response: 92Hz~20K Hz
- Sensitivity: 94dB, 1W @ 1
- SPL Max: 122dB
- Dispersion: 120 x 20 Degrees
- Configuration: Dual 5" woofers and dual 3/4" compression drivers
- Transducer LF: 2 x 5", HF: 2 x 0.75"
- Voice Coil: 1.5"
- Magnet: 21 oz
- Impedance: 8
- Power Handling: 250W RMS, 500W PROGRAM
- Enclosure Material: High-grade 100% birch plywood
- Mounting Hardware: U Bracket, CWB-1A-PAIR Optional Omnimount Bracket, CARPO-PFF Optional Flying Frame
- Finish: Texture coating
- Grill & Rigging Component: Steel with an anti-corrosion coat
- Input: Speakon & Barrier Strip
- Output: Speakon & Barrier Strip
- Voltage: 100V-240V (50-60 Hz)

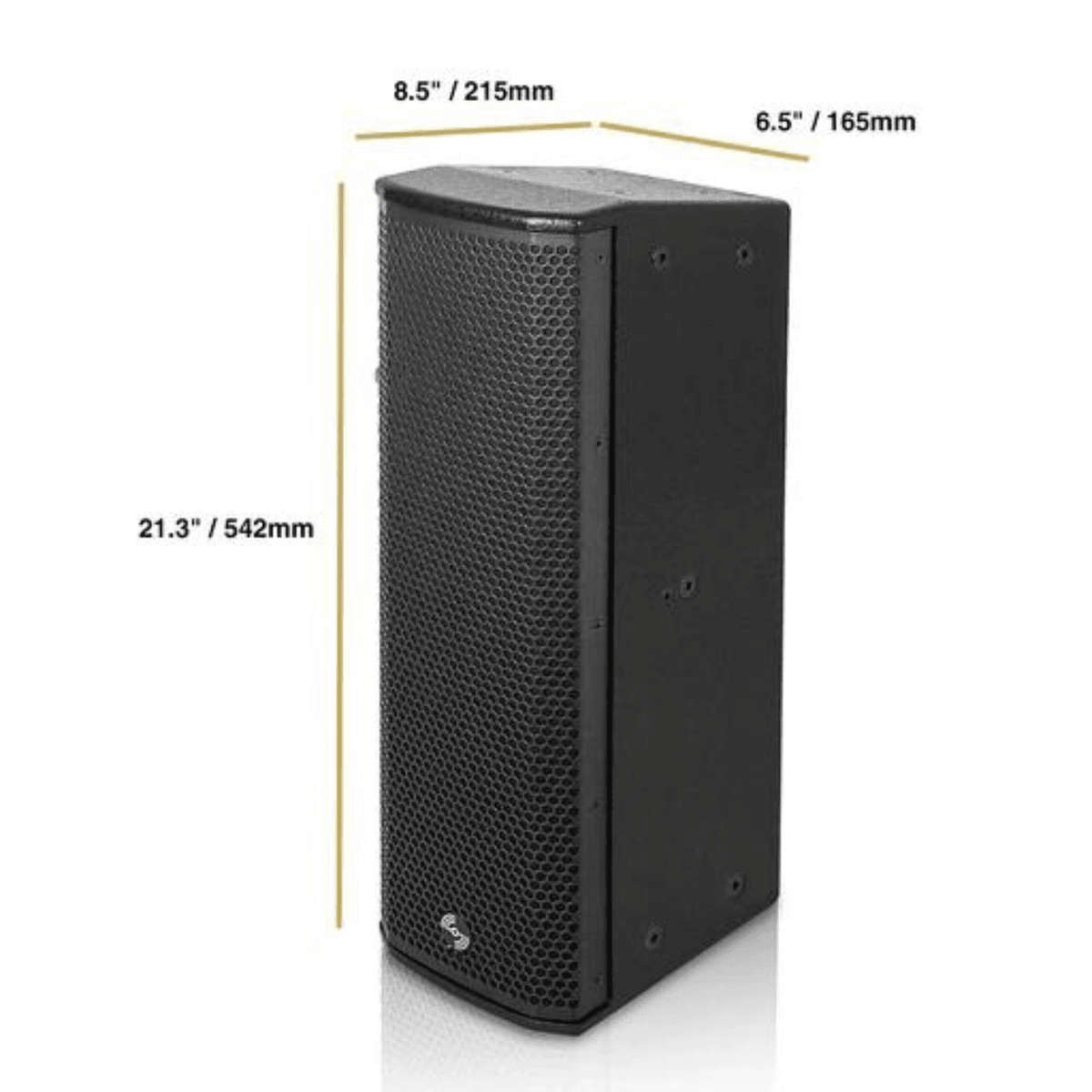

- Dimensions (WxDxH): 6.5" x 8.5" x 21.3"
- Weight: 21.5lbs (each)
