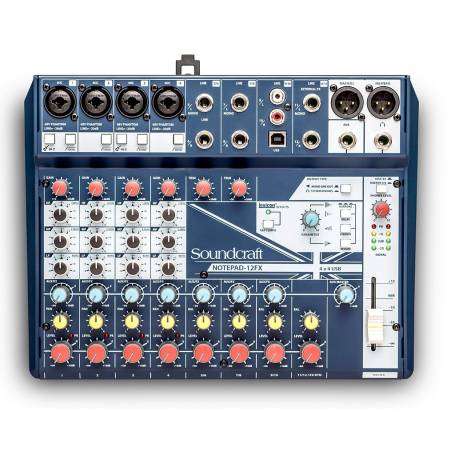

Soundcraft Notepad-12FX
The Notepad-12FX from Soundcraft is a small-format, 12-channel analog mixing console with an integrated 4x4 USB audio interface and built-in Lexicon effects, well suited for music production, podcasts, video production, interviews, rehearsals, writing sessions, and mobile events. The mixer combines professional-grade analog components such as four microphone preamps with combo XLR-1/4" inputs, 3-band EQ, and 100 Hz high-pass filters. Additionally, inputs 1 and 3 offer Hi-Z instrument inputs for incorporating guitars and other high-impedance instruments.
Channels 1-8 include gain/trim controls, and all channels feature an aux send, a pan knob, and level controls. Channels 5/6 and 7/8 feature 1/4" line-level inputs, while channels 9/10 include stereo RCA inputs. Channels 11/12 include 1/4" inputs and double as an external FX return for feeding an outboard effects processor. Outputs include Master L/R on XLR, a 1/4" aux send, and a dedicated 1/4" headphone output with selectable monitoring of the master bus or USB return 3/4. The on-board effects include delay with tap-tempo, reverb, chorus, and karaoke. The master section offers a master fader and four LED meters with -20, 0, +6 dB, and peak settings. The Notepad-12FX features a durable metal enclosure and ships with an external power supply.
Features
- Four Combo XLR-1/4" Mic/Line Inputs
- Six 1/4" Line Inputs and Two RCA Inputs
- 4-In/4-Out USB Audio Interface
- Lexicon FX with Delay, Reverb, & Chorus
- Master XLR Outputs
- Dedicated Aux Send and Stereo Return
- Independent Headphone Controls
- 3-Band EQ & Hi-Z Inputs on Channels 1&3
- Durable Metal Enclosure
Specifications
| Number of Analog Input Channels | 12 (4 Mono / 4 Stereo) |
| Number of Mic Preamps | 4 |
| Analog Output Channels | 1x Stereo Master Output
1x Mono Aux Send Output
1x Stereo Headphone Output |
| Mix Routing | Stereo Main Mix |
| EQ | 3-Band EQ |
| Built-In Effects | Delay
Chorus
Reverb |
| USB I/O | 1x USB-B |
| Wireless | No |
| Rack Mountable | No |
