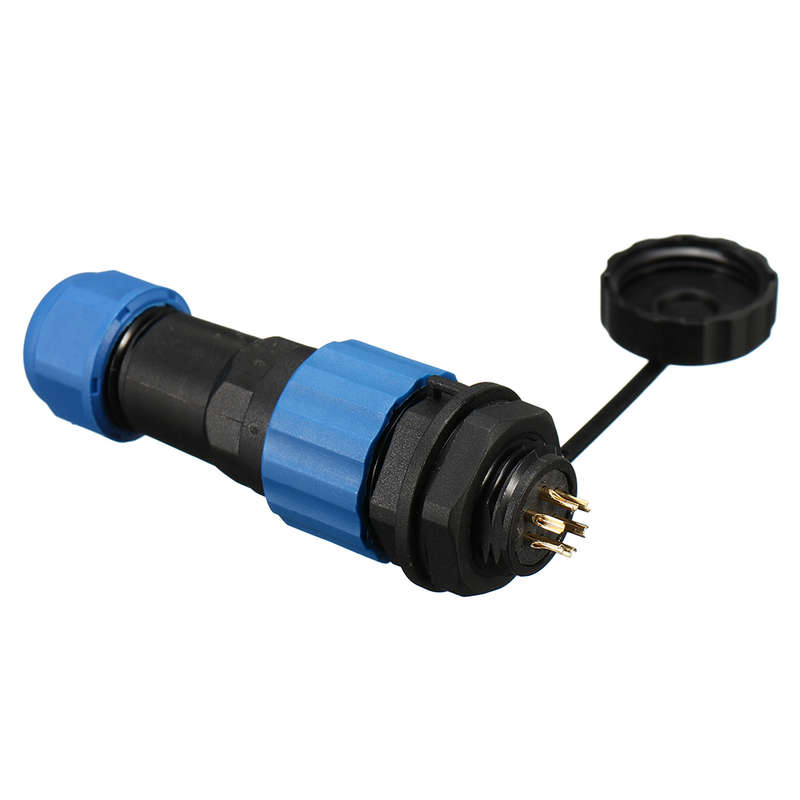

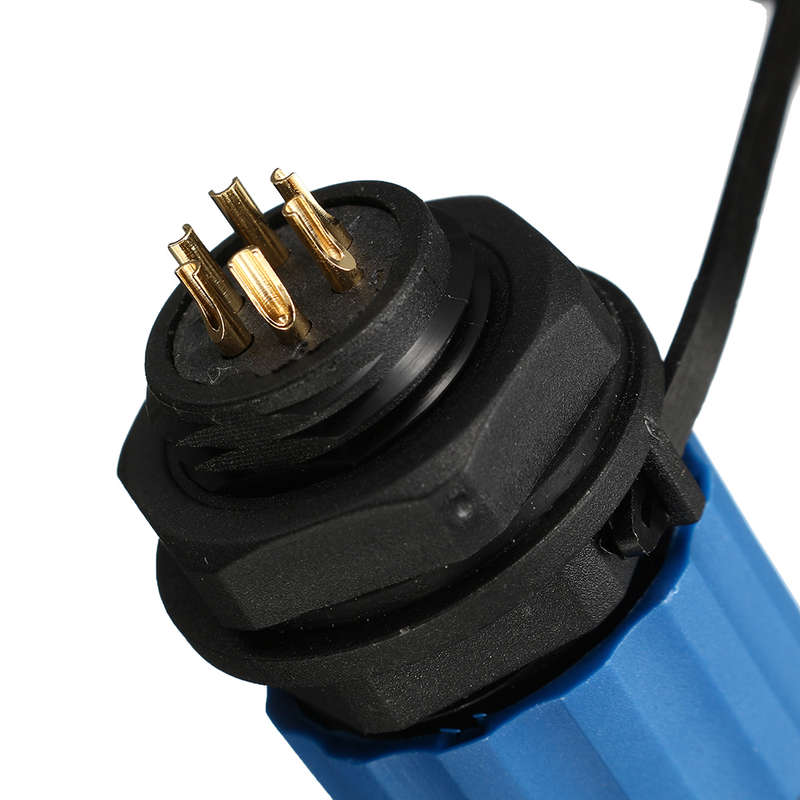

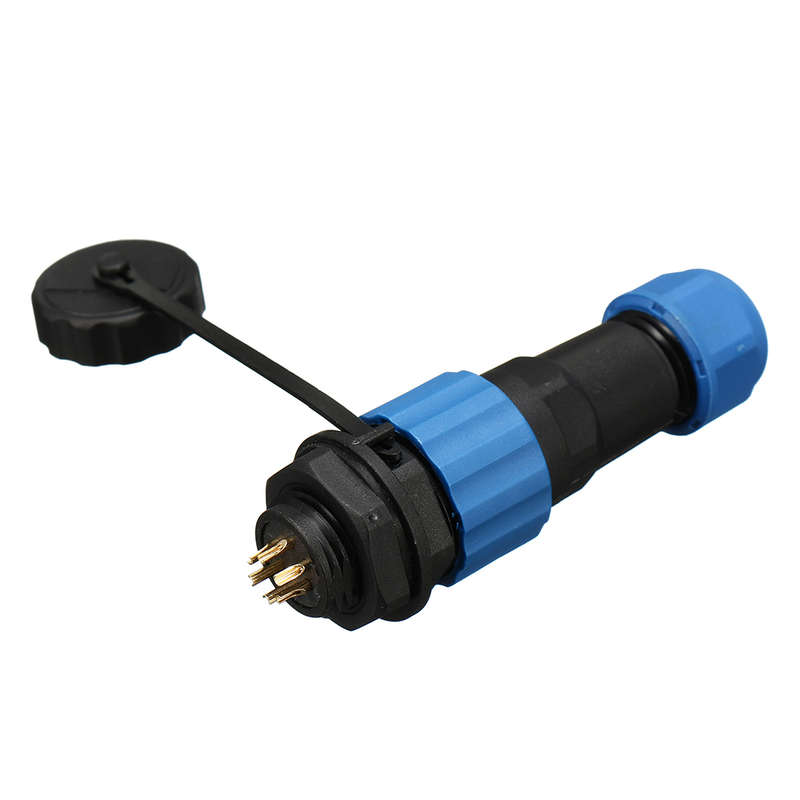

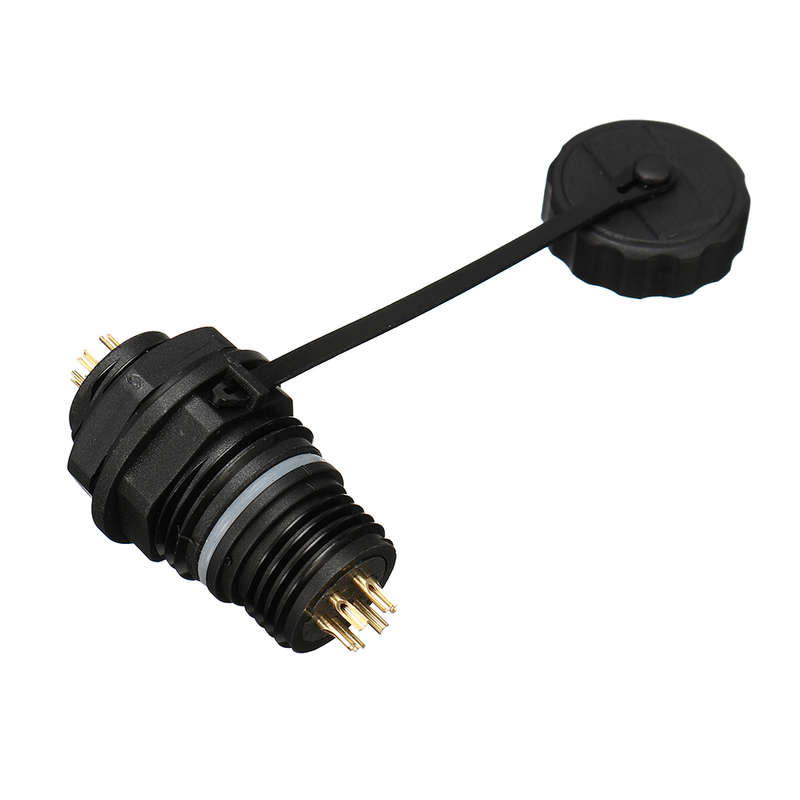

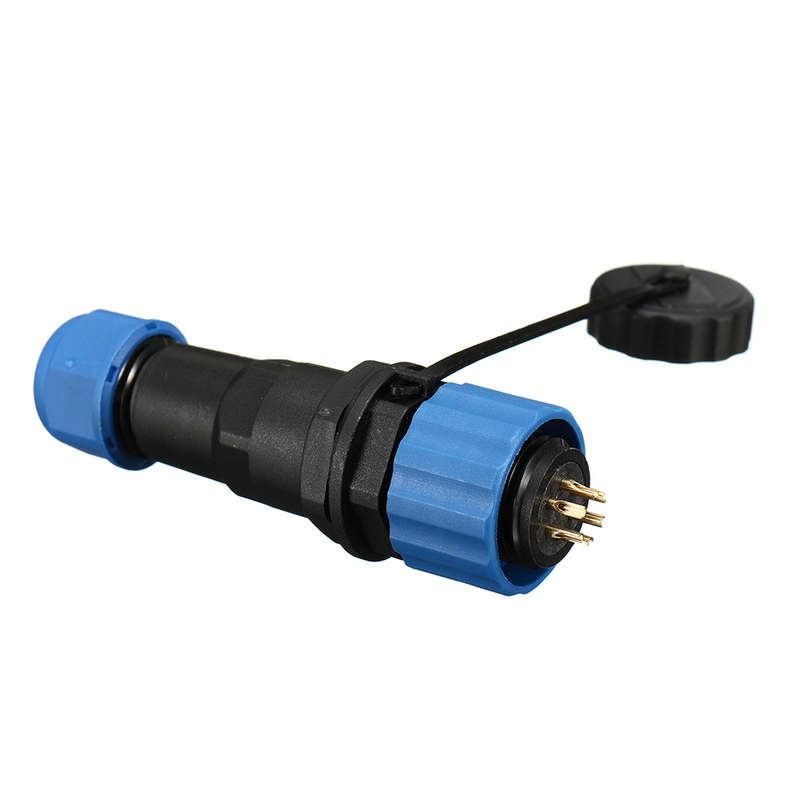

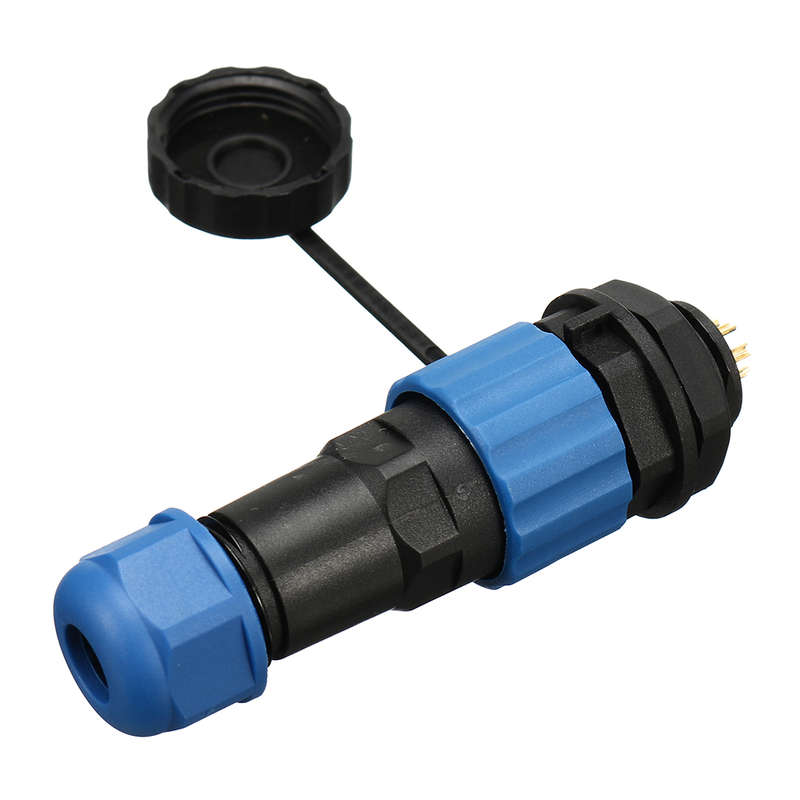

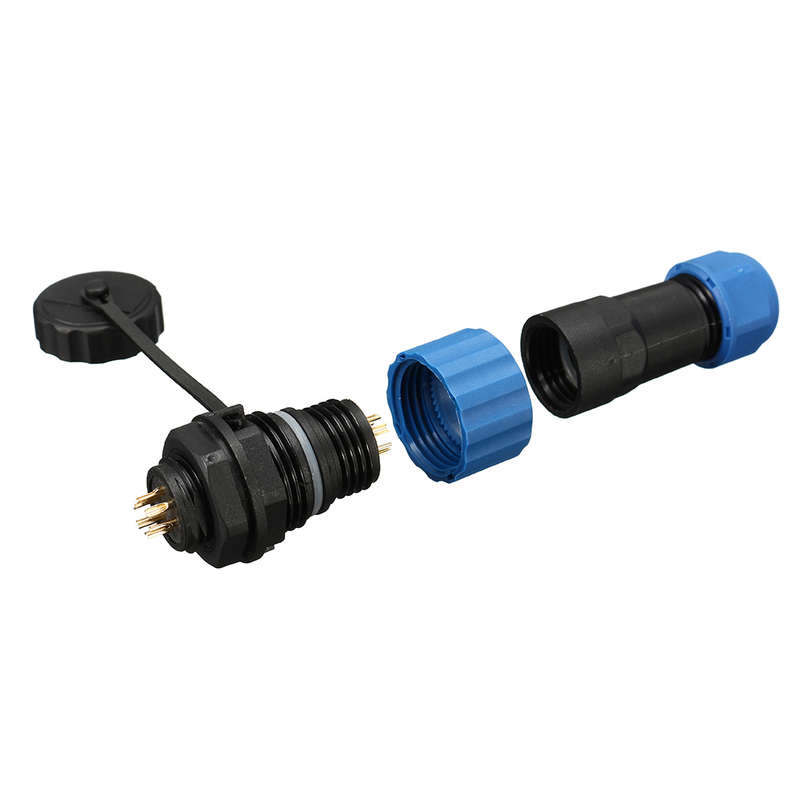

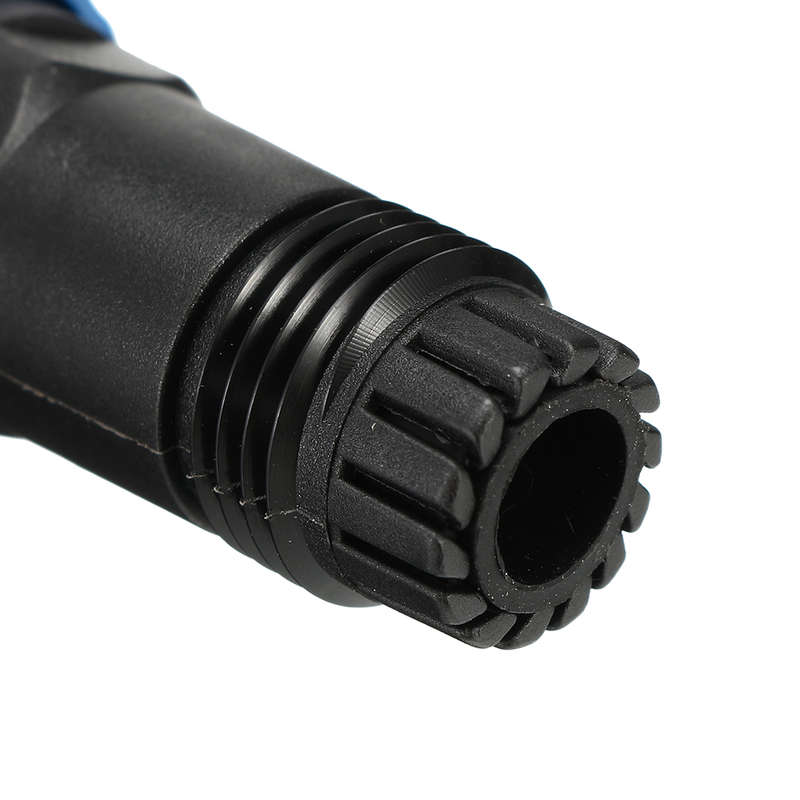

SP16 IP68 Waterproof Connector Male Plug & Female Socket 6 Pin Panel Mount Wire Cable Connector Avia

New

20 available

R396.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3824

92.71 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

648377468

Specification parameter:

Shell material: thermoplastic PA66
Insulator: thermoplastic PPS high temperature resistant 260
Contact material: copper (gold plated, silver plated)
Sealing ring: silica gel
Housing gender: male female seat
Connection: thread connection
Operating temperature: -25 degrees C~110 degrees C
Relative humidity: 90%~95% (40 + 2 degrees C)
Sealing: in line with IP68
Applicable wire diameter: diameter 4.0~6.5mm
Mechanical life: more than 500 times
Contact diameter: 1.8mm
Rated current: 5A
Rated voltage: 250VAC
Test voltage: 1500VAC
Contact resistance: 2M
Insulation resistance: 2000M

Package included:

1 x 6 Pin Connector Aviation Plug
