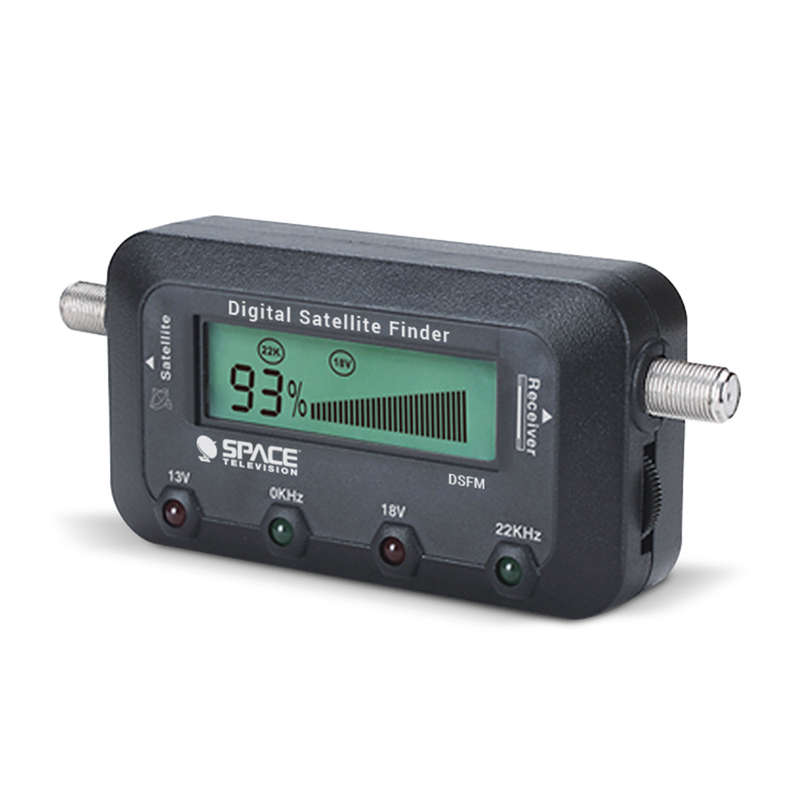

SpaceTV Digital Satellite Finder (DSFM)

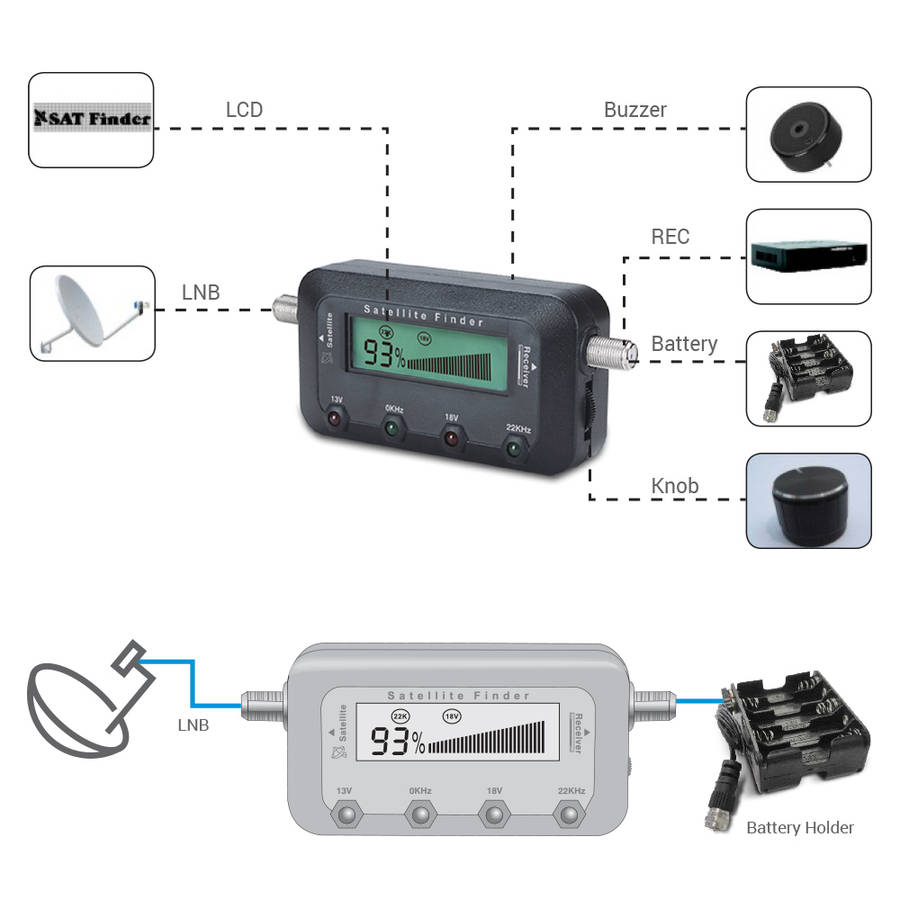

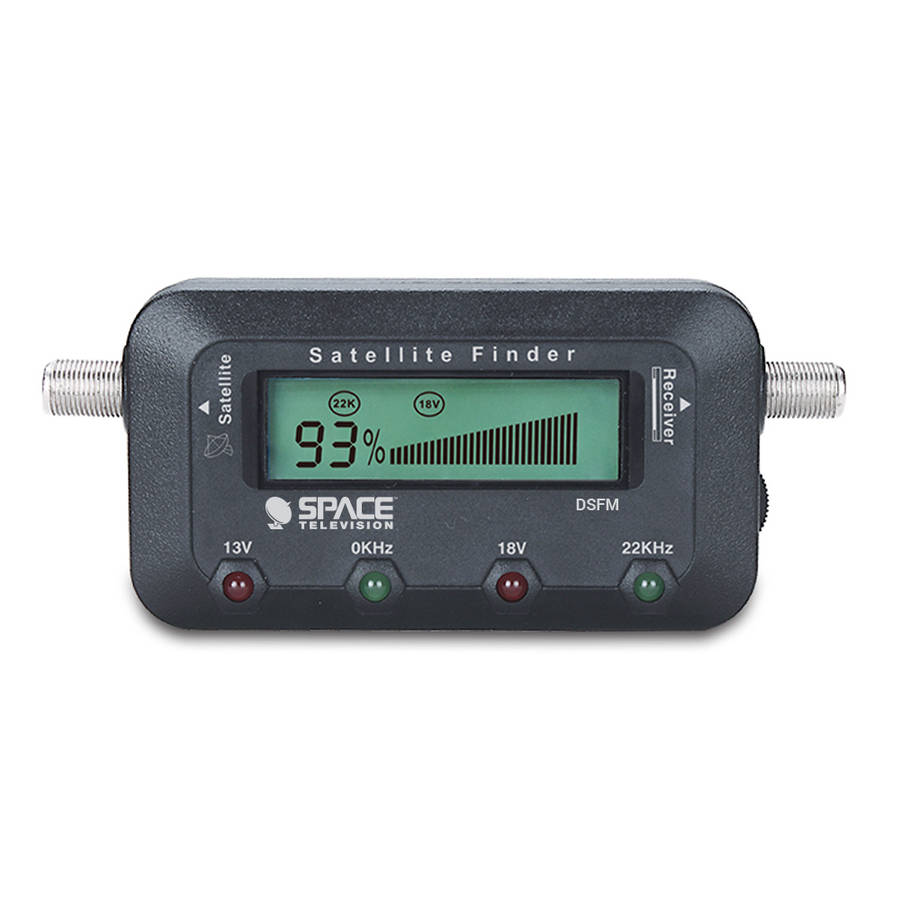

SpaceTV Digital in-line IF signal strength meter assists to align any satellitedish for optimum reception.FEATURES： LCD display DC pass to LNB In-line IF signal strength meter Button operationIMPORTANT NOTES: To avoid a continuous full scale reading, do not use the Satellite Finderdirectly in front of the dish. When using a LNB with gain higher than 60dB inserts a 5dB attenuator betweenthe LNB/LNBF and the Satellite Finder.The Satellite Finder has optional 4LED on the front panel indicating:A) LED marked with 22KHz: The receiver is sending a 22KHz signal, used to switchsome LNB to the high band frequency.B) LED marked with 0Hz: The receiver does not send the 22KHz signal.C) LED marked with 13V: Indicating the satellite receiver is switching 13V powerto switch the LNB's vertical polarization.D) LED marked with 18V: Indicating the satellite receiver is switching 18V powerto switch the LNB's horizontal polarization.
