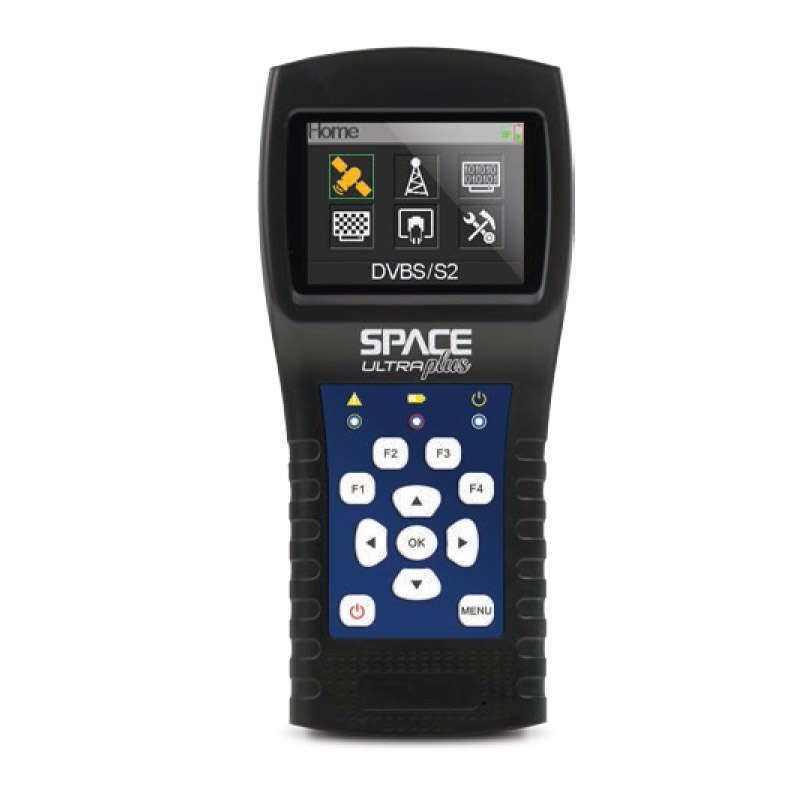

The Space Ultra+ is perfect for accurate analysis and measurement. Ideal forAnalogue & Digital TV, Satellite + Unicable (SATCR) & Fibre Optic installations.Support DVBS/DVBS2/DVBT/DVBT2/DVBC/ DVBC2/MCNS/ OPTICALLNB short-circuit protection and indicator.Extremely fast and accurate with high sensitivity.320*240 color LCD display with controllable back light.Audible signal lock notification.Optical power level measurement.All DiSEqC protocol monitor based on 22KHz tone.Power-supply 12V@1A.Ultra-long standby, low power consumption.Fast charging Li-ion battery that can last around 3 hours of use.DVB-TBit Error Rate (BER) CBER (before Viterbi): 1E-7 1E-3VBER (before Reed Solomon): 1E-7 1E-3Frequency range 42-1005MHzPower level 30-100 dB?V, +/-2dBSNR 5 35dB, +/-0.5dBBandwidth 6MHz, 7 MHz, 8 MHzFFT type 2k, 8kConstellation QPSK, 16QAM, 64QAMViterbi rate 1/2, 2/3, 3/4, 5/6, 7/8Guard interval autoSpectrum inversion autoDVB-T2 / T2 LiteBit Error Rate (BER) CBER (before LDPC): 1E-7 1E-3LBER (before BCH): 1E-9 1E-5Frequency range 42-1005MHzPower level 30-100 dB?V, +/-2dBModulation Error Rate(MER) 5 35dB, +/-0.5dBBandwidth 1.7MHz, 5MHz, 6MHz, 7 MHz, 8 MHzMode SISO, MISO, PLP single or multipleFFT type 1k, 2k, 4k, 8k, 16k, 32k + extended bandwidthConstellation QPSK, 16QAM, 64QAM, 256QAMViterbi rate 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 1/3, 2/5Guard Interval autoSpectrum inversion autoDVB-C J83ABit Error Rate (BER) BER (before Reed Solomon): 1E-7 1E-3PER (Packet Error Rate): 1E-6 1E-2Frequency range 42-1005MHzPower level 35-100 dB?V, +/-2dBSNR 20 40dB, +/-0.5dBSymbol Rate 1.7 to 7.2 Msym/sConstellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAMSpectrum inversion autoMCNS J83BBit Error Rate (BER) BER (before Reed Solomon): 1E-7 1E-3PER (Packet Error Rate): 1E-6 1E-2Frequency range 42-1005MHzPower level 35-100 dB?V, +/-2dBSNR 20 40dB, +/-0.5dBSymbol Rate 5.6 Msym/sConstellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAMSpectrum inversion autoDVB-C2Bit Error Rate (BER) CBER (before LDPC): 1E-7 1E-3LBER (before BCH): 1E-9 1E-5Frequency range 42-1005MHzPower level 30-100 dB?V, +/-2dBSNR 5 35dB, +/-0.5dBBandwidth 6MHz, 8 MHzFFT type 4kConstellation 16QAM, 64QAM, 256QAM, 1024QAM, 4096QAMViterbi rate 2/3, 3/4, 4/5, 5/6, 8/9, 9/10Guard interval autoSpectrum inversion autoDVB-SBit Error Rate (BER) CBER (before Viterbi): 1E-7 1E-3VBER (before Reed Solomon): 1E-7 1E-3Frequency range 950-2150MHzPower level 35-100 dB?V, +/-3dBCNR 0 20dB, +/-0.5dBSymbol rate 333 Ksym/s to 45 Msym/sConstellation QPSKViterbi rate 1/2, 2/3, 3/4, 5/6, 6/7, 7/8Spectrum inversion autoDVB-S2Bit Error Rate (BER) CBER (before LDPC): 1E-7 1E-3LBER (before BCH): 1E-9 1E-5Frequency range 950-2150MHzPower level 35-100 dB?V, +/-3dBCNR 0 20dB, +/-0.5dBSymbol rate 333 Ksym/s to 45 Msym/sConstellation QPSK, 8PSK, 16APSK, 32APSKViterbi rate 2/5, 1/2, 3/5, 2/3, 3/4, 5/6, 8/9, 9/10Spectrum inversion autoInputs / OutputsRF input 75 Ohms, F (with adaptor)Interfaces Mini USB for power input 12V@1ADisplay 2.4 Inch, LCDBattery Battery Li-ion 1400mAH@7,.4VCharging time 3 hour for 80% of capacityOperating temperature -5°C to 45°CStorage temperature -10°C to 60°CDimensions 174 x 82x 35 mmWeight 0.54kgRemote supplyVoltage 5V/13V/18 V200 mA max 13/18 V400 mA maxDiSEqC DiSEqC 1.2 control of dish motor switches committed & uncommittedMini DiSEqC (22kHz) 22 kHz, Tone BurstSCD EN 50494 8 slots max switch committedSCD2 EN 50607 32 slots maxWhat's in the box1 x Space Ultra+ Handheld Satellite, Digital, Terrestrial Combo Meter
