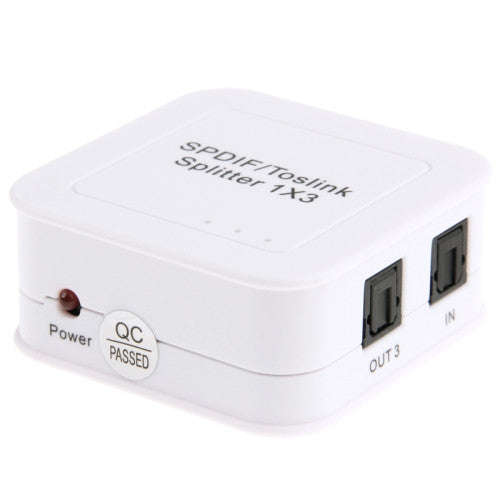

SPDIF / TOSLINK Power Adapter Digital Optical Audio Splitter Amplifier 1x3(White)

Introduction:

This SPDIF/TOSLINK Digital Optical Audio splitter allows you to distribute input digital optical audio to three amplifiers or receivers seamlessly and flawlessly without degradation. It supports LPCM2.0 DTS and Dolby-AC3 audio formats.

Features:

1) One ways of optical fiber signal input splitter to three sets of SPDIF/TosLink signal receiving device

2) Maintain digital sonic integrity and provides crystal clear digital sound quality over the long range

3) Support signal retiming

4) One way optical fiber signal splits into three identical outputs at the same time

5) Support Dolby Digital & DTS 5.1

6) Support LPCM Stereo 32 kHz 44.1 kHz 48 kHz and 96 kHz

7) Integrated circuit implementation delivers unsurpassed reliability and fidelity. Virtually no loss of quality

8) Use optical fiber cable loss less the 0.2Db/m Output distance can be up to 40m.

9) Over-voltage protection

10) Plug and play Installs in minutes

11) DC 5V/500mA power supply

Specification:

1) Audio format support: LPCM2.0/DTS/Dolby-AC3

2) Peak wave length: 650nm

3) Max baud rate: 16Mbps

4) Output cable distance: >= 40m (Use the optical fiber cable loss less the 0.2Db/m)

5) Max working current: 100mA

6) Input: AC (50HZ 60HZ) 100V-240V

7) Output: DC5V/500mA

8) Operating Temperature range: 0 to +40 Celsius

9) Operating Humidity range: 5 to 90 percent RH (No Condensation)

10) Weight: 35g

11) Dimension: 54mm x 54mm x 23.5mm
