Speaker Power Amplifier Board Dual 15A Relay Protector Boot Delay and DC Detection Protection Module

New

20 available

R438.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3931

92.49 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651238226

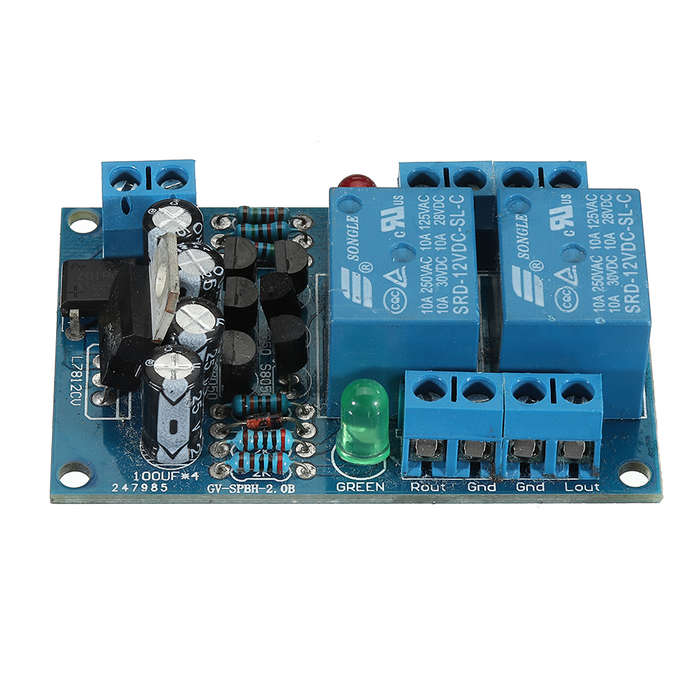

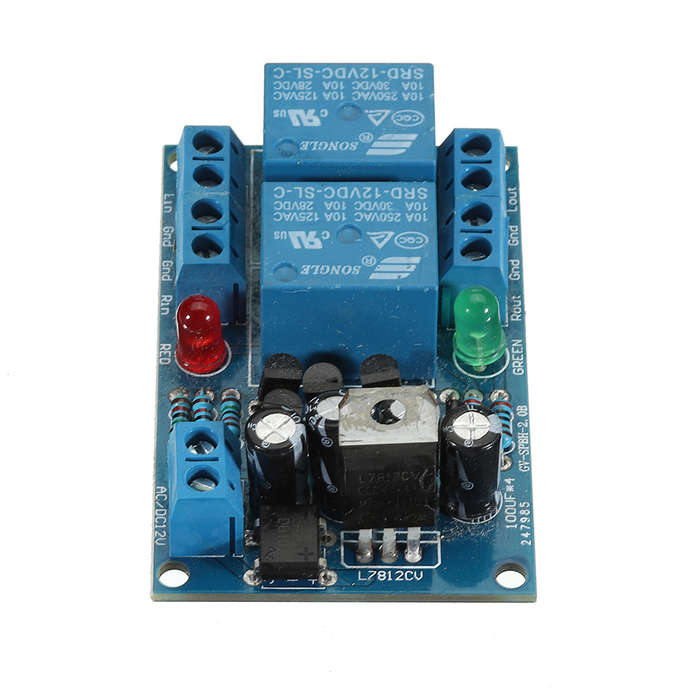

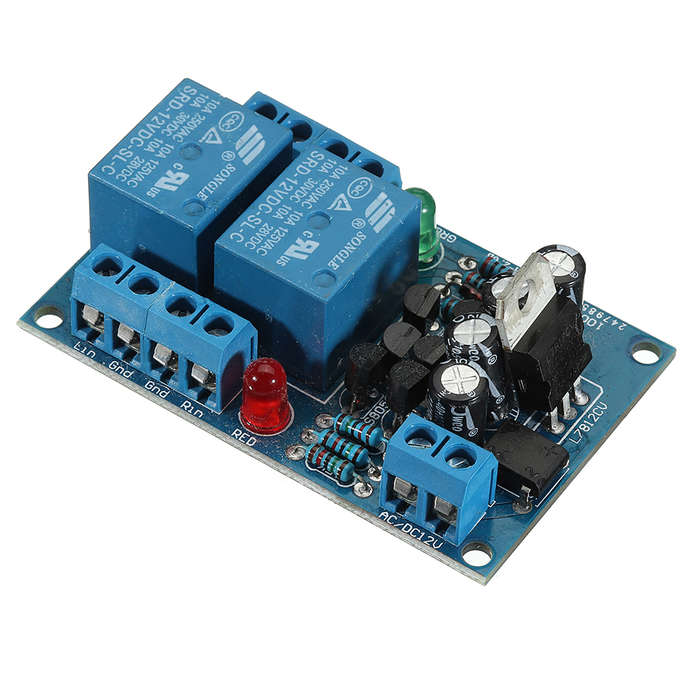

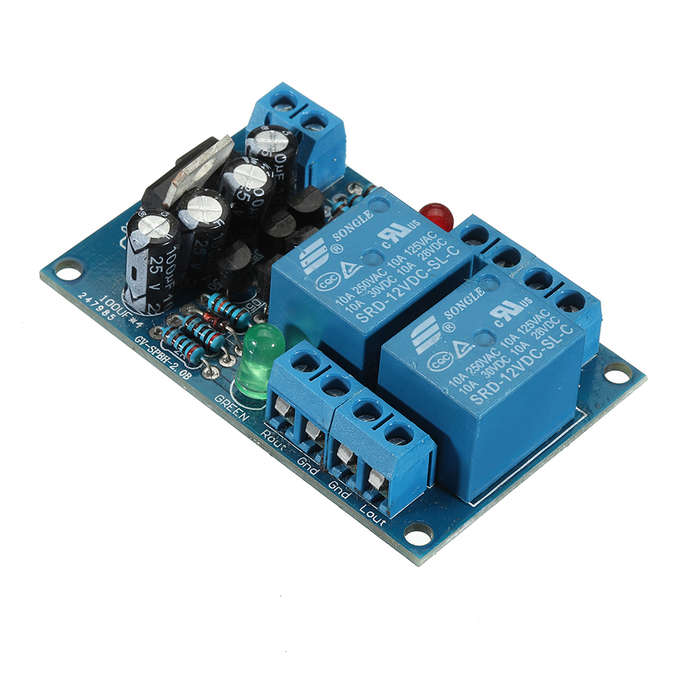

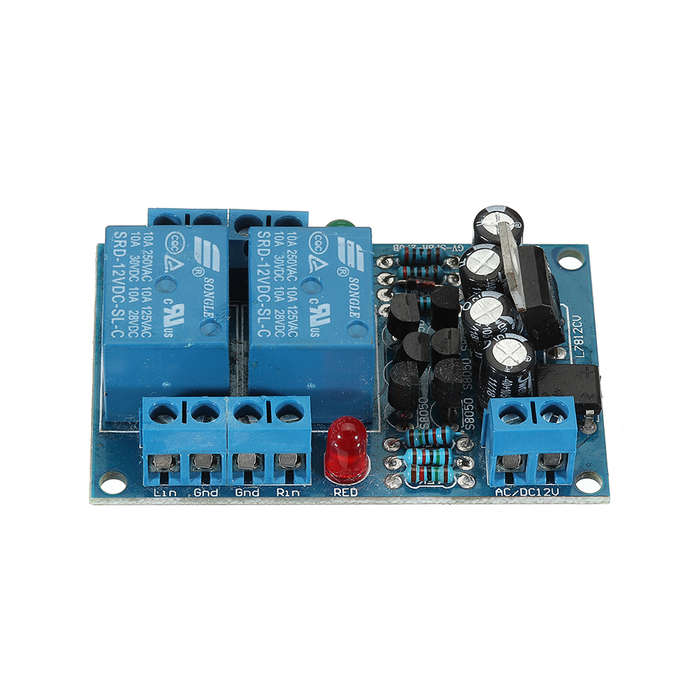

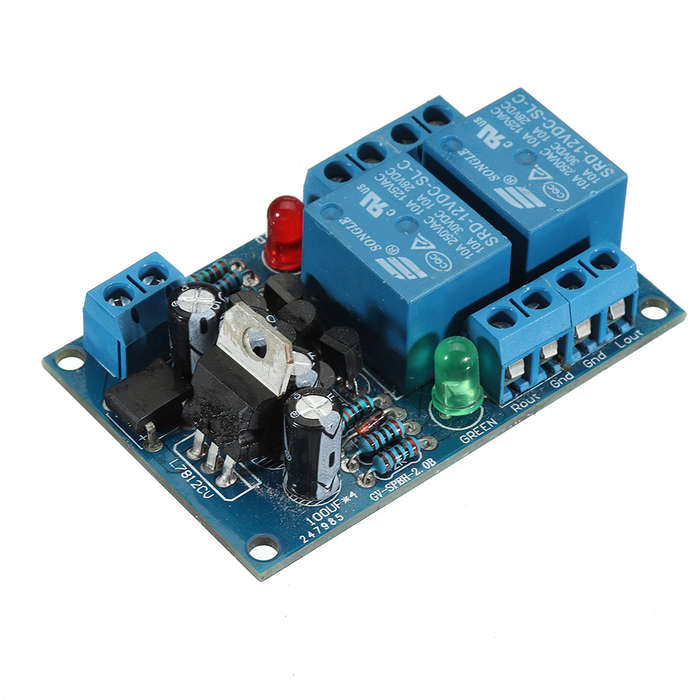

Introduction: The speaker protection board has a power-on delay (about 3 seconds) and DC protection (about 1V control voltage). With LED status display, it will light when it is protected, and will be extinguished when it is working normally. Adopt 15A high current relay, suitable for most power amplifier boards. The working voltage is 12-15V, which requires independent power supply.

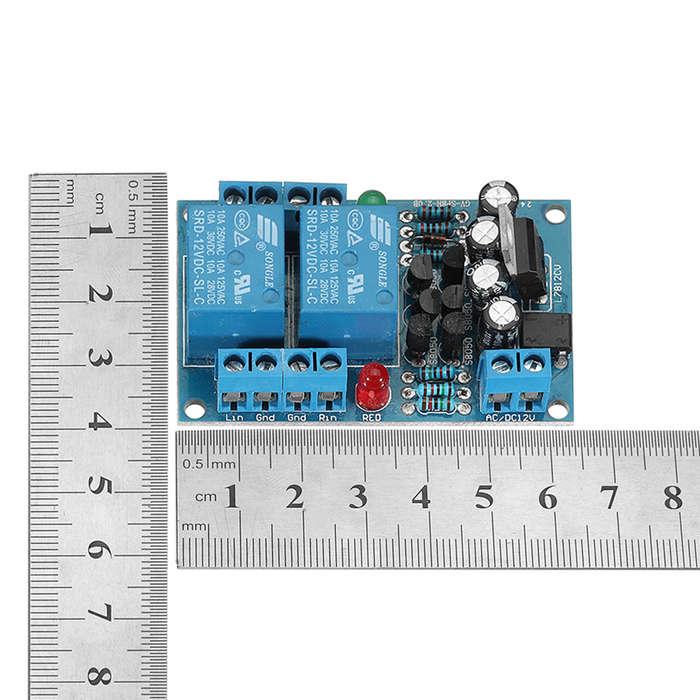

Dimensions: length 65mm width 40mm height 25mm

Note: 1. Speaker protection requires independent power supply and cannot share one winding with other circuits. 2. The BTL circuit requires two sets of protection boards (one set of one channel) 3. The protection board is only suitable for dual power supply amplifiers, and cannot be used for single power supply amplifiers.
Package includes:

1 x Speaker protection board
