Speroni Combination Submersible Pump - 0.37Kw

Comination Submersible Pump
Brand: Speroni
Type: Combination Submersible
Power: 0.37Kw

Application:
- Water Supply
- Irrigation
- Pressure Boosting

Specifications:
The Speroni submersible borehole pump range covers a wide range of pumping duties for agricultural and domestic
applications. Floating type impellers require less starting torque and are less affected by sand or other abrasive
materials. Pumps with less than 19 impellers are fitted with one shaft bearing and pumps with more than 19
impellers are fitted with two bearings.

Flow rates:
Height (meters) and m³/h (cubic meter of liquid per hour)
- 86m 0.3 m³/h
- 78m 0.6 m³/h
- 70m 0.9 m³/h
- 56m 1.2 m³/h
- 42m 1.5 m³/h
- 23m 1.8 m³/h

Operating conditions:
- Sand Content: Max. 50 g/m³

Motor:
- Insulation class F
- Protection IP68

Materials:
- Stainless steel Hex 304 shaft
- Stainless steel 304 shaft coupling
- Noryl impeller
- Stainless steel 304 strainer
- Stainless steel 304 discharge head

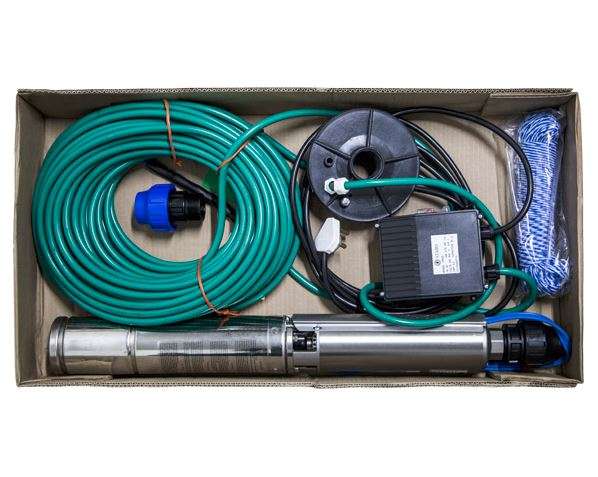

Included:
- 302ST-0513 / Speroni Submersible Pump
- Stairs 230 V Submersible Motor
- 50 m Submersible Cable
- Control Box
- Rope
- HDPE Base Plate 32 mm
- 2 x Compression Male Adaptors 32 mm x 1-¼"
- 5 m Cabtyre & 3 Point Plug.

Everything is pre-assembled, cabled jointed to the motor, only the 32 mm HDPE pipe must be supplied for installation.
To be installed at a maximum depth of 50 m.
- Not included in kit: 32 mm pipe, inducer sleeve, above ground fittings
