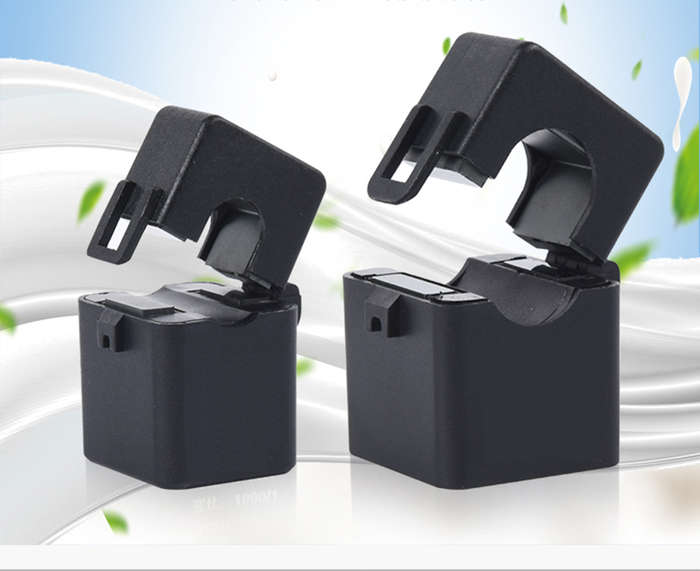

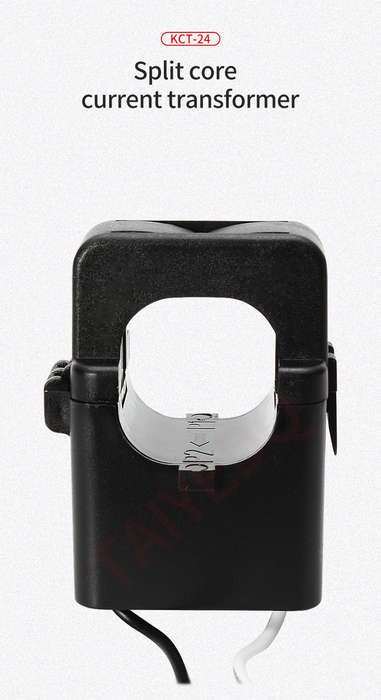

Split Core Current Transformer Clamp CT Sensor KCT-24 Current Sensor 100A 150A 200... (TYPE: 150/5A)

SELECTED OPTION:
TYPE: 150/5A

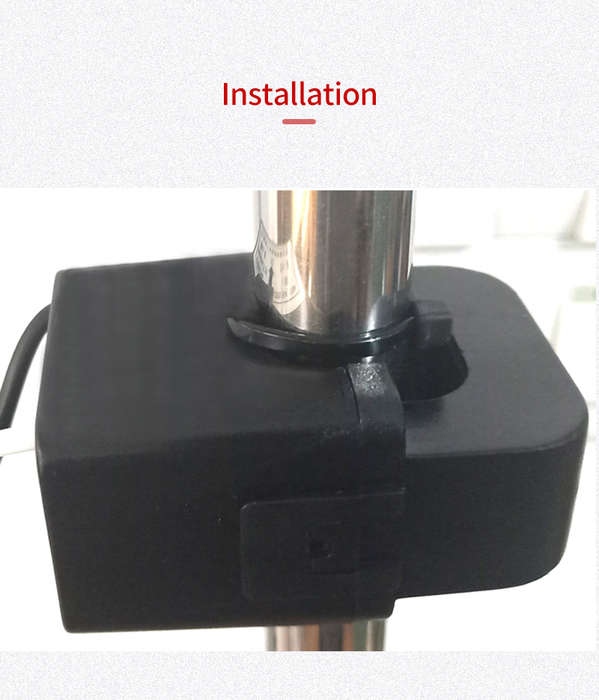

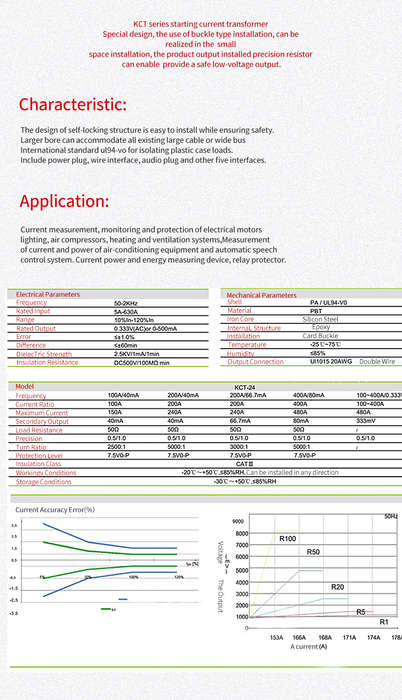

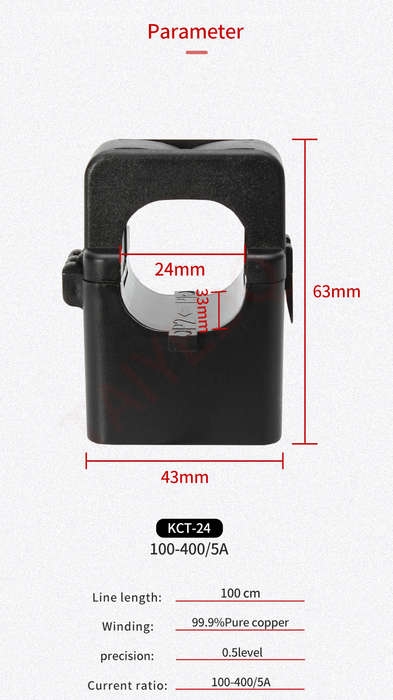

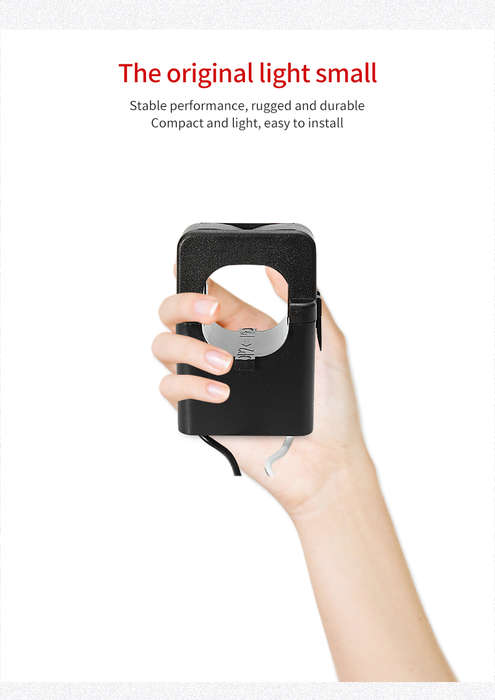

Features: 1) The structure of the self-locking, safe, easy to install, portable 2) Wide inner window, allowing clamping of big cables or bus-bars 3) Wide range of sizes to accommodate all the existing installations 4) Isolated plastic case recognized 5) Wires plugs, Audio plugs, Power plugs and so on five kinds of plugs 6) Meet the standard IEC60044-1 and ANSI C12.20 7) High accuracy class ,wide linearity 8) Superitor stability ,separate the external magneitc field interference 9) Measure the current directly 10) It is with the diode to save people's life Specification: Accuracy: class 1 Application: Electricity Measuring Operating Temperature: -40ﾣC~+70ﾣC Coil Number: Autotransformer Phase: Single Model Number: KCT24 Ratio:100/5A 150/5A,200/5A,250/5A,300/5A,400/5A Coil Structure: Split Core Window Hole size:24MM Applications: 1:Current measurement, monitoring and protection for electrical wiring and equipment. 2:Current and power measurement for electric motors, lighting, air compressor,heating and ventilation system, air-condition equipment and automation a control system. 3:Current, power and energy monitoring device. 4:Relay protection device. Package includes: 1 x Current Sensor Details Pictures:
