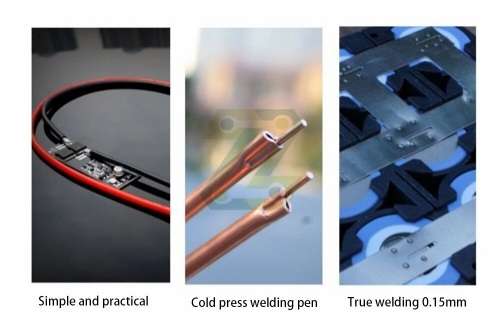

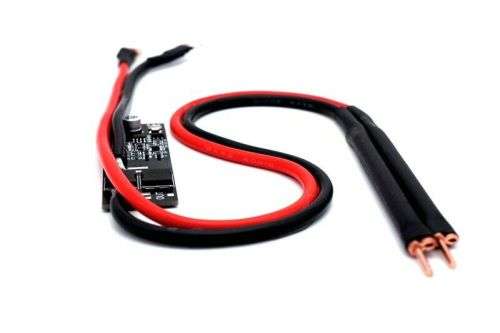

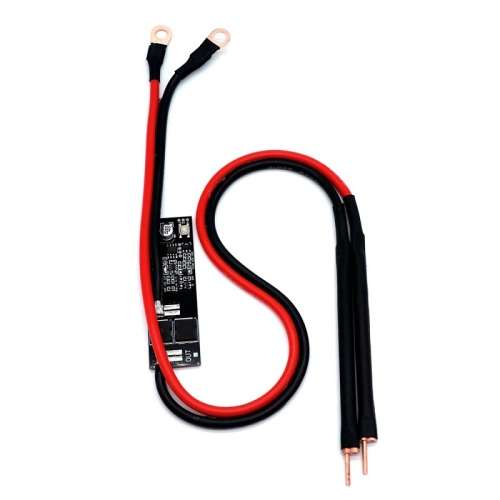

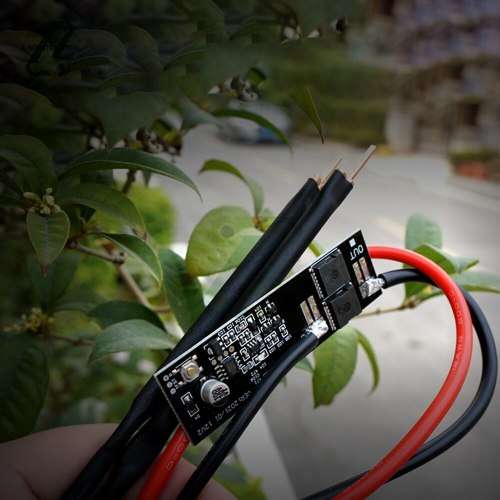

Spot Welder Motherboard with Indicator:
Specifications:
System Voltage: 7.2-14.6V
Working Current: about 150A
Trigger Mode: Automatic trigger
12V (35AH-80AH) Start-up lead-acid battery with good performance and small internal resistance
12V 4000MAH 45C or more lithium battery pack with good performance
5-6 series 3000F farad capacitor bank, etc.
The battery pack that can start the car can basically meet the power supply needs of this circuit
The transformer cannot replace the battery pack for power supply, and the wire cannot be extended or replaced with other wire diameters or materials.
Switch function: press the switch for 1.5 seconds to switch (flashing 1, 2 and 3 times respectively are 3 levels of power, press again to shut down) automatically shut down after 10 minutes of inactivity.

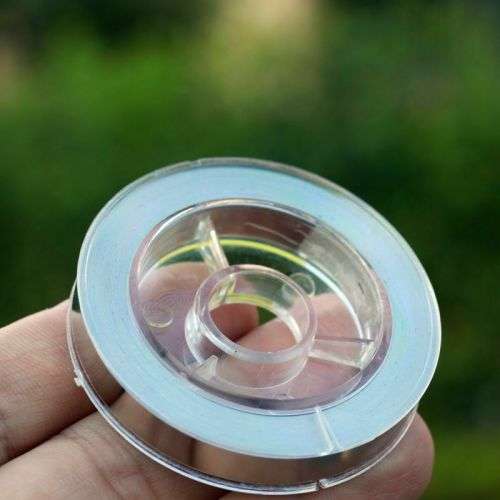

* Includes roll of solder Tab
