Square Groz Combination Set 180 910

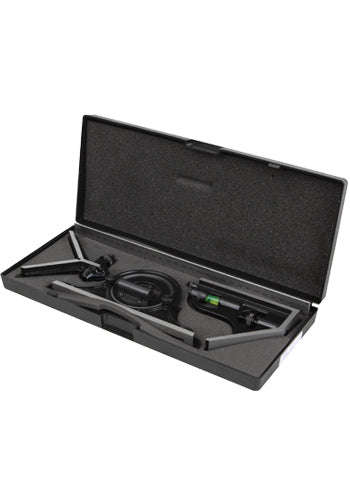

SQUARE GROZ COMBINATION SET 180-910

An exceptional set which combines several tools: Try squares, miter,depth gauge, height gauge, marking gauge, level and a precision rule

Constructed from high quality cast iron

Comprises:

Square Head

Highly versatile layout tool for scribing right angles and parallellines

Precisely ground 90 degrees square face and a 45 degrees miterface

Used as a measuring tool that can work as a try square, miter, depthgauge, height gauge and a level

Center Head

Used for accurately locating center of a cylindrical or square workpiece

Protractor Head

Includes revolving turrets with direct reading double graduationsfrom 0 to 180degrees in opposite directions,

This permits accurate and quick direct reading of angles above orbelow the blade

Steel Rule

Precision Steel Rule with shoulder on one side, Rule is 12 inch (300mm) long x 1 inch

(25 mm) wide x 2 mm thick

Graduated with 0.50 mm and 32nds on one side and 1.0 mm and 64ths onthe reverse side

CODE: GRO6530

BARCODE: 8901486010700

HEIGHT: 5.5cm

LENGTH: 33.5cm

WIDTH: 18.5cm

WEIGHT: 1.52kg
