Features:
1. Support 5 million pixel high-definition network video preview, storage and playback
2. Supports up to 8 5MP wireless cameras
3. Support H.265, H.264 coding front-end adaptive access
4. Supports storage and playback of up to 16TB hard drive (2.5 inches)
5. Support H265 compression format, which can save 50% storage space

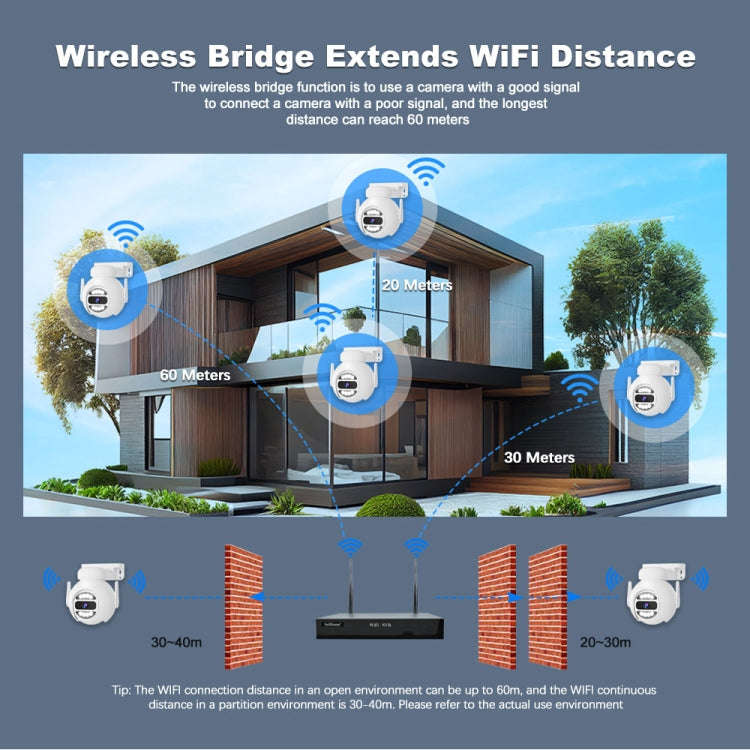

6. Support wireless bridge mode, WiFi range up to 60 meters
WiFi NVR parameters:

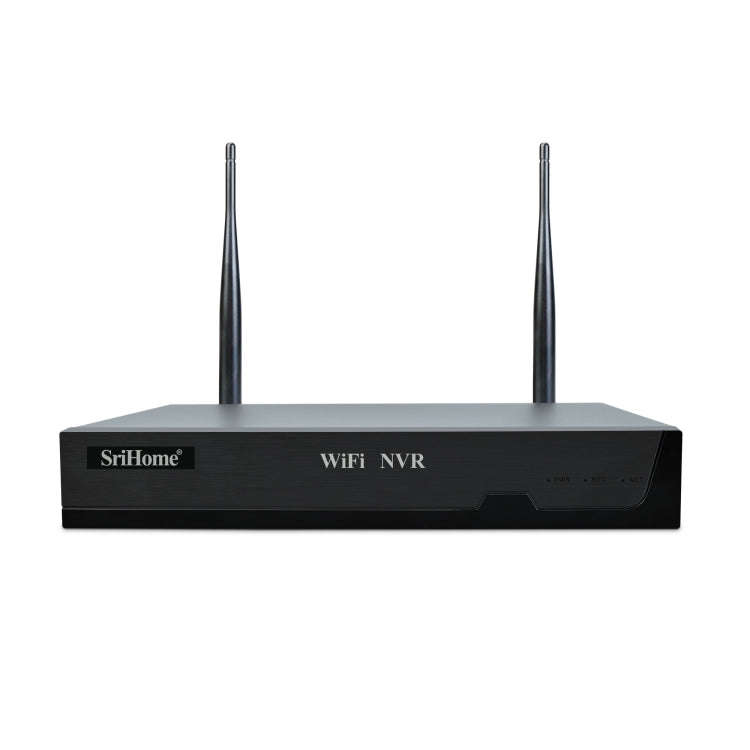

1. Model: NVS001E (WiFi version)
2. Video:
Video input: Max 8 CH
Video output: 1 HDMI, 1 VGA
Compression format: H265/H264/Smart264
Encoding capability: 8x5M/25fps
Decoding capability: 1x5M/25fps (main stream), 8xD1/25fps (auxiliary stream)
Decoding format: H265; H.264;
3. Audio:
Audio: two-way voice
Audio output: HDMI and 1 AUX interface audio output
Decoding format: G.711U; AAC
4. Hard drive:
Interface: 1 SATA interface
Capacity: Support 16TB max
5. Recording/playback:
Recording mode: scheduled recording, alarm recording
Playback mode: regular playback and APP playback
Backup mode: regular backup
6. Network management:
WiFi: 2.4G, only for standard camera connection
WAN: RJ45 wired connection
Network services: Support DHCP, DNS, DDNS, NTP, UPNP, etc.
7. Alarm:
Alarm mode: motion detection alarm, humanoid detection alarm
Alarm reminder: APP push, alarm whistle

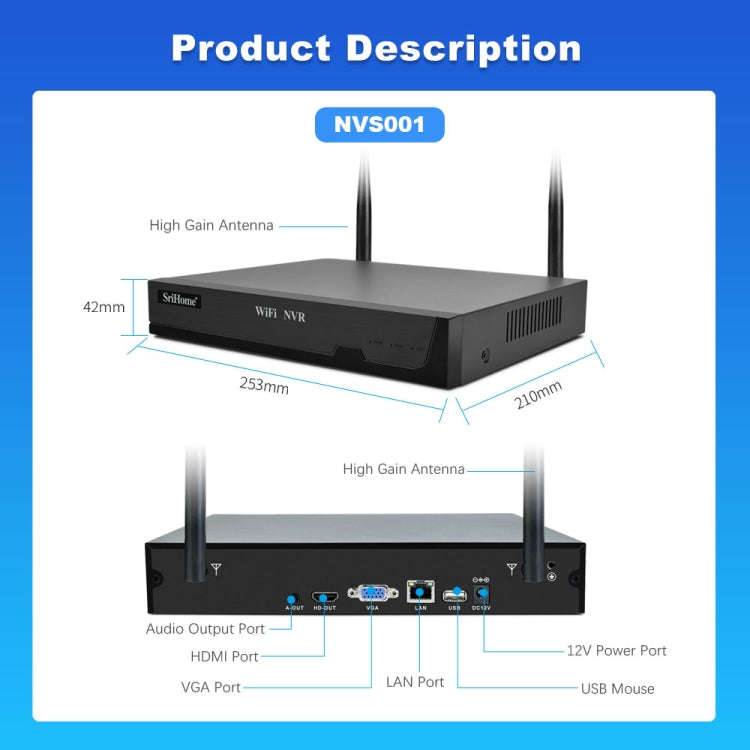

8. External interface:
Network interface: one RJ45 network interface
USB interface: 2 USB2.0
HDMI interface: 1
VGA interface: 1
Audio interface: 1 AUX audio output interface
Power interface: 1 DC 12V 2A (5.5x2.1x10)

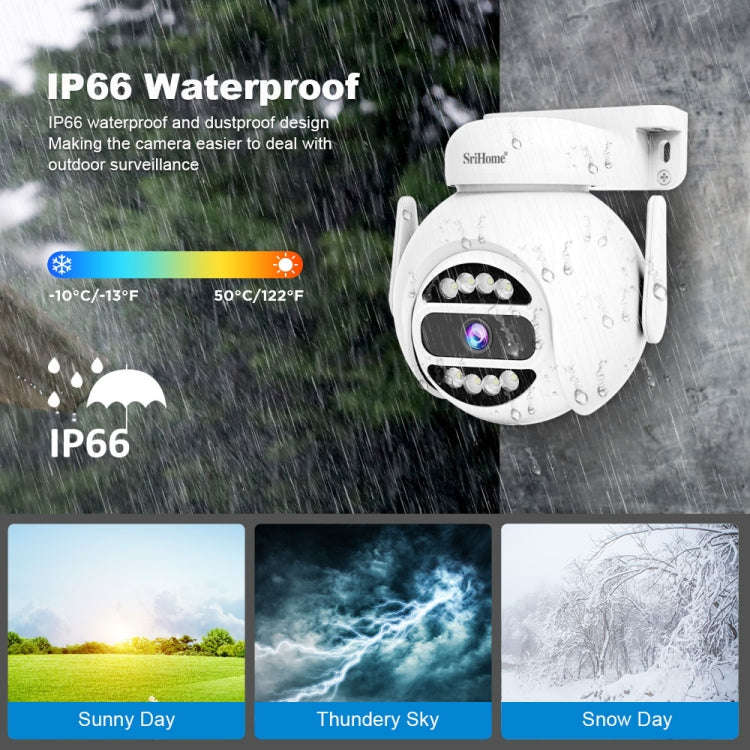

9. Working temperature: -10~50 degrees Celsius, working humidity: 10%~90% RH
10. APP: Support SriHome APP, IOS and Android remote access

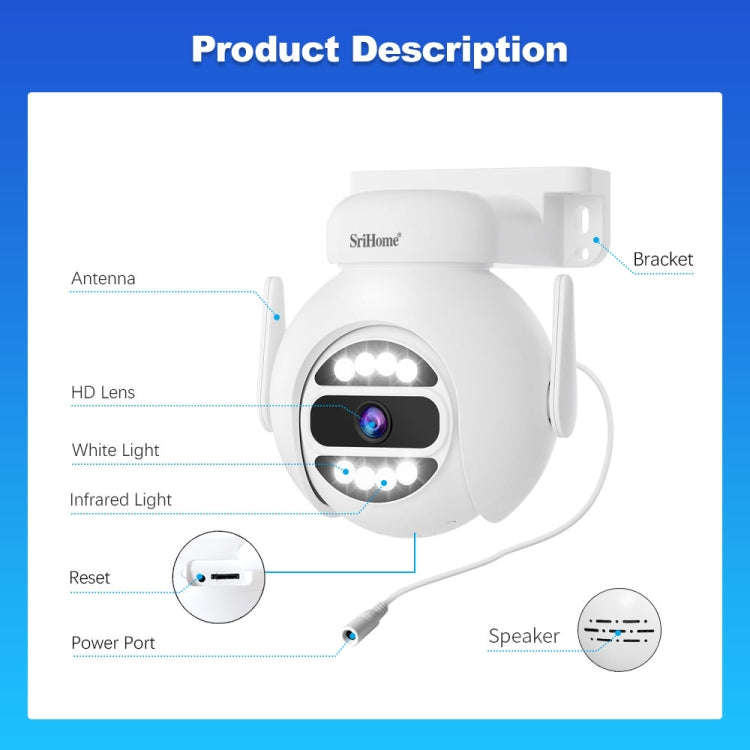

WiFi IPC parameters:
1. Model: IPC047(NVS001E)
2. System:
Main processor: multi-core high-speed processor
Sensor: 1/3 inch, 5 million high-definition color CMOS sensor
Compression format: H.265
3. Lens:
Lens parameters: Focal length: 4mm, 5 million pixels
Viewing angle: Field of view: D 110 H 80 V 58
4. Video:
Resolution: 1920P(2560x1920), VGA(480x360)
Frame frequency: 15 frames
Night vision mode: a. Alarm mode: The default is black and white night vision. When a human figure is detected, the white light will be automatically turned on and switched to full-color night vision. b. White light mode: White light will be used during the period from 17:00 to 8:00. The light will be on, the brightness is adjustable, and the night vision is full color
Infrared mode: Turn off the white light and switch to normal night vision
IR-Cut: Built-in IR-Cut, no color cast indoors and outdoors, good night vision effect
5. Audio:
Audio: built-in microphone and speaker, supports two-way voice
Protocol: G711
6. PTZ:
Tracking: supports humanoid tracking
Rotation angle: horizontal: 355 degrees, vertical: 90 degrees
7. Alarm:
Alarm: motion detection alarm, humanoid alarm
Siren: Alarm whistle can be set
Area detection: Supports customizing motion detection alarm areas to improve alarm accuracy
8. Wireless:
Wireless: 2.4G (only connected to NVS010 host)
Network distribution mode: QR code network distribution, button network distribution

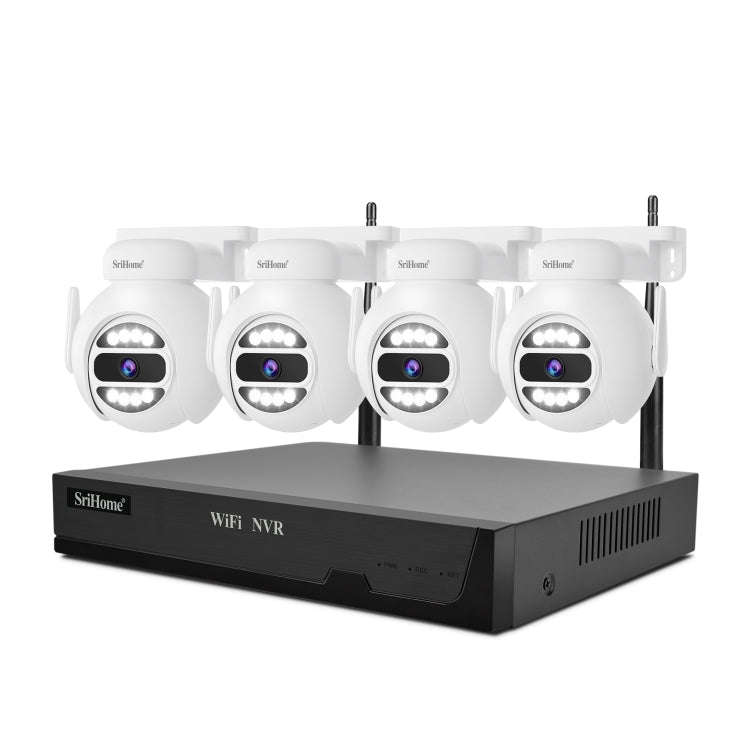

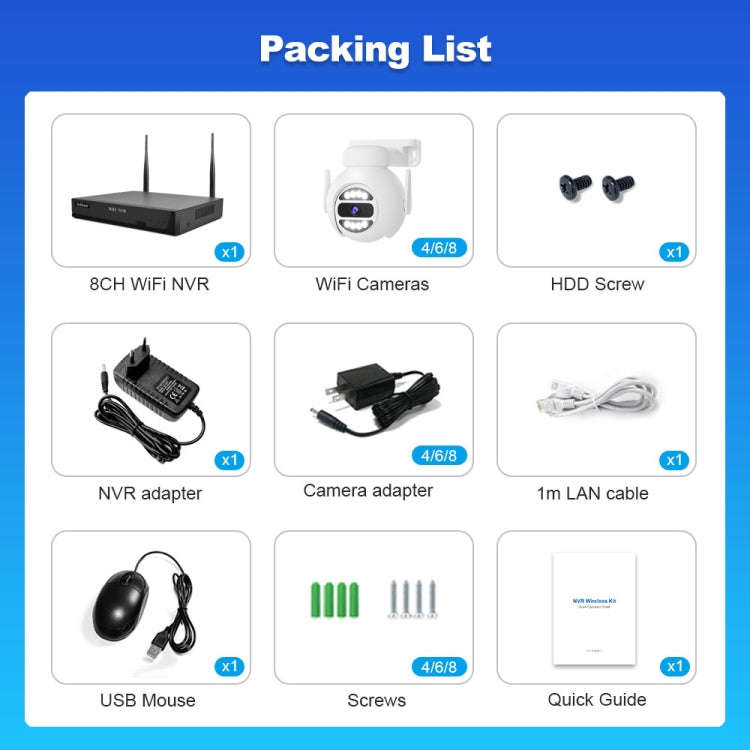

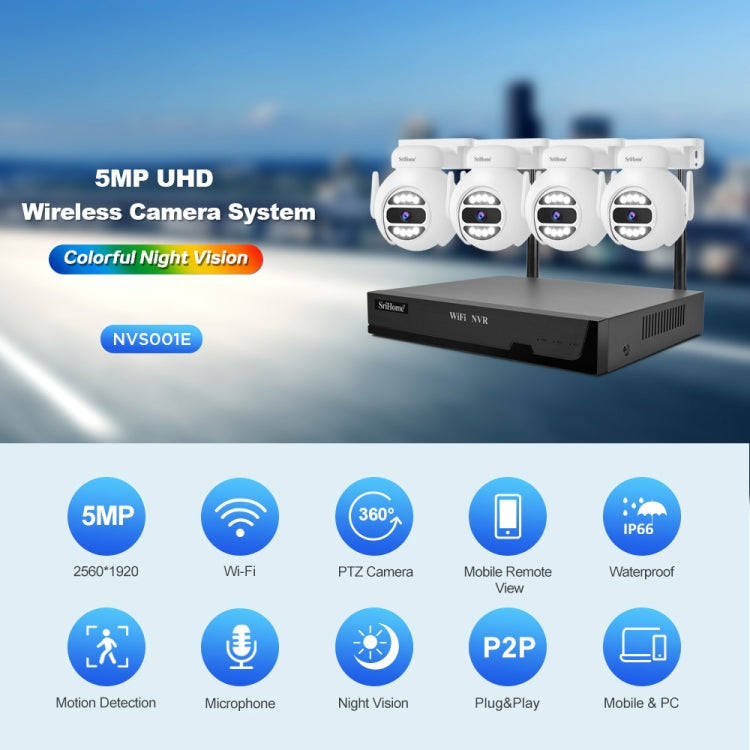

Set list
1. NVS001E host x 1
2. Wireless camera x 4
3. Power adapter 12V2A power supply (NVR) x 1, 12V0.5A power supply (camera) x 4
4. Screw pack x 5
5. Instruction manual x 1
6. Network cable x 1
