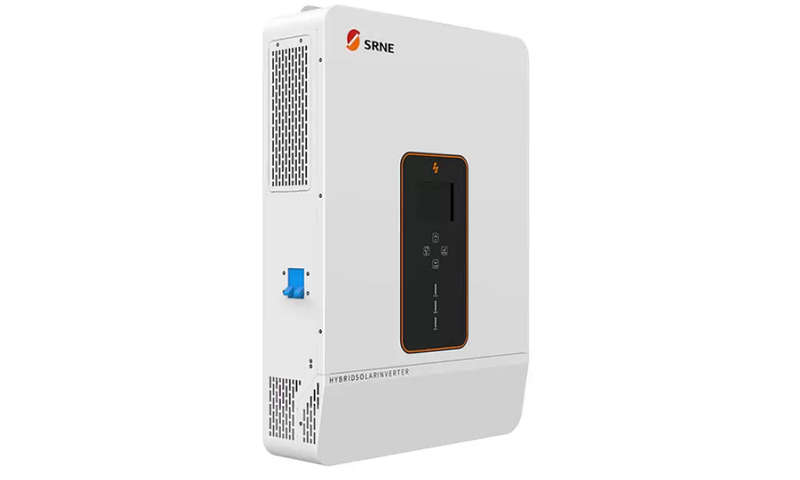

SRNE: Inverter 10KW Off Grid – VOC: 500VDC Battery: 48V PV: 5500W + 5500W

Efficient

• Dual MPPT with up to 99.9% efficiency
• Up to 22A PV input current perfect for high power modules

Reliable

• Outputs high quality pure sine wave AC power
• 8-10kW load power to meet the needs of most households

User-friendly

• Industrial design with a modern aesthetic look
• Easy to install and simple to use

Safety

• 360 degrees of security from hardware to software

• EU and North American safety approvals

All-in-one

• Solar Charger Controller up to 200A charging current
• Support for Li-ion battery BMS communication

Intelligent

• Exclusive Li-ion battery BMS dual activation
• Time-slot function to save cost with peak-valley tariff

Rated Output Power: 10,000W
Max.Peak Power: 20,000W
Rated Output Voltage: 230Vac（L1/N/PE single-phase）
Load Capacity of Motors: 6HP
Rated AC Frequency: 50/60Hz
Waveform: Pure Sine Wave
Switch Time: 10ms（typical）
Battery Type: Li-ion / Lead-Acid / User Defined
Rated Battery Voltage: 48Vdc
Voltage Range: 40-60Vdc
Max.MPPT Charging Current: 200A
Max.Mains/Generator Charging Current: 120A
Max.Hybrid Charging Current: 200A

PV INPUT
Num. of MPP Trackers: 2
Max.PV array power: 11,000W
Max.input current: 22/22A
Max.Voltage of Open Circuit: 500Vdc
MPPT Voltage Range: 125-425Vdc

MAINS / GENERATOR INPUT
Input Voltage Range: 90-270Vac
Frequency Range: 50/60Hz
Bypass Overload Current: 32A

EFFICIENCY
MPPT Tracking Efficiency: 99.9%
Max. Battery Inverter Efficiency: 92%

GENERAL

Dimensions
620*435*130mm（2*1.4*0.4ft）
Weight: 21kg（44lb）
Protection Degree: IP20，Indoor Only
Operating Temperature Range: -15~55,>45 derated（5~131，>113 derated）
Noise: <60dB
Cooling Method: Internal Fan

Warranty: 2 Years

COMMUNICATION
Embedded Interfaces: RS485 / CAN / USB / Dry contact
External Modules （Optional）: Wi-Fi / GPRS

• 2-Years Warranty
