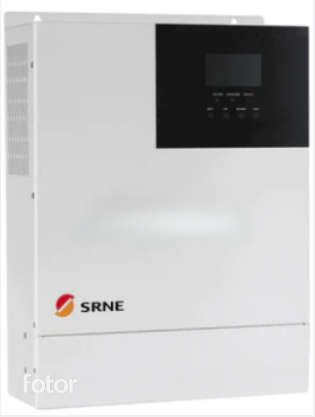

SRNE SOLAR HYBRID INVERTER 3000W 24V MAX CHARGING CURRENT 60A

The SRNE 3KW Inverter is an efficient and reliable power source for various small and large applications. It offers a maximum efficiency of up to 98% and excellent overload capabilities to ensure maximum performance. Heat dissipation is optimized thanks to its innovative cooling system. Installation is easy and reliable for any level of user.

DESCRIPTION

AC Mode
Rated Input Voltage: 230VAC
Input Voltage Range: 90VAC to 280VAC
Frequency: 50Hz / 60Hz (Auto detection)
Overload / Short Circuit Protection: Circuit Breaker
Efficiency: >95%
Conversion Time: 10ms
Maximum Bypass Overload Current: 30A

Inverter Mode
Output Voltage Waveform: Pure Sine Wave
Rated Output Power: 3000W
Power Factor: 1
Rated Output Voltage: 230VAC
Output Frequency: 50Hz / 60Hz
Efficiency: >92%
Loaded Motor Capability: 2HP
Output Short Circuit Protection: Circuit Breaker
Bypass Breaker: 30A
Rated Battery Input Voltage: 24VDC (Min Start Voltage of 22VDC)
Battery Voltage Range: 20VDC 33VDC

AC Charging
Battery Type: Lead Acid / Lithium
Maximum Charging Current: 80A
Charging Voltage Range: 20VDC to 33VDC
Short Circuit Protection: Circuit Breaker and Blown Fuse
Circuit Breaker: 30A

PV Charging
Maximum PV Open Circuit Voltage: 100VDC
PV Operating Voltage Range: 30VDC to 100VDC
MPPT Voltage Range: 30VDC to 85VDC
Maximum Input PV Power: 1400W
PV Charging Current Range: 0A to 60A (Adjustable)
Charging Short Circuit Protection: Blown Fuse
Wiring Protection: Reverse Polarity Protection

Environment Limit
Ingress Protection: IP20
Operating Temperature Range: -15C to +55C
Humidity Range: 5% to 95% (Conformal Coating Protection)
Cooling: Forced Air Cooling, Variable Speed Fan (<60dB)
Communication: USB / RS485(WIFI/GPRS) / Dry Node Control

2 Years Warranty
