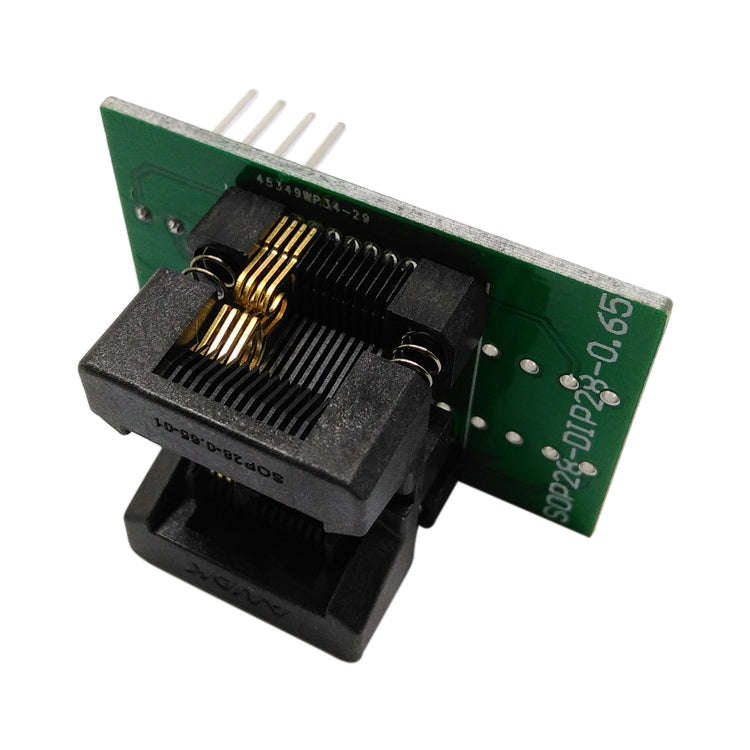

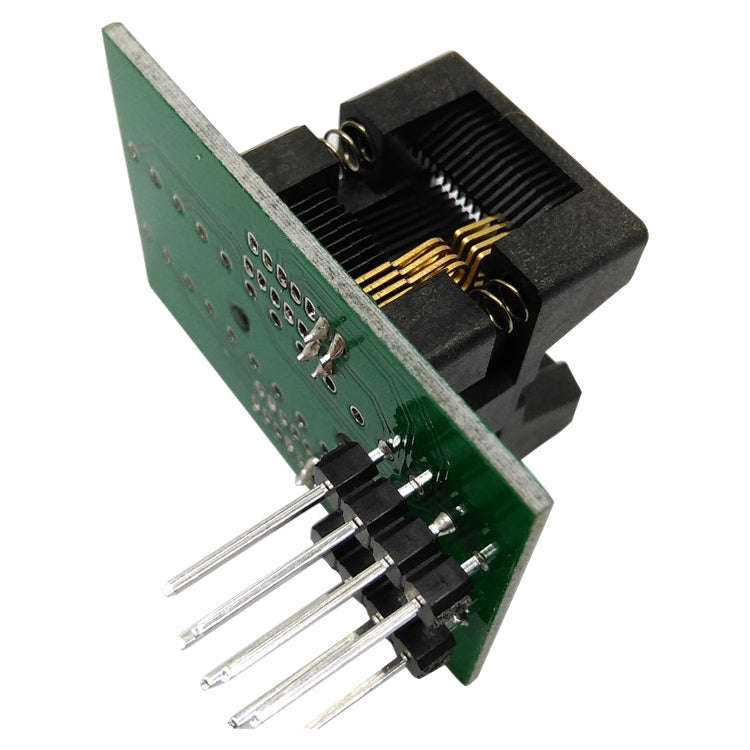

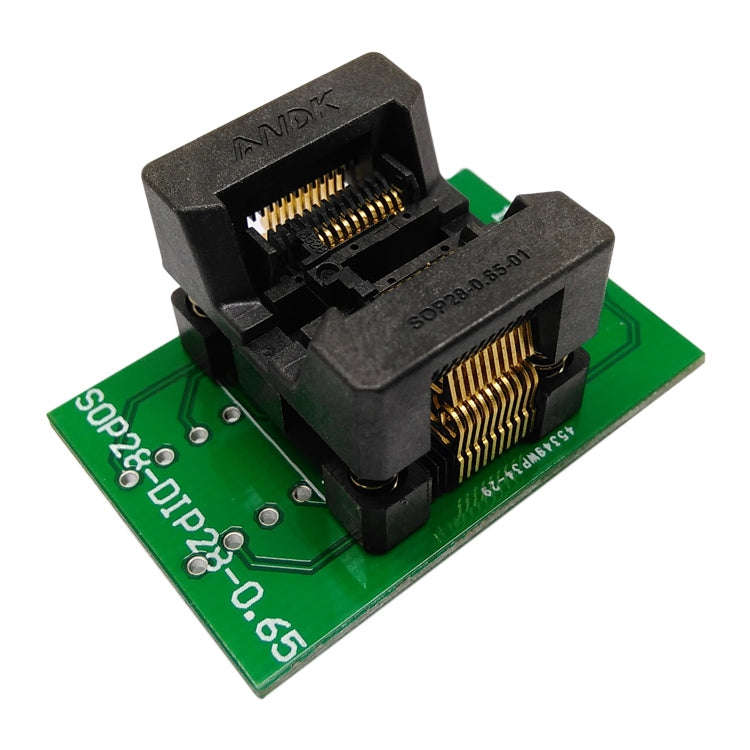

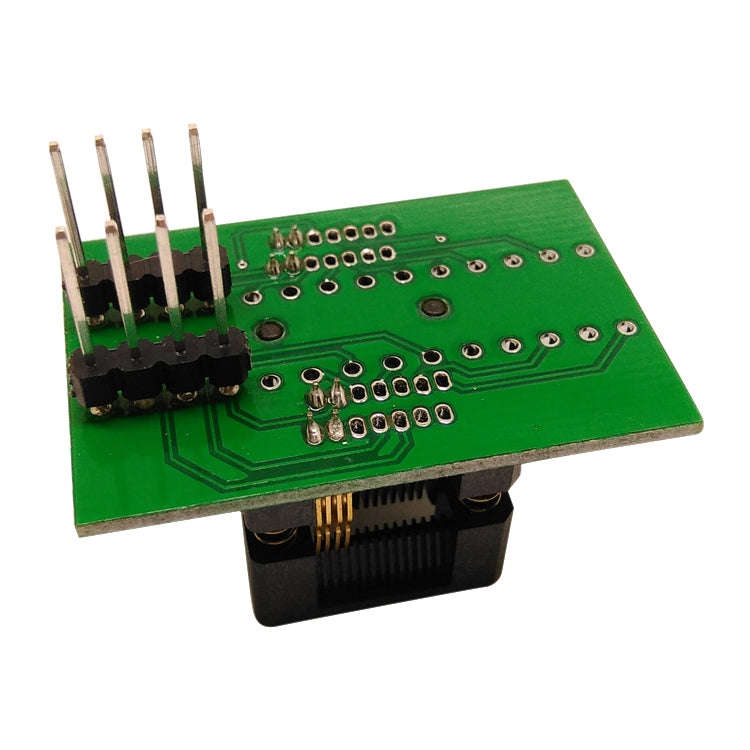

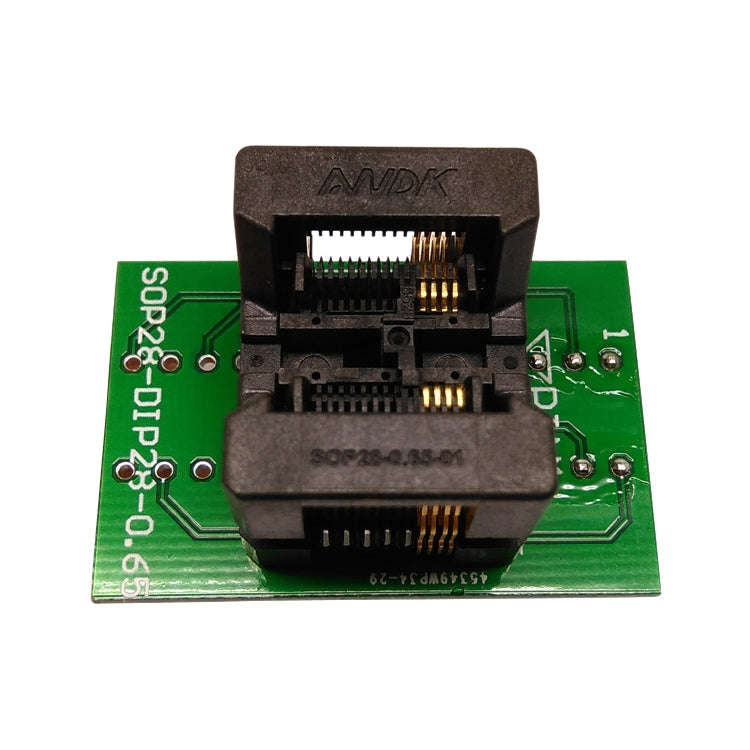

SSOP8 OTS-28-0.65-01 Chip Adapter Socket
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 15 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
TBD05541240
Bob Shop ID
611363773
Features:
1. Using double contact technology, the contact is more stable;
2. The seat shell is made of special engineering plastic, which has high strength and long life;
3. The shrapnel adopts imported beryllium copper material, which has low impedance and good elasticity;
4. Thick gold-plated layer, thick electroplating of contacts, ultra-low contact impedance and high reliability;
Product performance:
1. Material: insulator PEI, PPS; shrapnel, beryllium copper Be Cu Gold plating (30u), Over Nickel plating (50u)
2. Insulation resistance: 1000mohm, At DC 500V
3. Withstand voltage: 700AC/1Minute
4. Contact impedance: less than 25mohm
5. PIN foot elasticity: 55g/PIN(Normal)
6. Working temperature: minus 65-155 degrees Celsius
7. Specifications and dimensions: pin spacing: 0.65 mm, pin position: 8, adaptable chip body width: 4.4 mm
