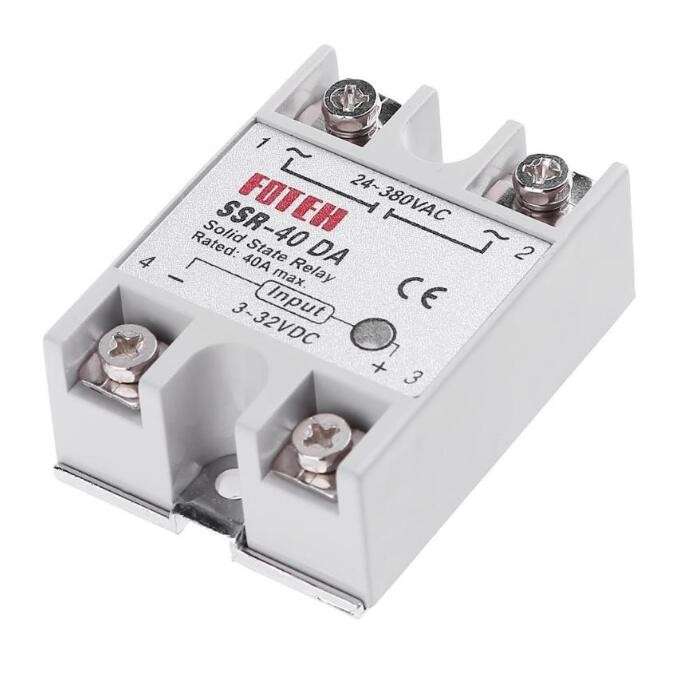

SSR-40DA SSR Solid State Relay Module

The SSR-40DA SSR Solid State Relay Module is a non-contact high speed switching device that has a range of features focused on reliability and user safety, and is designed to use a lightweight DC voltage to safely switch high-voltage and high current circuits without exposing the user to potential leaks. This SSR-40DA Terminal Type unit uses a Zero Cross Trigger control method to control between 24V and 380V AC circuits, which would typically cause serious damage to users if a leak or fault occurs. This not only protects users from electrical harm, but also allows for devices and machinery to be operated remotely.

Unit Model — SSR-40DA Terminal Type
Input Voltage — 4V to 32V DC
Control Voltage — 24V to 380V AC
Rated Load Current — 40A
Minimum ON/OFF Voltage — ON > 2.4V / OFF < 1.0V
Operating Temperature — -40 to +80C
Trigger Current — 12mA max.
Control Method — Zero Cross Trigger
Response Time — 8.3ms (60Hz)
Dielectric Strength — Over 2KVAC / 1min
Isolation Strength — Over 100M / 500VDC
