Features:
1. The working frequency can be set at will, and the frequency range can be changed according to customer requirements (such as 75-85MHZ preset before leaving the factory)

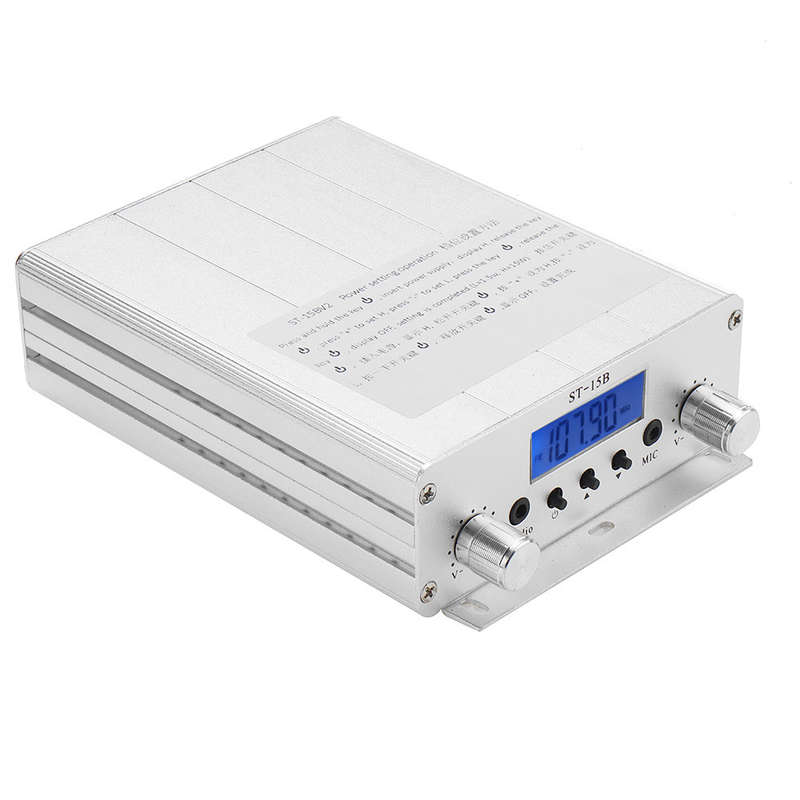

2. LCD liquid crystal display, blue background light
3. Audio input (Audio+Mic), two input volume can be adjusted
4. Automatically save the operating frequency, and automatically jump to the operating frequency before the last shutdown
5. PLL professional phase-locked loop, frequency is 100% without drift

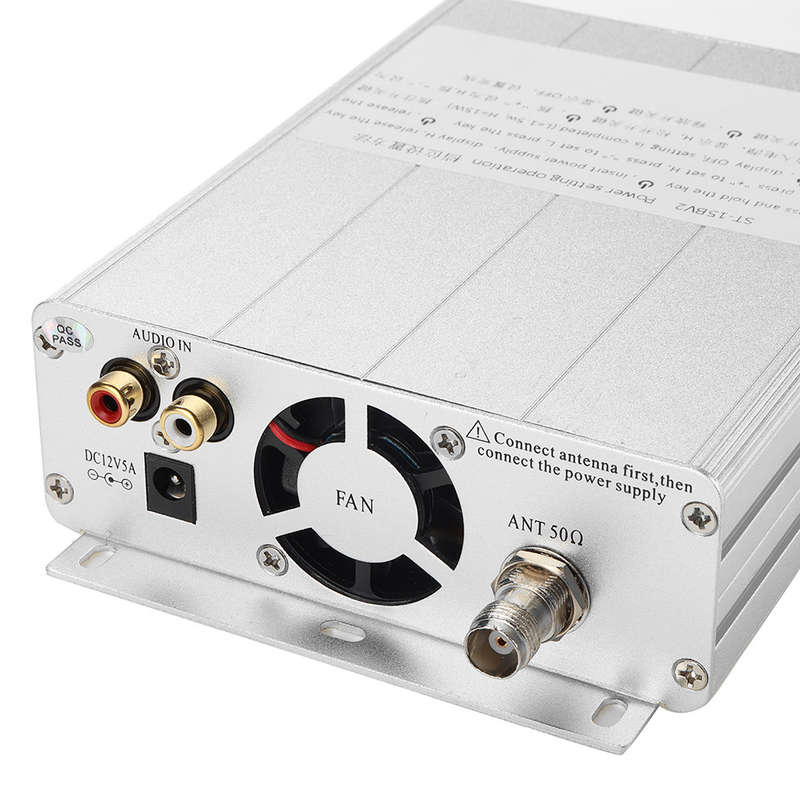

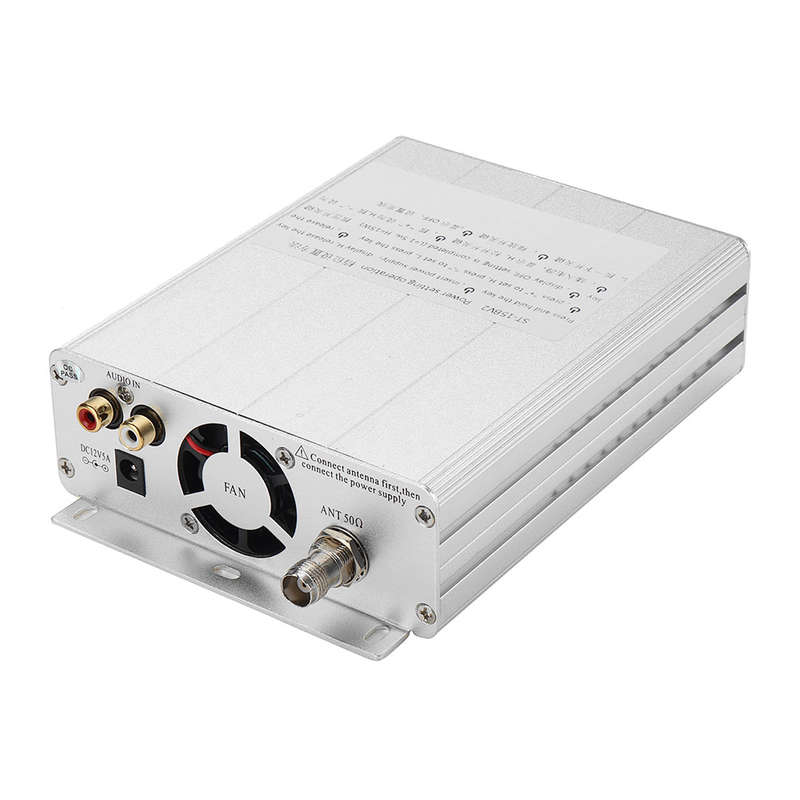

6. TNC/BNC Type antenna output
Specification:
Power supply voltage: 12V/5A
Frequency range: 87-108Mhz
Power: 1.5W/15W
Frequency step value: 100kHz
Frequency stabilization method: PLL phase-locked loop frequency synthesis
Frequency stability: ±10ppm (-10 C+60°C)
Modulation frequency deviation: ≤±75kHz (100%)
Working method: continuous work
RF output impedance/power: 50 ohms/15W
Reference range: 2Km—10Km (open ground)

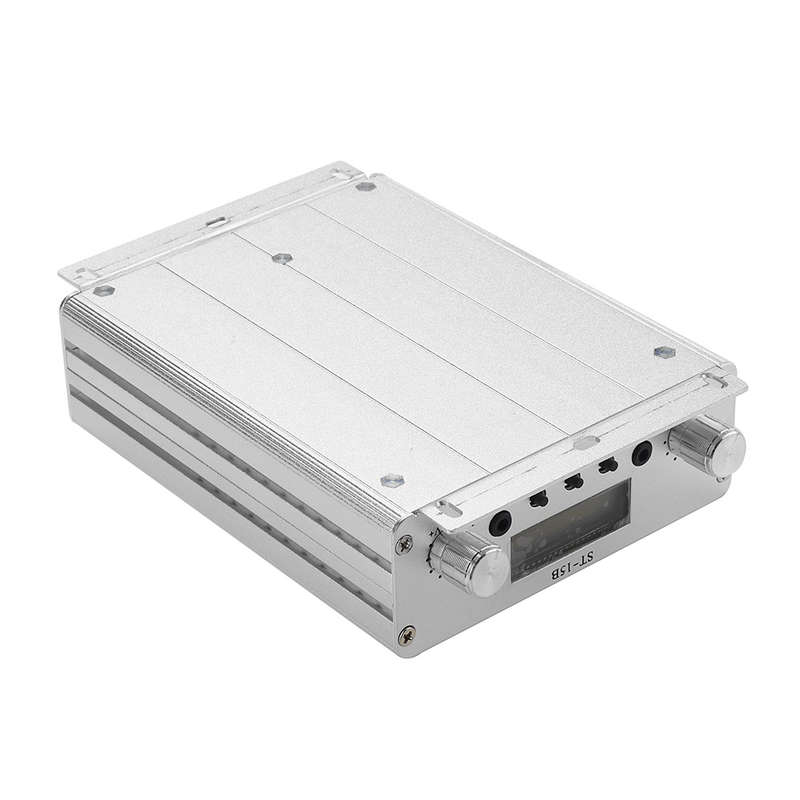

Machine size: length 180, width 120, height 45MM
Whole machine weight: 0.6kg
Package includes:
1 x FM transmitter

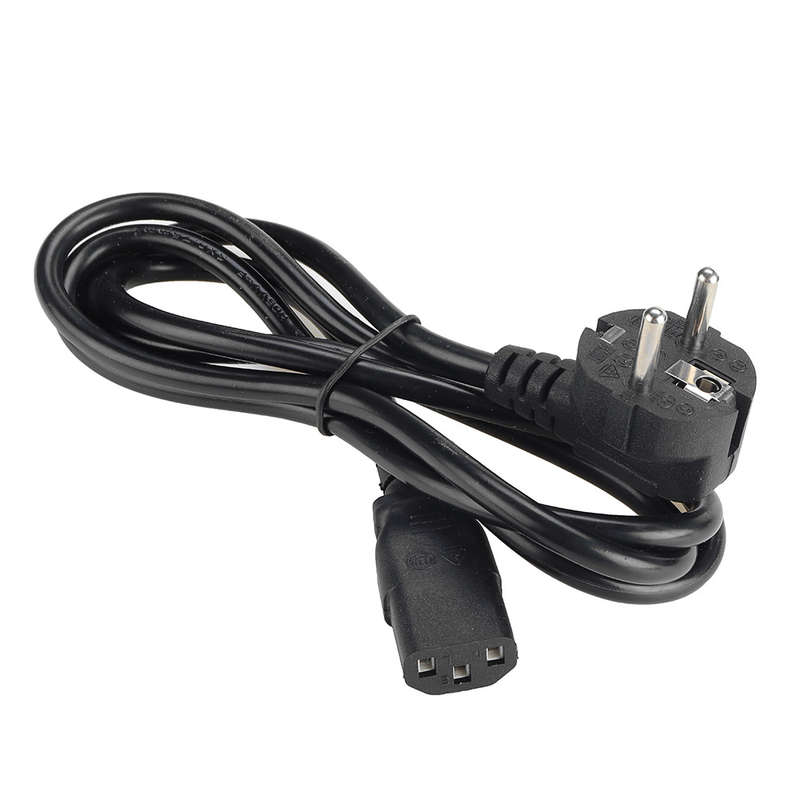

1 x Power supply(EU Plug)

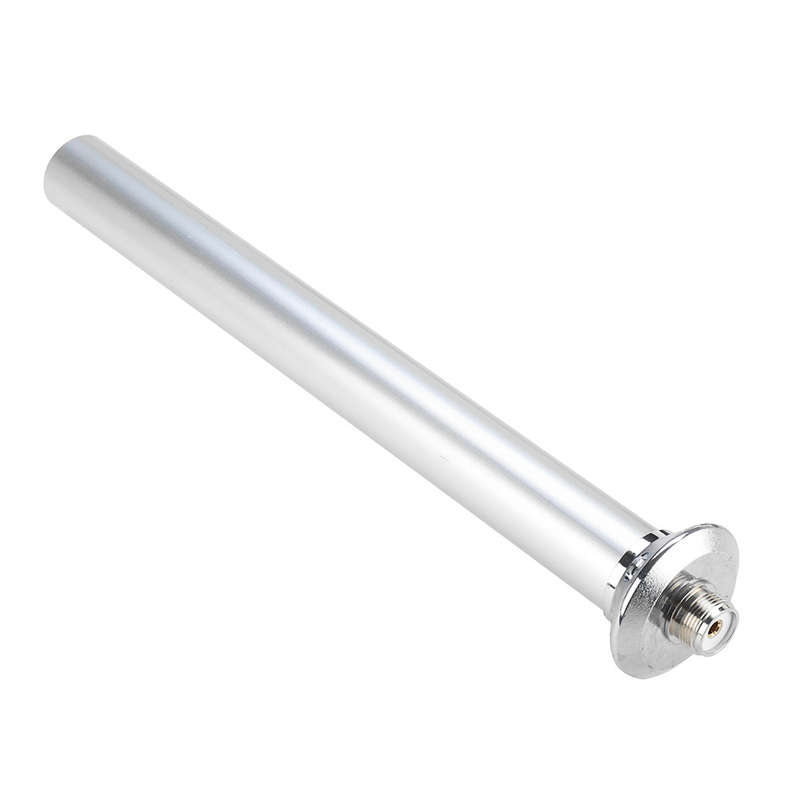

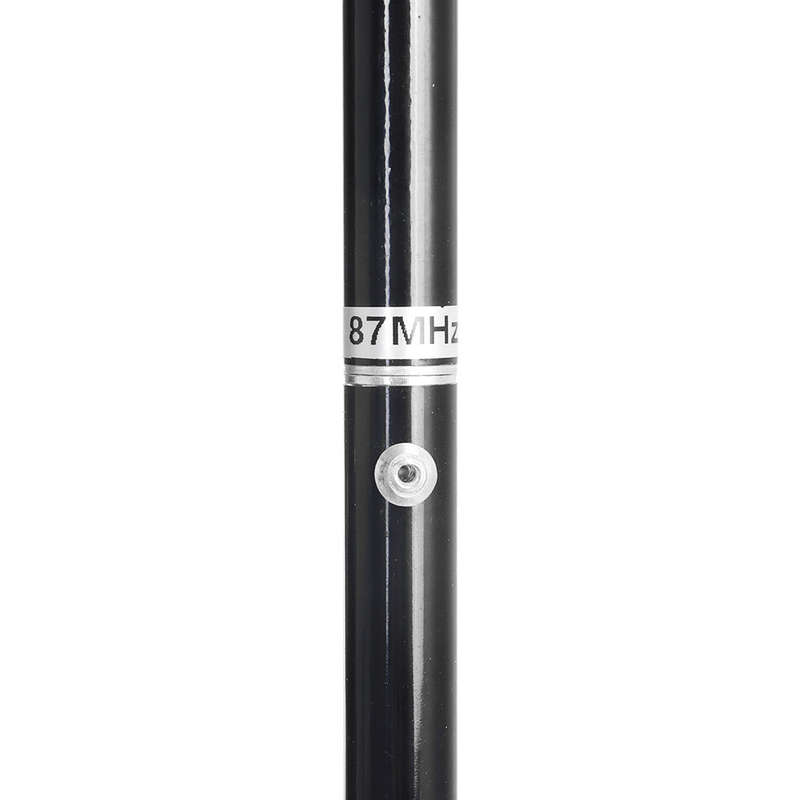

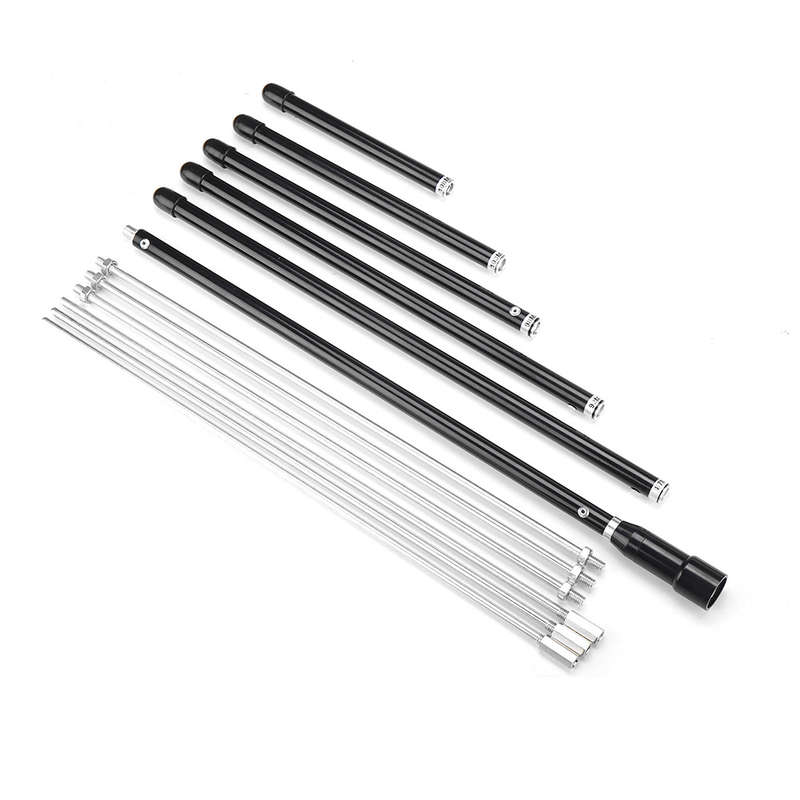

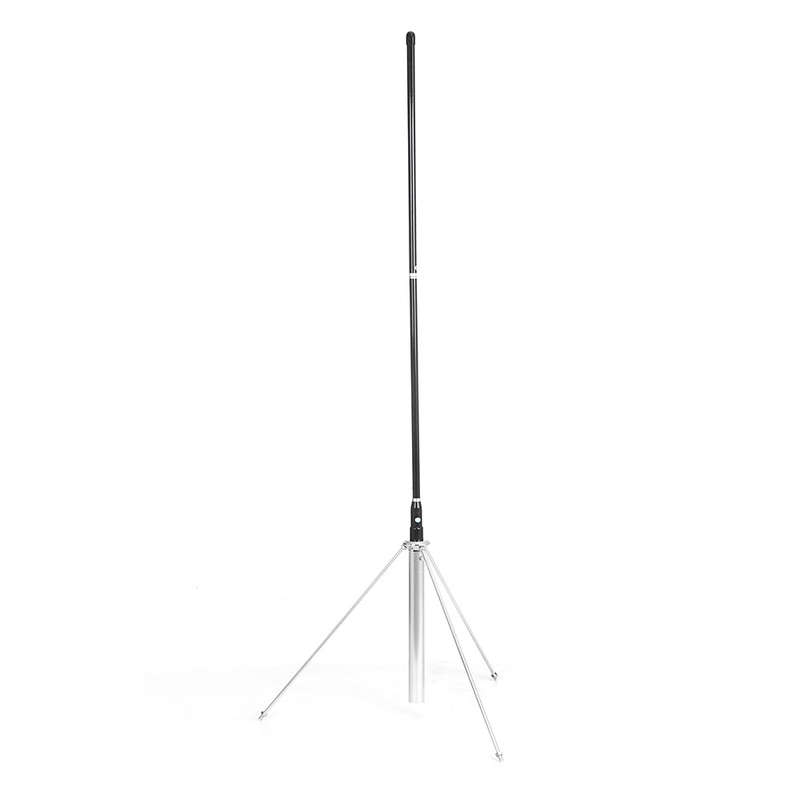

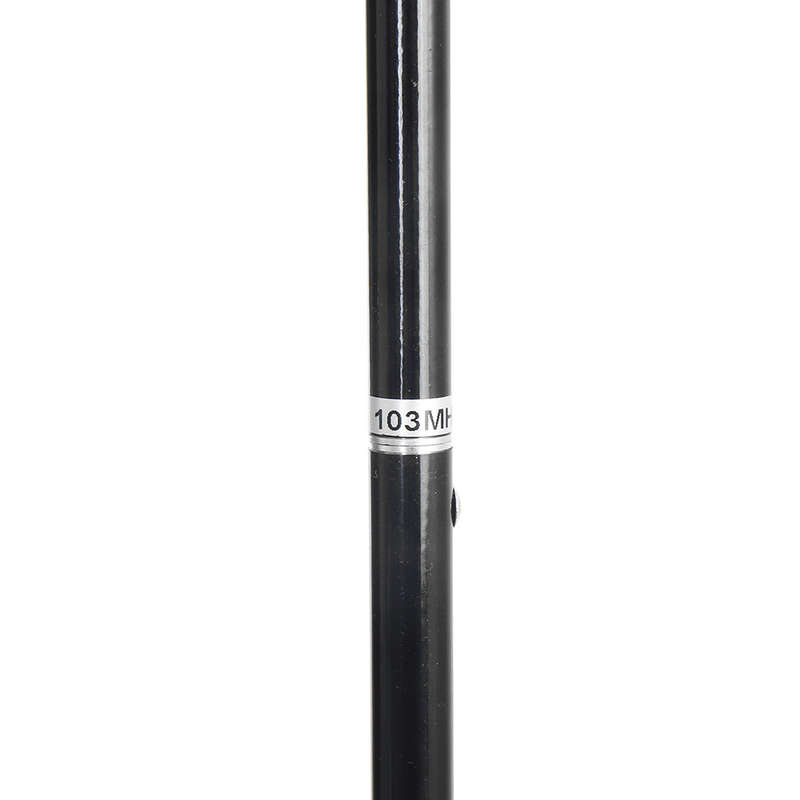

1 x GP antenna
1 x Audio line
1 x BNC/TNC Adapter(as gift,with this adapter the FM transmitter can compatible with BCN interface and TNC interface)

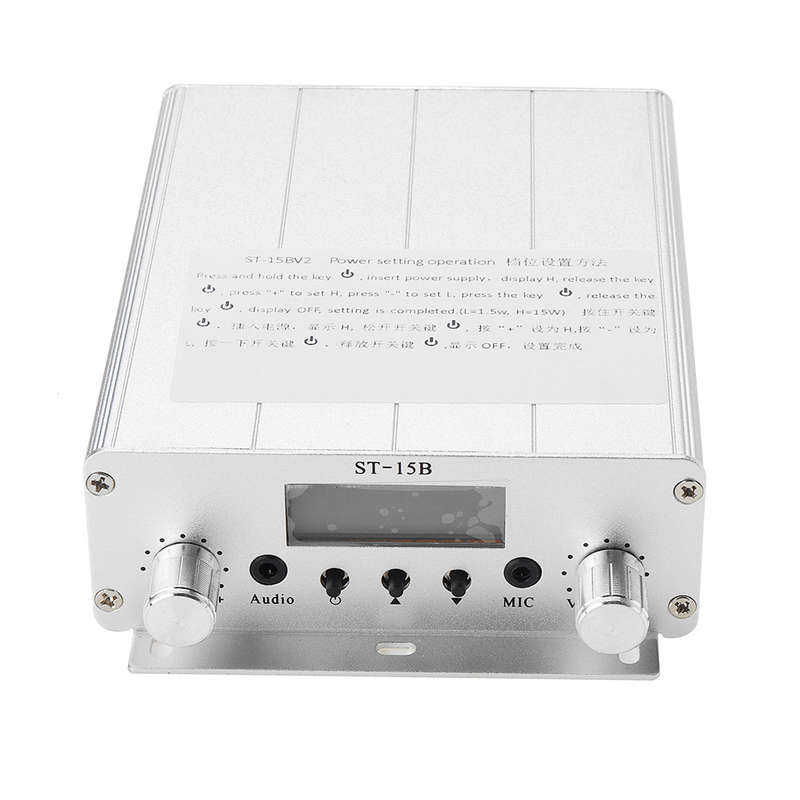

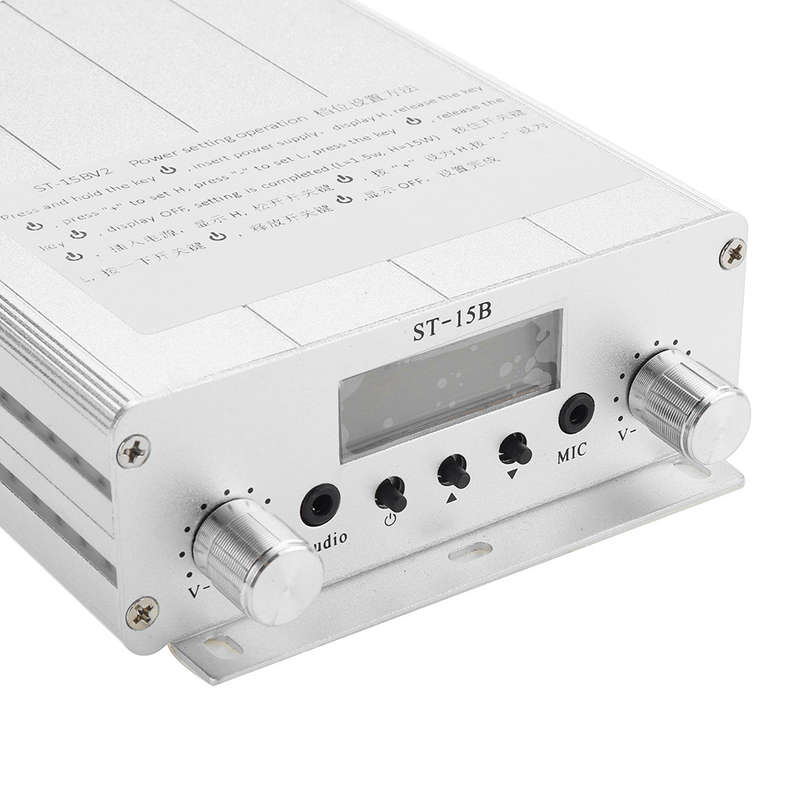

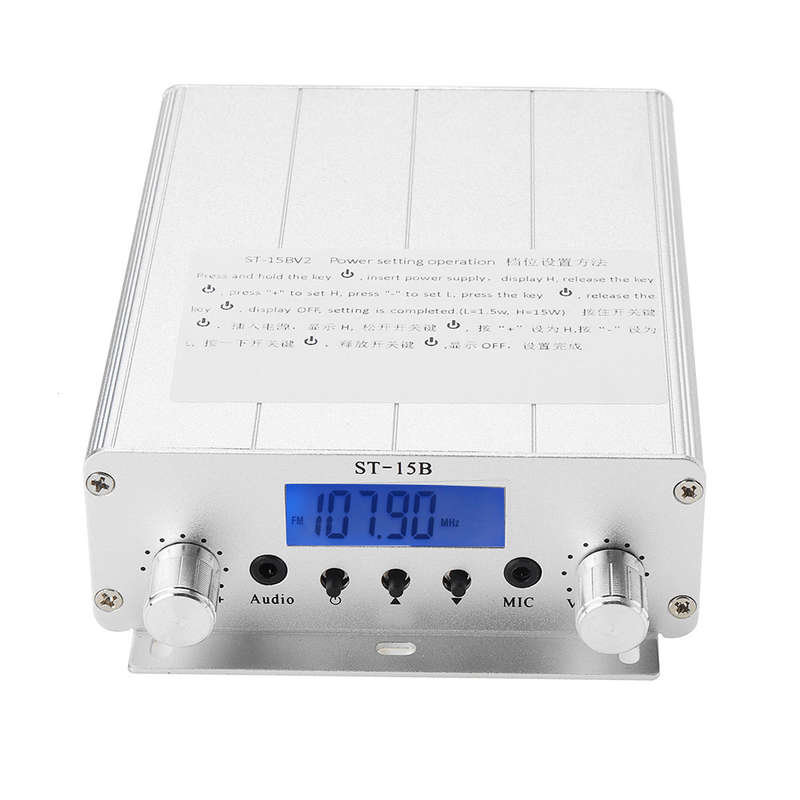

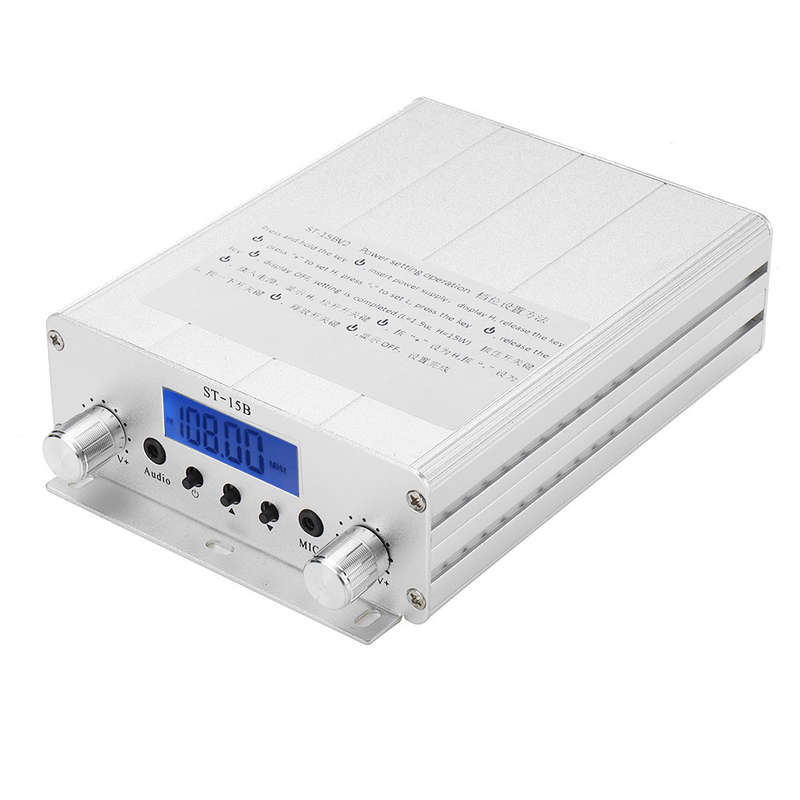

Details picture:
