Specification:

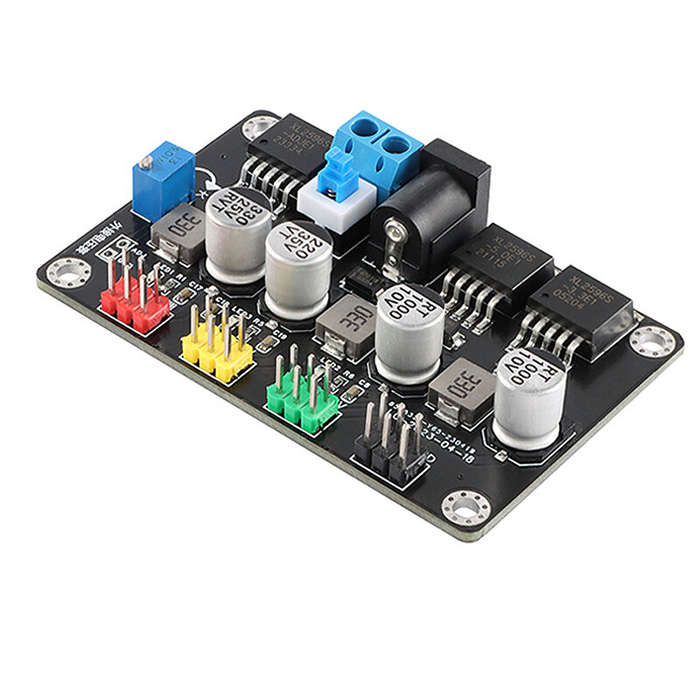

Model: YR-2596
Input: Direct current 7-30V
Output: 3.3V, 5.0V, ADJ adjustable voltage output
Maximum continuous load: 1.5A
Peak load: 2A
Size: 68mm*44mm
DC interface: 5.5*2.1mm
Features:

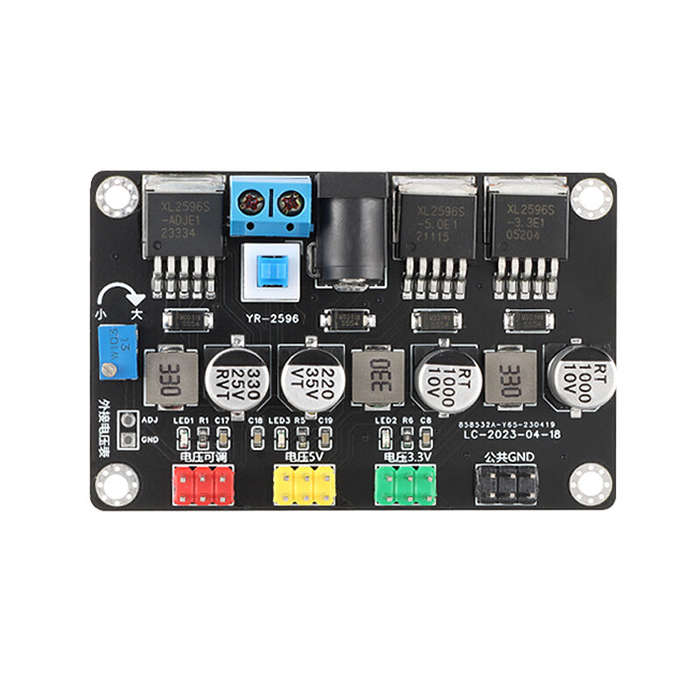

1. Triple output Channels: It provides 3.3V, 5.0V, and ADJ adjustable voltage outputs, with a continuous load of 1.5A and a peak load of 2A on each channel.
2. Efficiency and Stability: The module is efficient and reliable, offering a steady supply to your circuit under a maximum continuous load of 1500mA

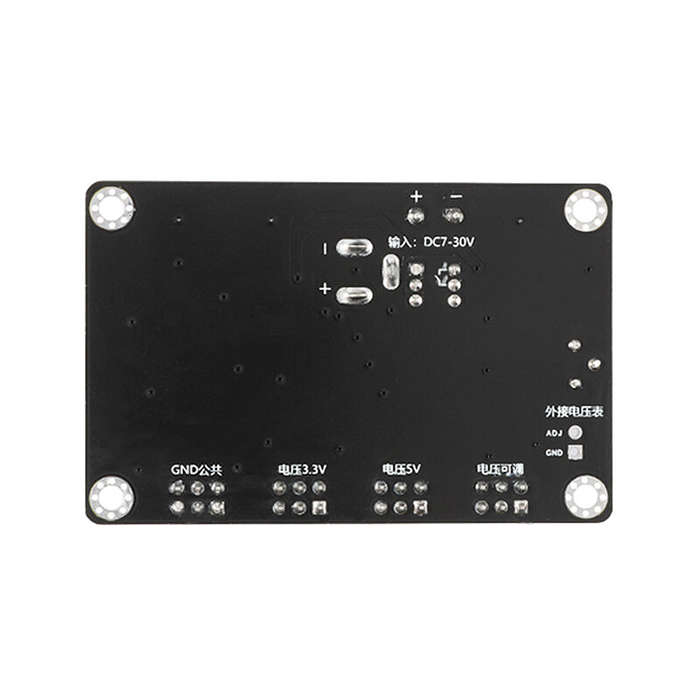

3. Two-Sided Board Design: The two-sided board design ensures a neat layout.
4. Easy Connect: The input-output uses several rows of pins, making it convenient to use and connect.
5. Three Power Indicator Lights: The inclusion of three power indicator lights (red) offer clear and intuiti
