Specification:
Brand: HAKRC

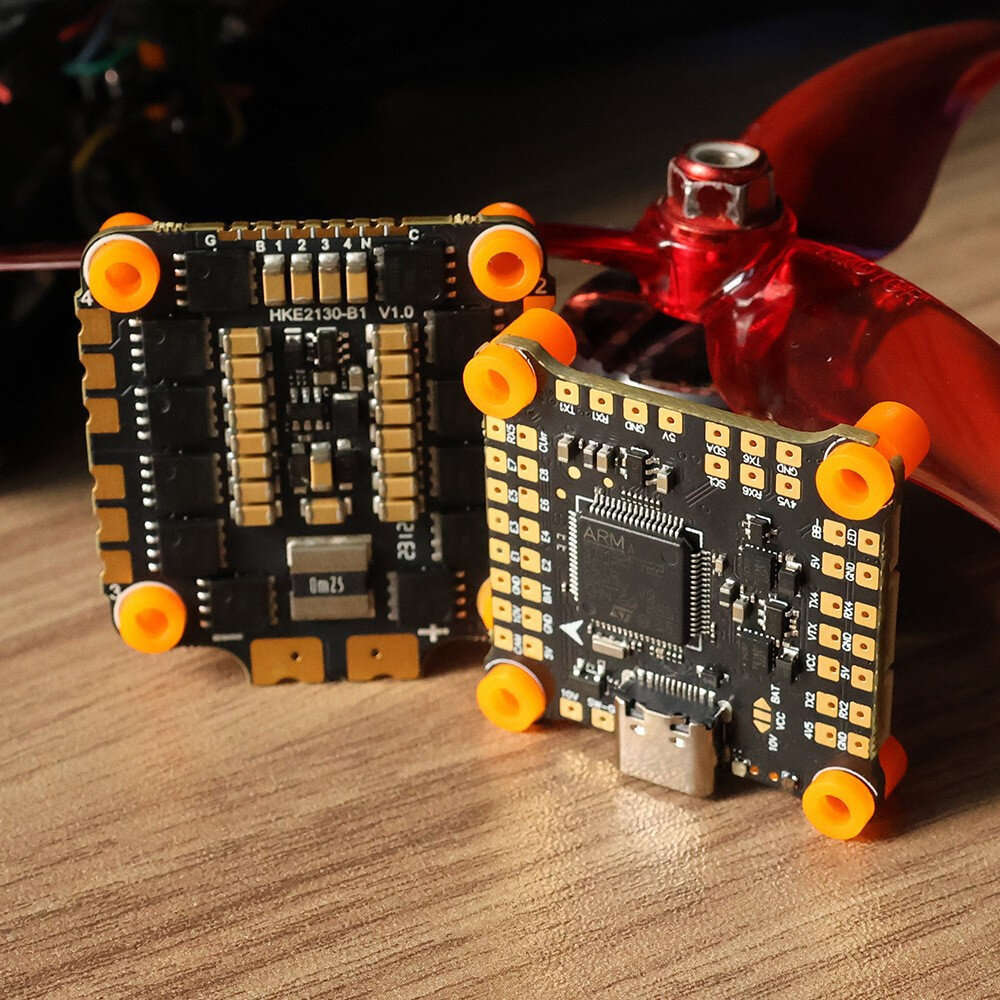

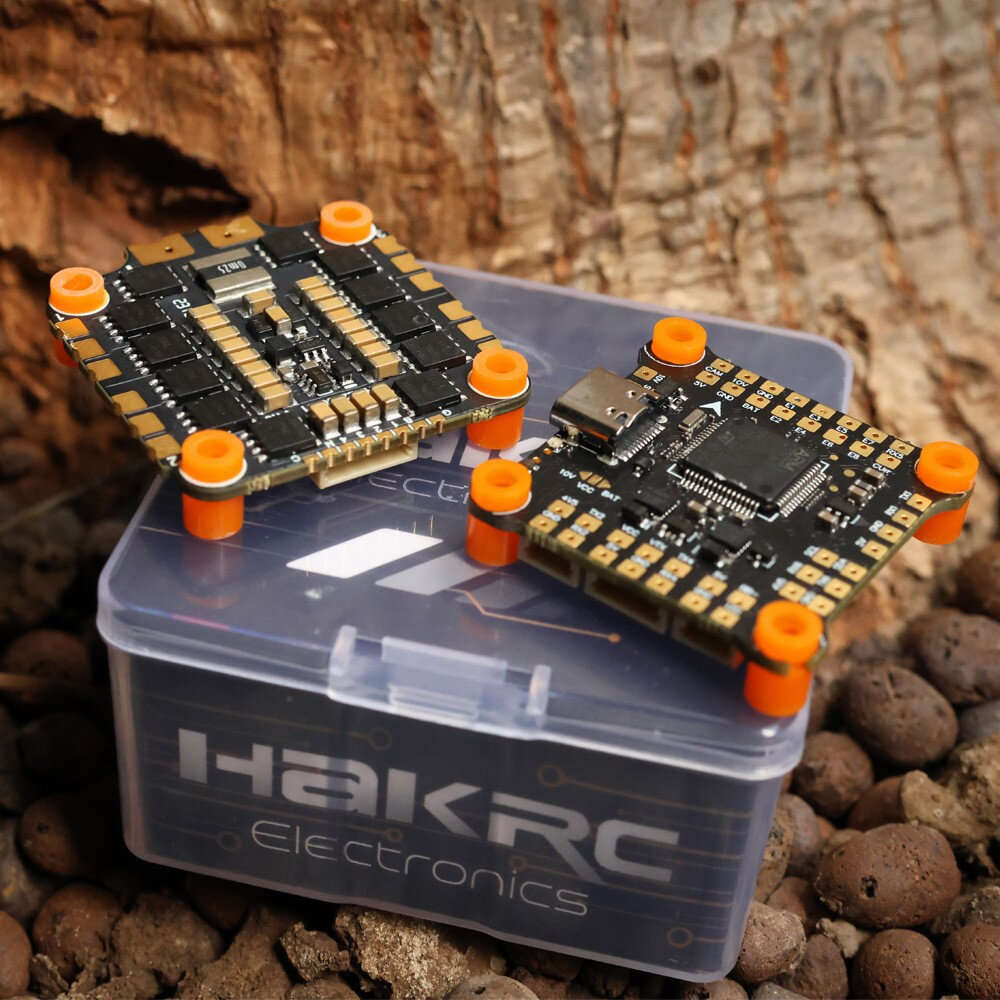

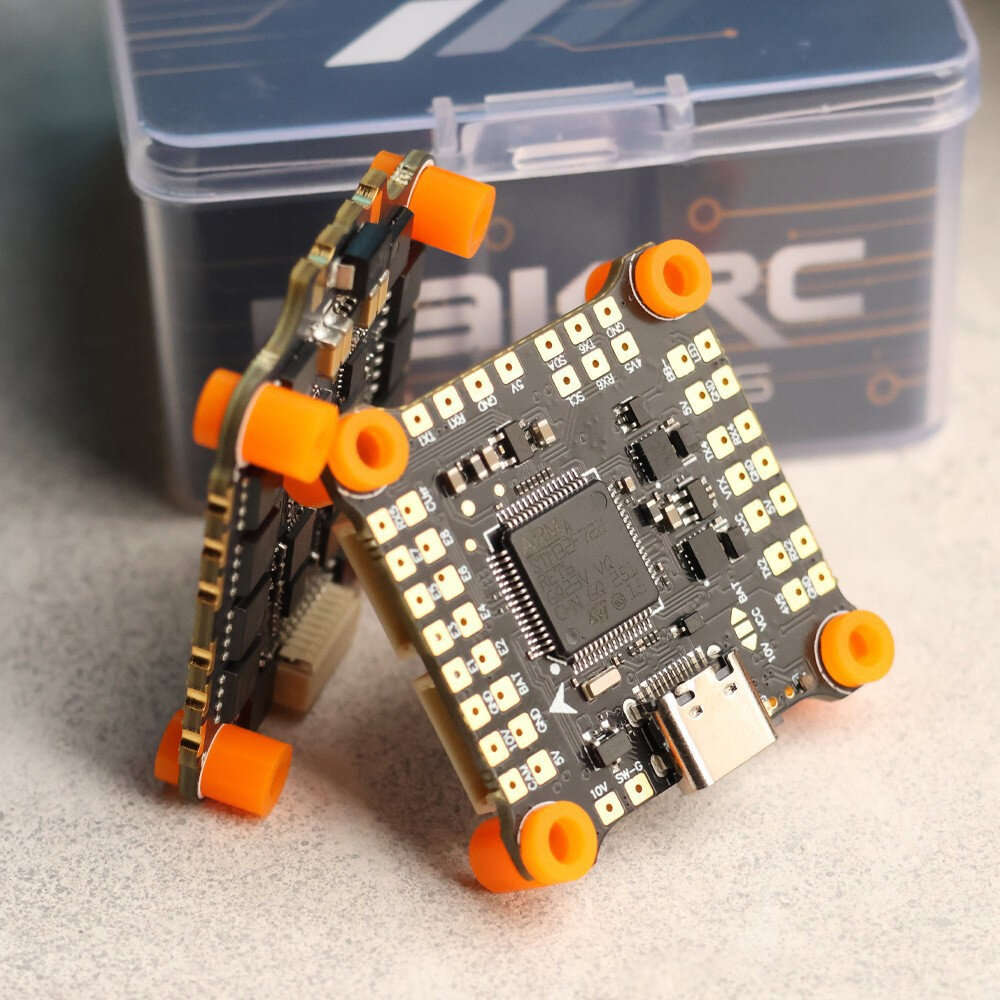

Model: F7230V2 FC 2130 50A 4in1 ESC Stack
| Model | Parameter |
| HAKRC F7230V2 Flight Controller | Size: 36 × 36mm (30.5mm × 30.5mm mounting holes) Package Size: ø64 × 64 × 35mm Weight (net): 8.5g Input Voltage: 2—6S Lipo CPU: STM32F722RET6 IMU: ICM42688 Dual Gyroscope OSD: AT7456E Storage: Integrated blackbox, 16M BEC: 5V/3A, BEC: 10V/2.5A LED: Controllable Transmission: Built-in current sensor Firmware: HAKRCF722V2 Receiver Supported: Frsky/Futaba/Flysky/TBS Crossfire/DSMX DSM2 receivers |
| HAKRC 2130 50A 4-in-1 ESC | Size: 40 x 41mm (30.5mm x 30.5mm mounting holes) Package Size: ø64 x 64 x 35mm Weight (net): 12.5g Firmware: BLHeli-S 16.7 Input Voltage: 2—8S Lipo ESC Ratio: 160 Continuous Current: 50A Burst Current: 60A Signal Protocols Supported: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600 |
Package Included:
1x HAKRC F7230V2 Flight Controller
1x HAKRC 2130 50A 4-in-1 ESC
8x M2 Orange Vibration Damper
1x 8-pin Cable
1x DJI FPV Connector Cable
4x Black Nuts
1x Capacitor (35V 470uf)
1x 4-pin Receiver Cable
2x 4-pin Connector Cable
1x XT60 Power Connector
1x Red and Blue Power Cable
4x (M3 x 25mm)Screws
